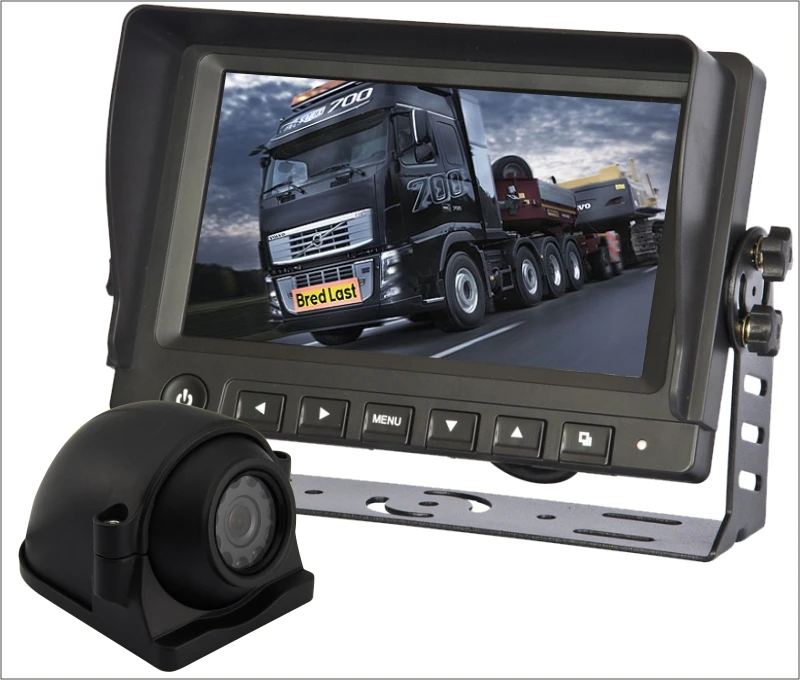

7" Digital TFT LCD Color Screen Rearview Monitor System for Heavy Duty Equipment
| 7 inches Digital Screen TFT LCD Color Monitor(Model:SP-760) |
| 7"Digital Screen TFT LCD Color Monitor with Removable Sun Visor |
| Support Tow-Channel Video Input |
| Camera1 Trigger Priority |
| OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-30s |
| OSD MENU Separately Set Each Camera Mirror/Normal image |
| Manual and Automatic Switch Display Mode |
| Color System:PAL/NTSC (AUTO) |
| Display Resolution: 2400(H) X 480(V) dot |
| Support Three Camera Video Inputs:1.0Vp-p75Ω |
| Wide view angle(CR>10):(up/ down): 45/65 (left/right): 65/65 |
| Brightness (cd/m2): 400( Automatically Adjust Environment by According) |
| Contrast ratio: 500:1 |
| Brightness (cd/m2): 400( Automatically Adjust Environment by According) |
| Operating temperature: -20℃ to +70℃ |
| Storage temperature: -30℃ to +80℃ |
| Load Dump:DC14+87V(Td400mS) 5pulses |
| Free Operating Voltage DC11-32V |
| External dimensions:L*W*T(199X128X28)mm(without mounting) |
| Weight Approx: 379g |
| Aluminum Shell Side CCD Camera(MODEL:DF-8033) |
| Image Type: 1/3 Inch Color CCD |
| Horizontal Resolution:600TV Lines |
| Effective pixel:PAL: 920L×582V NTSC: 940L×494V |
| Usable Illumination : 0Lux ( Built in IR LED"s for Picture Support in the Dark) |
| Free viewing angle: 130° |
| Waterproof: IP69k |
| Shockproof: 10G |
| Video Output:1.0Vp-p75Ω |
| Power supply:DC12V (from Reversing Monitor) |
| DF-8033 Dimensions: 75(W) x 60(H) x 90(D) mm |
| Product Accessories |
| U- Support Bracket,Angle Adjustment Screw,Removable Sun Visor,Electrical Connecting Cable,15m cable, Auto cigarette lighter,User"s Manual |
