Home > Products > CE RoHS Listed Industrial T8 dual tube 36W LED explosion-proof lamp

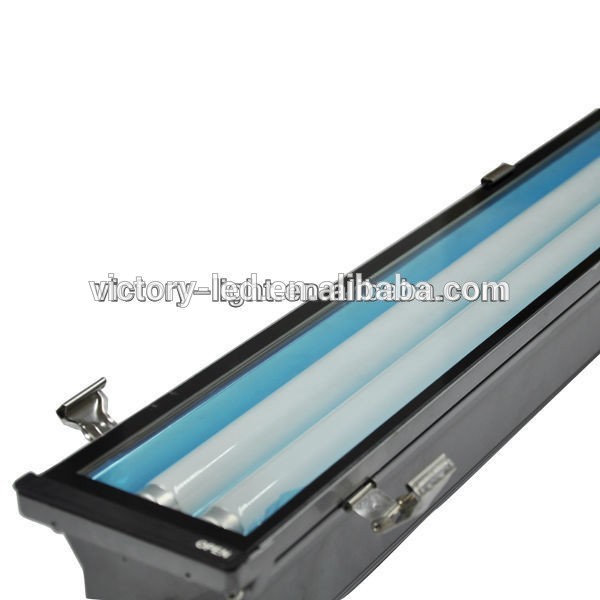

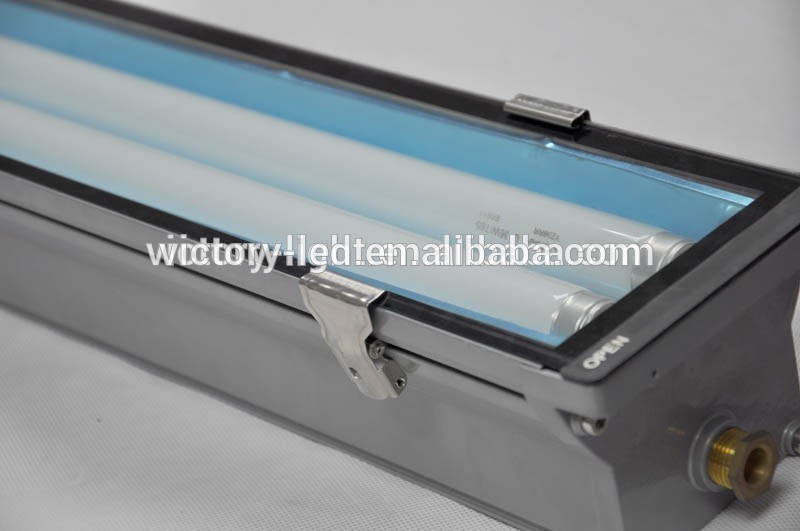

CE RoHS Listed Industrial T8 dual tube 36W LED explosion-proof lamp
Click on the image to view the original image
Product： views：5CE RoHS Listed Industrial T8 dual tube 36W LED explosion-proof lamp
Branch： Victory
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 17:38
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC85-265V
Lamp Power(W):
36
CRI (Ra>):
85
Lamp Luminous Flux(lm):
3600
Working Lifetime(Hour):
50000
Working Temperature(℃):
-20 - 50
Place of Origin:
Guangdong, China
Brand Name:
Victory
Model Number:
WY5200A
size:
1275x125x95mm
Weight:
4.8kg
Power Factor:
>0.95
Lumens:
90-110 lm/W
Warranty:
2 Years
PC Cover:
Clear/Stripy/Frosted
Explosion-proof Grade:
Ex d IIB T6
Corrosion Proof grade:
I
Tube Size:
4ft
Application:
Hotel, Restaurant, supermarket, building, public place etc
Item Type:
Explosion-proof Lights
IP Rating:
IP65
Base Type:
G13
Certification:
ce, EMC, LVD, RoHS
Lamp Body Material:
Aluminum Alloy
Lamp Luminous Efficiency(lm/w):
100
Color Temperature(CCT):
2700k--7500k
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Each packed in a standard UPS, DHL export carton
Port
Yantian/Shekou port
Lead Time:
7 workdays after received 30% deposit







CE RoHS Listed Industrial T8 dual tube 36W LED explosion-proof lamp








PART ONE: Main Parameters





Size1275x125x95mm
Power2x18W
Lumens100lm/W
 IP GradeIP65
Frequency50HZ-60HZ
LED ChipSanan 2835
MaterialAluminum Alloy
Color Temperature3000K--6500K
VoltageAC85-265V









PART TWO: Features





1. Durable housing

The housing of the explosion proof lamp are made by Aluminum Alloy and Toughened Glass,durable and strong enough for working well.



2. Top quality

For our explosion proof lamp, the outdise aluminum housing can prevent the light from being damaged.



3. Great Lighting source
The chip of explosion proof lamp is of high quality and bigger size, which is SMD2835 . It can resist higher anti-static and distribute more brightness.*_*



 4. Low light attenuation
The white light is adopting new technology, less than 3% in 1000hrs, however, the traditional attenuation of white color at least 30%, promise the explosion proof lamp is more attractive.^-^



5. ECO-friendly

The explosion proof lamp produces no UV and IR radiation. Hence it is harmless to human health and eyes. Meanwhile It is completely Green product.









PART THREE: Application



A. The explosion proof lamp are suitable for all places where require long time lighting, such as underground parking garage, Tunnel, underground passage, warehouse, supermarket, office, etc.



B. The explosion proof lamp is used for Gas Station, Oil Tanker or Mine.



C. The explosion proof lamp for any flammable and explosive place.











PART Four: Pictures Paradise













  PART Five: Tube certification











  PART Six: Trade Terms





terms of payment

L/C;T/T;Western;Uinon;Paypal are welcomed.

Shipping port

Shenzhen or Guangzhou, Mainland China

Delivery time:

Samples will be delivered in 7 working days usually(Custom-jobs May Last Longer:15 days),

Bulk Order Will Be Sent Out Within 25 Working Days.(Based on 2000 Pieces)



Terms delivery

1. 30% deposits before production, 70% balance to be paid before deliverying

2. Discounts are offered based on order quanlities.















Aout Victory Lightin



Office and factory

produce line

Exhibition



We Victory Lighting is mainly focus on LED Outdoor Lighting ( LED Street Light, LED High Bay Light, LED Flood Light and LED Canopy Light), LED Indoor Lighting ( LED T8 Tube Light, LED T10 Tube Light, LED Bulb, LED Spotlight). Every product from Victory Lighting is managed by ISO9001.
