Home > Products > high power led street light housing 50w , manufacturer of led streetlight 100w

high power led street light housing 50w , manufacturer of led streetlight 100w

Click on the image to view the original image

Product：	views：4high power led street light housing 50w , manufacturer of led streetlight 100w
Branch：	Victory
Size：	51X25X8 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 17:38

Product Details

Overview

Quick Details

Input Voltage(V):: AC85-265V

Lamp Luminous Flux(lm):: 5000

CRI (Ra>):: 85

Working Temperature(℃):: -20 - 50

Working Lifetime(Hour):: 50000

IP Rating:: IP65

Certification:: CE, EMC, LVD, RoHS

Warranty(Year):: 2

Place of Origin:: Guangdong, China

Brand Name:: Victory

Model Number:: WY2902-50W

Beam Angle(°):: 120

Application:: Residential, highway,expressway, main road,square etc

Size:: 500X210X50 mm

Weight:: 2.9 KG

Led Quantity:: 1 pcs cob

Led Chip:: Bridgelux chip

Power factor:: >0.95

Insulation Grade:: I

Corrosion-Proof Grade:: WF2

Color Temperature(CCT):: warm/pure/cool white

Cable:: 8-14 mm

Light Source:: LED, Incandescent Bulbs, HID, Fluorescent, Halogen Bulbs, Induction Lamps, Ultraviolet Lamps, Neon Bulbs

Item Type:: Street Lights

Dimension:: 50w

Packaging & Delivery

Selling Units:: Single item

Single package size:: 51X25X8 cm

Single gross weight:: 5.0 kg

Lead Time:

Quantity(Piece)	1 - 10	>10
Est. Time(days)	7	To be negotiated

high power led street light housing 50w , manufacturer of led streetlight 100w

Product Description

led spot street light Parameter

Power	50w	Size	500X210X50MM
Housing Material	Aluminum Alloy	Color Temperature	3000K--6500K
Lumens	100-110 lm/W	Power factor	> 0.95
Working Temperature	-20° C-50° C	Weight	3kg
Insulation Grade	I	Corrosion-Proof Grade	WF2
Cable	6-8 mm	IP Grade	IP65
Application	highway, expressway, main road, square etc	Voltage	AC85-265V
Warranty	3 Years	Lifespan	≥ 50, 000 hrs

led spot street light Feature

1. Light source: Original Import COB LEDs
2.Long LED life: More than 50,000 hours

3.LED Street light Function: different angle for choice
4. LED Street light type: Internal isolated constant current driver
5. LED Street light Power factor:>0.95 No UV or IR light radiation
6.Eco-friendly,No mercury or other inorganics
7.Highest optical efficiency: 100-110 lumens per watt
8.Homogeneous High bay illumination
9.Aluminum housing with excellent thermal efficiencies
10.The high bay is available in the following white color temperatures:warm white:2700K-7500K,natural white:4000K-4500K,6000K-6500K.
11. 50w LED Street light can achieve directional light output equal to 200W HPS Lamp

Detailed Images

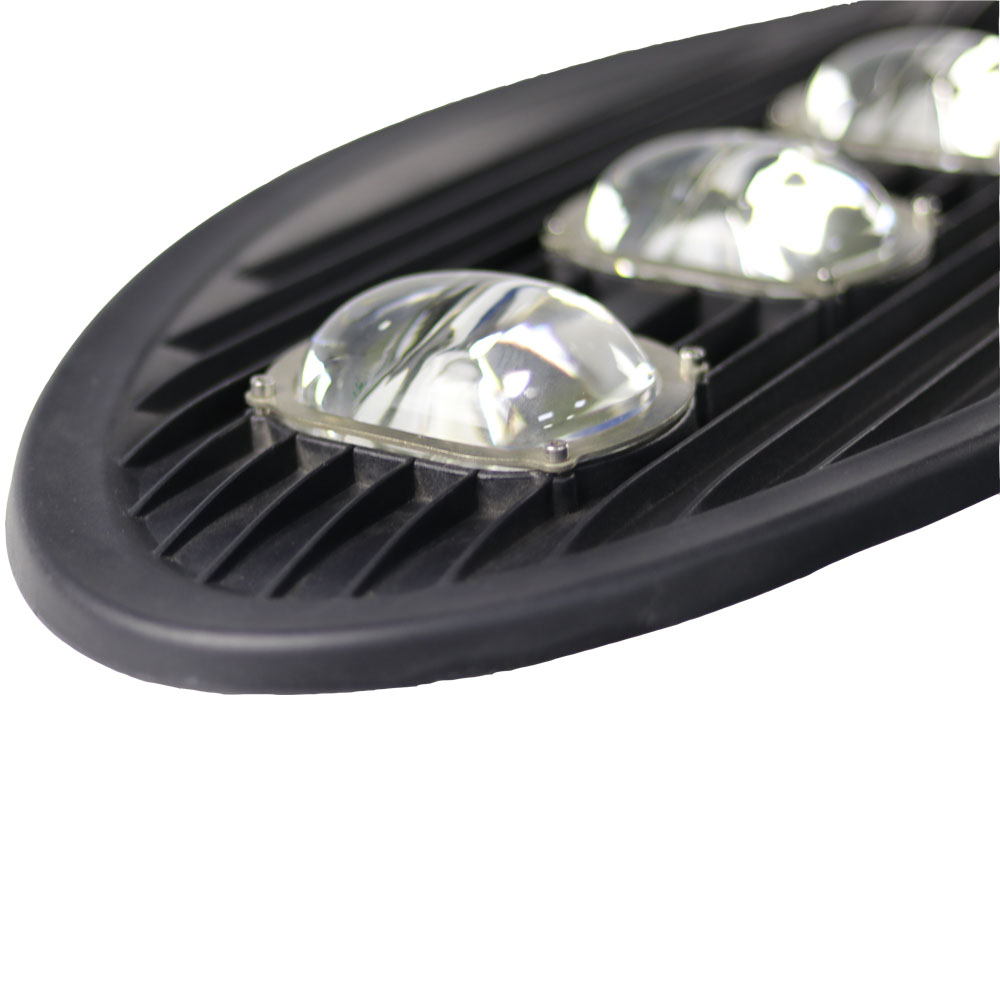

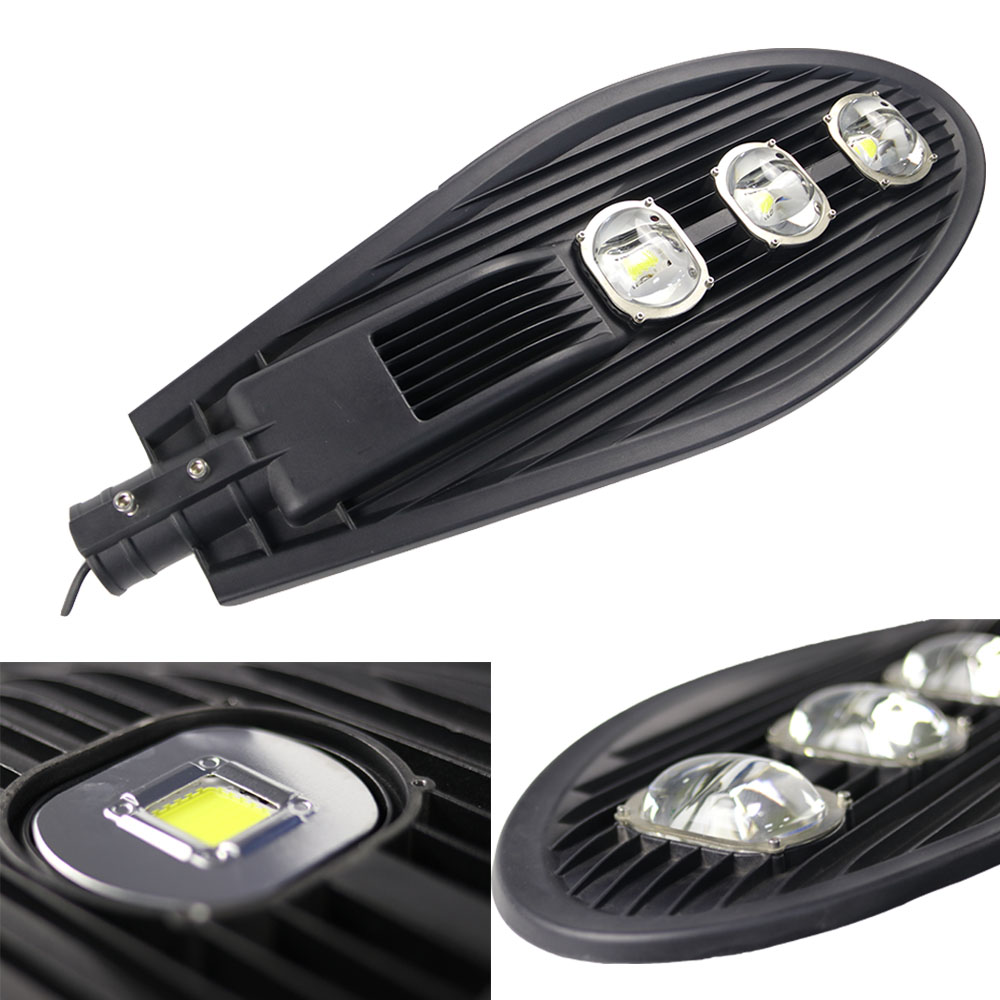

Pictures show of led spot street light

Application

Application of led spot street light

Our led spot street light mainly applied to urban expressway, trunk road, secondary trunk, branch, factories, schools, gardens, residential areas, city squares other road lighting etc.

Packaging & Shipping

Packaging and Shipping

1 piece per carton

1.Shipped by international express(DHL;TNT;FEDEX;UPS)-door to door service.

2.air transportation-airport to airport service

3.marine transportation-port to port service

Transaction Shows

Transaction Overview:

Trade Terms

terms of payment	L/C;T/T;Western;Uinon;Paypal are welcomed.
Shipping port	Shenzhen or Guangzhou, Mainland China
Delivery time:	Samples will be delivered in 7 working days usually(Custom-jobs May Last Longer:15 days), Bulk Order Will Be Sent Out Within 25 Working Days.(Based on 2000 Pieces)
Terms delivery	1. 30% deposits before production, 70% balance to be paid before deliverying 2. Discounts are offered based on order quanlities.
