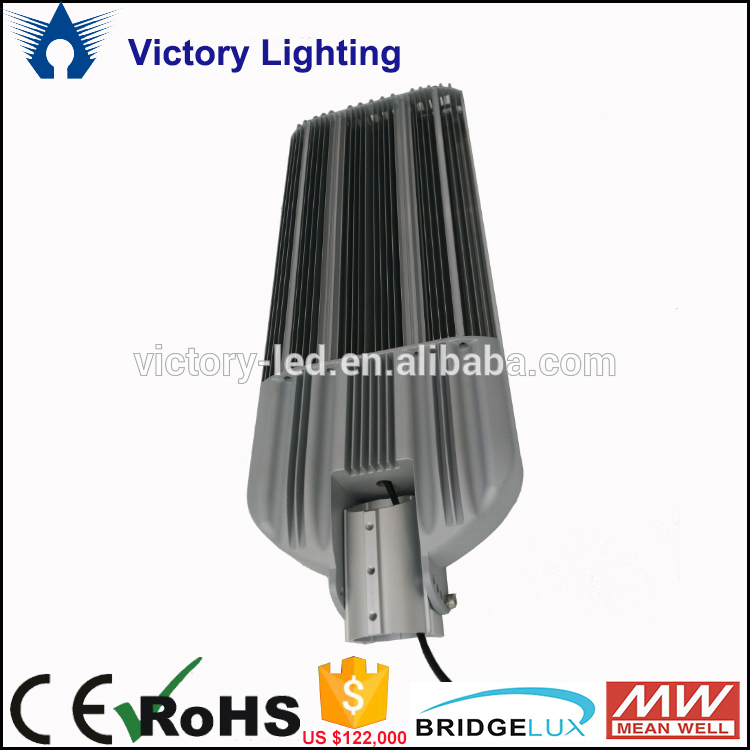

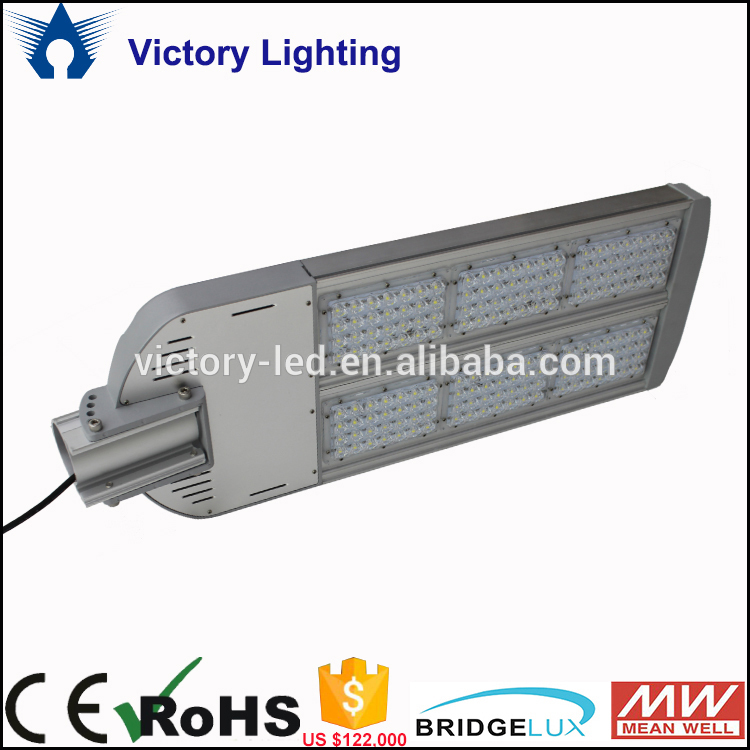

Aluminum Die Casting Meanwell driver and Bridgelux Chips 100w Moldule LED Street Light
Click on the image to view the original image
Product： views：6Aluminum Die Casting Meanwell driver and Bridgelux Chips 100w Moldule LED Street Light
Branch： Victory
Size： 45X30X12 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 17:38
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC85-265V
Lamp Luminous Flux(lm):
18000
CRI (Ra>):
85
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
IP Rating:
IP65
Certification:
CE, EMC, LVD, RoHS
Warranty(Year):
2
Place of Origin:
Guangdong, China
Brand Name:
Victory
Model Number:
WY2902-100W
Beam Angle(°):
120
Application:
Residential, highway,expressway, main road,square etc
Size:
437x280x115mm
Weight:
10.5KG
Led Quantity:
100pcs
Led Chip:
Bridgelux chip
Power factor:
>0.95
Insulation Grade:
I
Corrosion-Proof Grade:
WF2
Color Temperature(CCT):
warm/pure/cool white
Cable:
8-14 mm
Light Source:
LED, Incandescent Bulbs, HID, Fluorescent, Halogen Bulbs, Induction Lamps, Ultraviolet Lamps, Neon Bulbs
Item Type:
Street Lights
Dimension:
100w

Packaging & Delivery

Selling Units:
Single item
Single package size:
45X30X12 cm
Single gross weight:
11.0 kg
Lead Time:
Quantity(Piece)1 - 10>10
Est. Time(days)7To be negotiated



Aluminum Die Casting Meanwell driver and Bridgelux Chips 100w Moldule LED Street Light





Product Parameter

Power100wSize437x280x115mm
Housing  MaterialAluminum  AlloyColor  Temperature3000K--6500K
Lumens100-110  lm/WPower  factor> 0.95
Working  Temperature-20° C-50° CWeight10.5 kg
DriverMeanwell driverCorrosion-Proof  GradeWF2
Cable 6-8  mmIP  GradeIP65
Working Temp-20~50℃VoltageAC85-265V
Warranty2  YearsLifespan≥ 50, 000  hrs









Product Description



1. Integrated packaging LED source has a dedicated heat dissipation system, high quality LED driver and  long lifespan.



2. Well designed reasonable light distribution is the perfect for roadway light standard.


3. Aluminum alloy housing for improved heat dissipation, lower weight and higher safety.


4. Auto-control system, increases energy efficiency.



5. Easy intallstion and maintenance.








Product Detail

















Product Family



More Design, More Choose















Application



The 180W Module LED Street Light mainly applied to urban expressway, trunk road, secondary trunk, branch, factories, schools, gardens, residential areas, city squares other road lighting etc.











Certifications









Packaging & Shipping



All of your goods ( 180W Module LED Street Light ) is protected well by strong package





 For shipping, we can satisfy you any way you want
