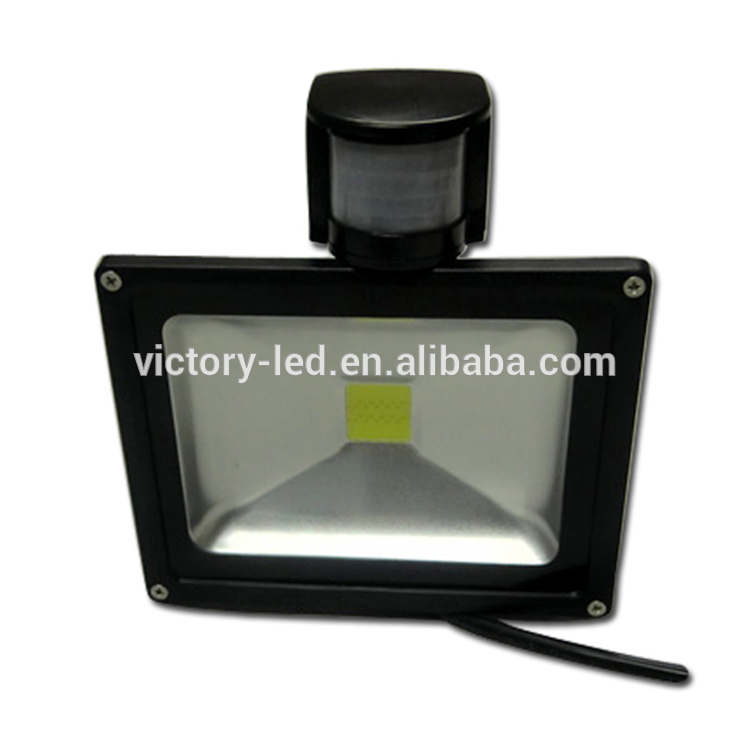

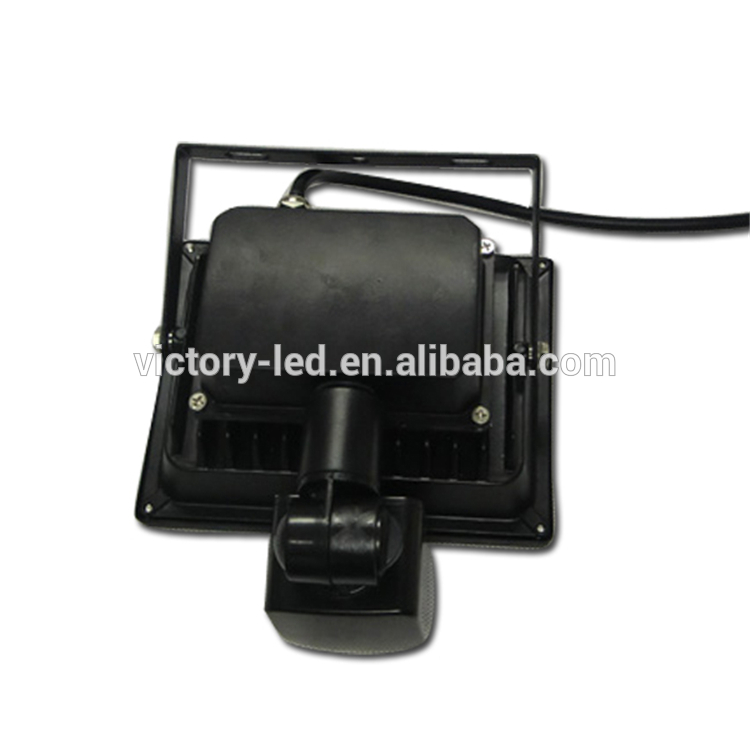

IP65 Outdoor Garden PIR Sensor Security 10W-100W LED Flood Light
More Watt : 10w 20w 30w 50w
Specifications
Security LED Flood Light
Item No. | WY2970-20w | Color Temperature | 3000-6500K |
Dimmension | 180x140x110mm | Color Rendering Index | >85 Ra |
Weight | 1.5 KG | Input Voltage & Frequency | AC 85-265 V;50-60 Hz |
LED Chip | Bridgelux 45Mil | Driver | Factory Driver |
Actual Output Lumens | 4650-5700 LM | Power Factor | >0.90 @ 220 VAC |
IP Rating | IP65 | Cable | 8-14 mm |
Insulation Grade | I | Corrosion-Proof Grade | WF2 |
Certification | CE & RoHS | Lifespan | >50000 Hours |
Housing Material | Aluminium Alloy | Warranty | 2 Years |

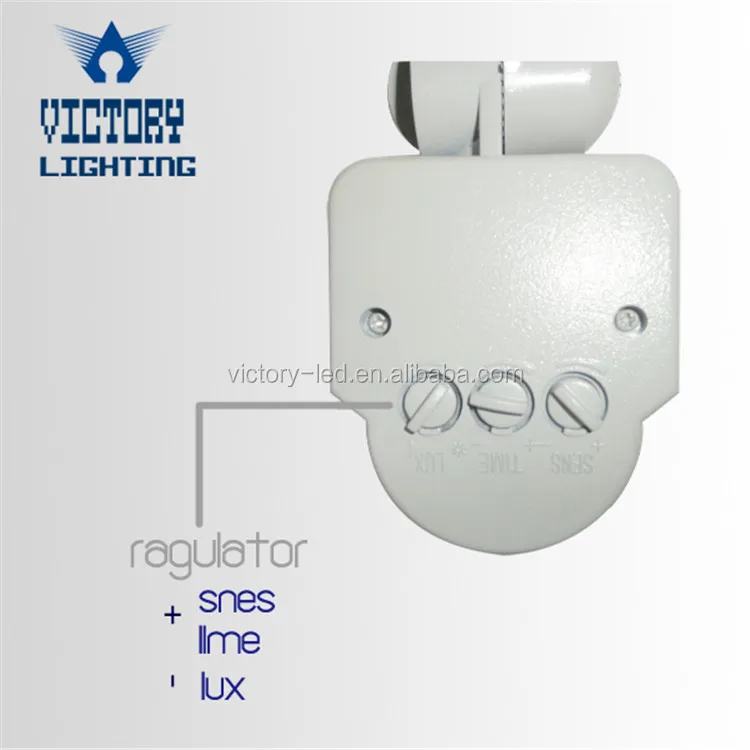

PIR Floodlight: All-in 1 Model with PIR Motion Sensor (3 Control Switches: TIME, LUX & SENSE).
SENSE: Adjust the sensitivity of the PIR Sensor (0-12 meters).
TIME: Adjust the time the floodlight will stay on (from 3 secs to 3 minutes).
LUX: Adjust the environment lux/brightness the sensor will start function (e.g. adjust to “SUN” symbol, the sensor will function at both day time and night time, adjust to “MOON” symbol, the sensor will only work at night time).
New OVER-RIDE Function:
· To select normal mode, turn unit off and wait between 2-4 seconds before turning back on.
· To restore to PIR mode, repeat the step above, and wait between 15-20 seconds before turning back on.
Advantages
1,Use Aluminum Alloy and Tempered Glass panel, Light transparent rate is up to 93%.
2, Light source: COB LED (Bridgelux, Epistar chip are available). Bright lighting up to 90-110LM/W.
3,Top quality heatsink: More aluminum heat sink cooling fins with best heat dissipation, efficiently reduce the temperature of the LED lighting chips and extend the lifespan of the lighting source.
4,Adopt Stainless steel parts: Endurance the corrosion of air, water, chemical acid, alkaline, salt and other materials, can be used in various kinds of harsh conditions for long term.
5,The lifespan is more than 5,0000 hours; Energy Saving 80% compared with traditional Fluorescent lamp.
6,Water-proof design :IP65.
7,LED driver contact with the heat sink directly and the heat dissipation is much stronger.
8. Wide range for the Input Voltage, saying AC85V-265V/277V can be used globally.
9, Widely used in the lighting of government project, business area, airport, metro station, flyover ,signboard, gymnasium, landmark and so on.
10,Wide color temperature for your option
Production & Testing
Package
1. Adopt high-grade environmental friendly thick card as packaging material;
2. Professional box lined design, the LED floodlight are well protected in transit
3. Neutral Screen
Certification
Trade Terms
1. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery (Western Union or T/T is welcomed)
2. Samples can be delivered in 7 working days
3. Discounts are offered based on order quantities
About us
Victory Lighting is dedicated to provide high quality and durable lighting product for customer with very reasonable price. Our products is mainly focus on LED outdoor lighting (LED streed light, LED high bay light, LED flood light and Canopy light), LED indoor lighting (LED panel light, LED T5 tube light, LED T8 tube light, LED T10 tube light, LED bulb, LED spotlight and LED ceiling light). Every product from Victory Lighting is managed by ISO9001, the product also gained CE and RoHS. We also pay a great attention to customer service that win a high reputation for our business. Welcome to visit our factory in China.
Our service
1. Any of your enquiry about us or our products will be replied quickly in detail in 24hours
2. Experienced and passionate staffs are ready to answer all your enquires in fluent English without barriers
3. OEM&ODM, we can help design and product your own lighting
4. Protection of your sales area, ideas of design and all your private information
Application
Parking lot, billborad, sports fields (football field, tennis courts, etc.), building exterior lighting, amusement parks, airports, bridges, tunnels ect...
Note
1. Before cleaning the light with a dry or slightly moistened cloth, make sure that it has been disconnected from the power supply.
2. Never use any chemicals or abrasives for cleaning.
3. Ensure the power off before the lamp replacement.
4. Please consult the electrician for any question about the installation and using.
5. Never leave children unattended in the vicinity of the lights and do not allow them to play with electrical devices.
