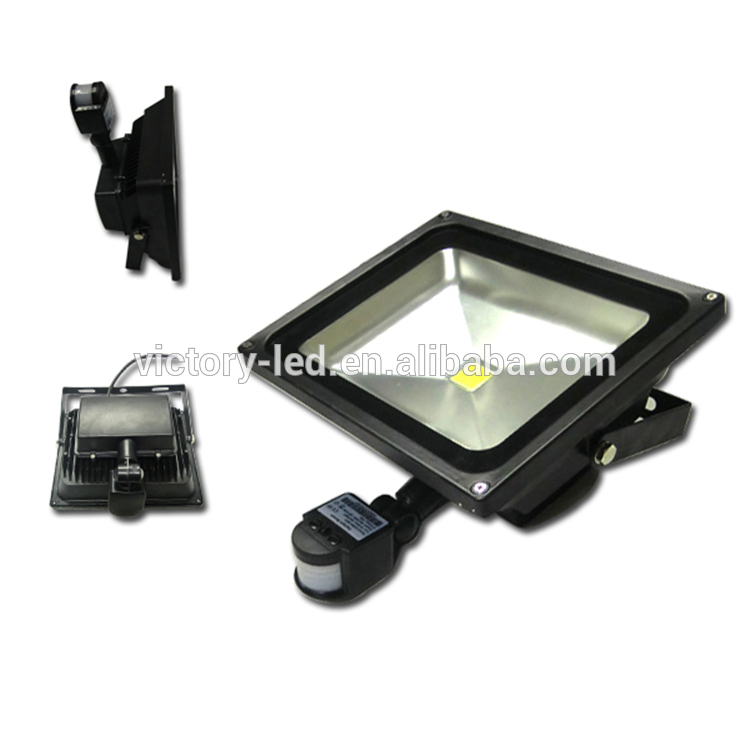

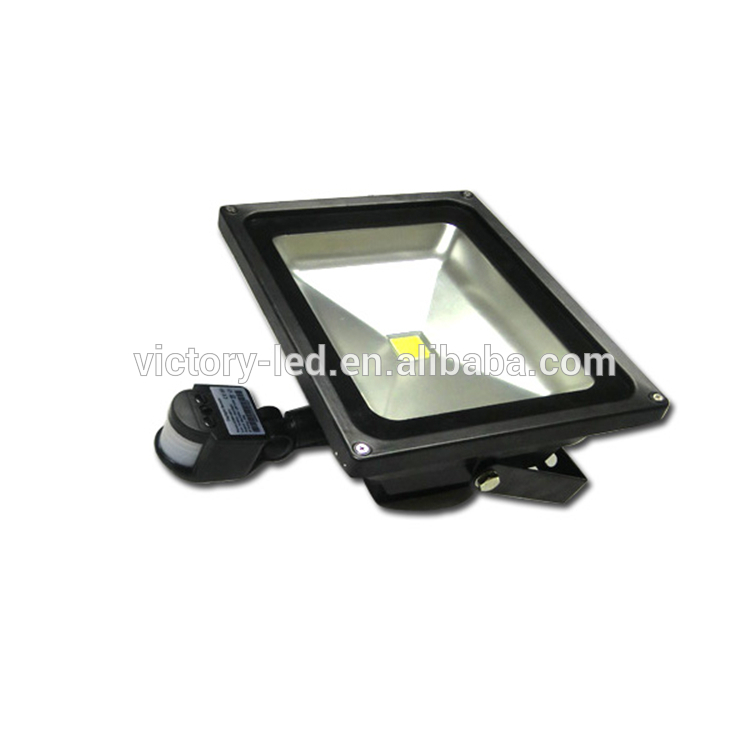

NEW Outdoor 50w 100w Low Energy LED PIR Sensor Security Flood Light
Specifications
High Quality Security Flood Light
Item No. | WY2970-50w | Color Temperature | 3000-6500K |
Dimmension | 285x235x140mm | Color Rendering Index | >85 Ra |
Weight | 3 KG | Input Voltage & Frequency | AC 85-265 V;50-60 Hz |
LED Chip | Bridgelux 45Mil | Driver | Factory Driver |
Actual Output Lumens | 4650-5700 LM | Power Factor | >0.90 @ 220 VAC |
IP Rating | IP65 | Cable | 8-14 mm |
Insulation Grade | I | Corrosion-Proof Grade | WF2 |
Certification | CE & RoHS | Lifespan | >50000 Hours |
Housing Material | Aluminium Alloy | Warranty | 2 Years |
PIR Floodlight: All-in 1 Model with PIR Motion Sensor (3 Control Switches: TIME, LUX & SENSE).
SENSE: Adjust the sensitivity of the PIR Sensor (0-12 meters).
TIME: Adjust the time the floodlight will stay on (from 3 secs to 3 minutes).
LUX: Adjust the environment lux/brightness the sensor will start function (e.g. adjust to “SUN” symbol, the sensor will function at both day time and night time, adjust to “MOON” symbol, the sensor will only work at night time).
New OVER-RIDE Function:
· To select normal mode, turn unit off and wait between 2-4 seconds before turning back on.
· To restore to PIR mode, repeat the step above, and wait between 15-20 seconds before turning back on.
Advantages
1,Use Aluminum Alloy and Tempered Glass panel, Light transparent rate is up to 93%.
2, Light source: COB LED (Bridgelux, Epistar chip are available). Bright lighting up to 90-110LM/W.
3,Top quality heatsink: More aluminum heat sink cooling fins with best heat dissipation, efficiently reduce the temperature of the LED lighting chips and extend the lifespan of the lighting source.
4,Adopt Stainless steel parts: Endurance the corrosion of air, water, chemical acid, alkaline, salt and other materials, can be used in various kinds of harsh conditions for long term.
5,The lifespan is more than 5,0000 hours; Energy Saving 80% compared with traditional Fluorescent lamp.
6,Water-proof design :IP65.
7,LED driver contact with the heat sink directly and the heat dissipation is much stronger.
8. Wide range for the Input Voltage, saying AC85V-265V/277V can be used globally.
9, Widely used in the lighting of government project, business area, airport, metro station, flyover ,signboard, gymnasium, landmark and so on.
10,Wide color temperature for your option
Production & Testing
Package
1. Adopt high-grade environmental friendly thick card as packaging material;
2. Professional box lined design, the LED floodlight are well protected in transit
3. Neutral Screen
Certification
Trade Terms
1. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery (Western Union or T/T is welcomed)
2. Samples can be delivered in 7 working days
3. Discounts are offered based on order quantities
Company Information
Shenzhen Victory lighting CO,.Ltd is a manufactor that produce lamps in our own factories,with the CE&RoHS approval.so the quality is promised.at the same time we can give buyers a more favorable price without middle traders.and customization is available.too.welcome friends from all over the world to our factories to visit and test the products.
our website: http://victory-light.en.alibaba.com
Our service
1. Any of your enquiry about us or our products will be replied quickly in detail in 24hours
2. Experienced and passionate staffs are ready to answer all your enquires in fluent English without barriers
3. OEM&ODM, we can help design and product your own lighting
4. Protection of your sales area, ideas of design and all your private information
Led Flood Light Application
Parking lot, billborad, sports fields (football field, tennis courts, etc.), building exterior lighting, amusement parks, airports, bridges, tunnels ect...
Note
1. Before cleaning the light with a dry or slightly moistened cloth, make sure that it has been disconnected from the power supply.
2. Never use any chemicals or abrasives for cleaning.
3. Ensure the power off before the lamp replacement.
4. Please consult the electrician for any question about the installation and using.
5. Never leave children unattended in the vicinity of the lights and do not allow them to play with electrical devices.
