Home > Products > 5 foot 32 watt integrated led cooler light with 2 pcb
5 foot 32 watt integrated led cooler light with 2 pcb
Click on the image to view the original image
Product： views：75 foot 32 watt integrated led cooler light with 2 pcb
Branch： WY
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 17:39
  Negotiated
Product Details
Overview
Quick Details
Warranty(Years):
2
Input Voltage(V):
AC85-265V
Lamp Power(W):
32
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra>):
80
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP54
Certification:
CE, RoHS
Place of Origin:
Guangdong, China
Brand Name:
WY
Model Number:
T8
Light Source:
LED
Model No.:
WYP818-32w
PF:
0.9
Beam Angle:
270°
product size:
1500x30x30mm
Carton size:
156x22x25cm
Qty/CTN:
25pcs
Item Type:
Tube Lights
Lamp Luminous Flux(lm):
3200
LED Light Source:
sanan 2835
Color Temperature(CCT):
3000-6500K
Supply Ability
Supply Ability:
70000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Neutral packing with Standard Export Carton, customized is OK as requested.
Port
shenzhen

5 foot 32 watt integrated led cooler light with 2 pcb







LED TUEB T8 of  V shape-Integrated series:



Part No.

Size(mm)

   LED Type&Qty

    Certificate

Material

PC Cover

WYP-818-44W

   30*30*2400

    2835/240pcs

CE(EMC+LVD) RoHS

   Aluminum+PC

Transparent, Striped,Milky

WYP-818-39W

   30*30*1800

    2835/190pcs

CE(EMC+LVD) RoHS

   Aluminum+PC

Transparent, Striped,Milky

 WYP-818-32W

   30*30*1500

    2835/160pcs

CE(EMC+LVD) RoHS

   Aluminum+PC

Transparent, Striped,Milky

WYP-818-22W

  30*30*1200

    2835/120pcs

CE(EMC+LVD) RoHS

   Aluminum+PC

Transparent, Striped,Milky





Electrical parameter (Temperature=25℃)



Part No.

       Voltage

    Frequency

Rated Power

 PF

WYP-818-44W

  85-265V AC

    50/60 Hz

      44W

       ≥0.95

WYP-818-39W

   85-265V AC

    50/60 Hz

      39W

       ≥0.95

WYP-818-32W

  85-265V AC

    50/60 Hz

      32W

       ≥0.95

WYP-818-22W

   85-265V AC

    50/60 Hz

       22W

       ≥0.95





Optical parameter  (25℃,220V/50Hz)



Part No.

       CCT

    CRI

Luminous Efficient

      Lumen

  Beam Angle

WYP-818-44W

2700-6500K

   ≥80

  100lm/w±5%

4400-4800LM

     270°

WYP-818-39W

2700-6500K

   ≥80

  100lm/w±5%

3900-4300LM

     270°

WYP-818-32W

2700-6500K

   ≥80

  100lm/w±5%

3200-3500LM

     270°

WYP-818-22W

2700-6500K

   ≥80

  100lm/w±5%

2200-2400LM

      270°



Cool White (6000-6500K)

Neutral White (4000-4500K)

Warm White (2700-3500K)

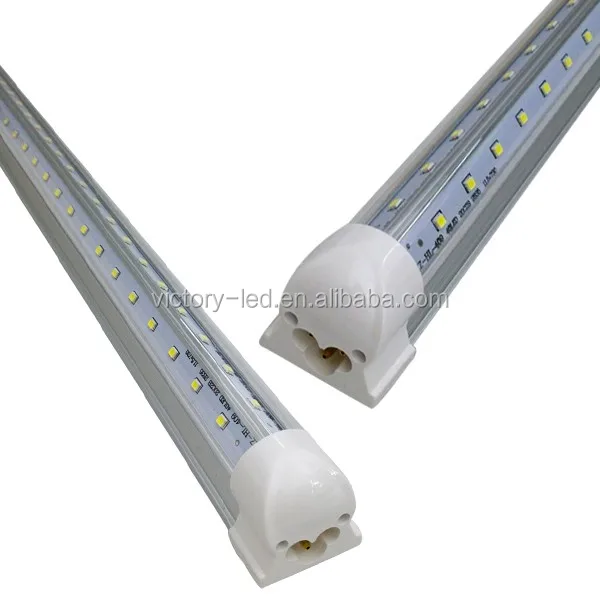

Details display of ed cooler light:









other t8 led tube light:



Installation of the tube:

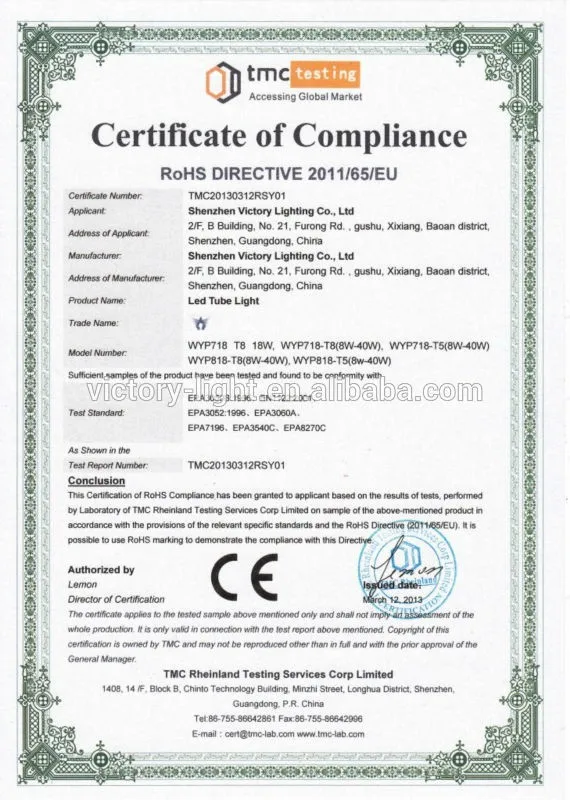

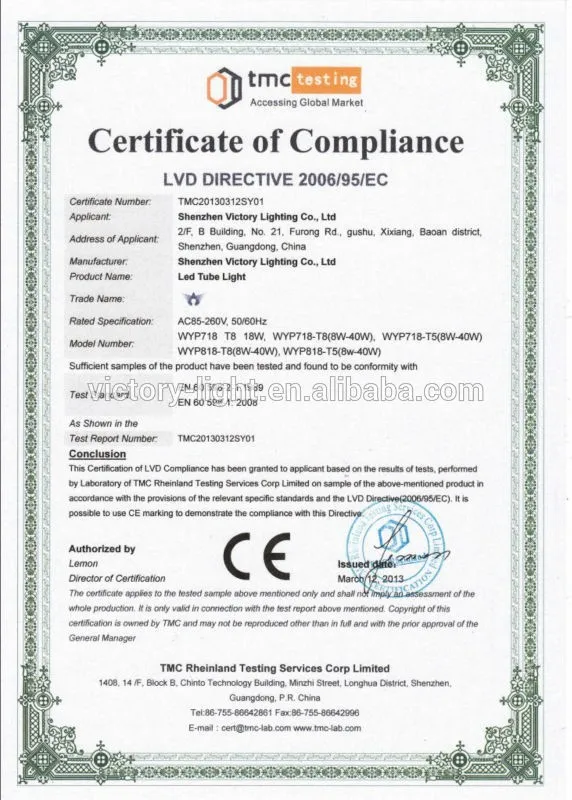

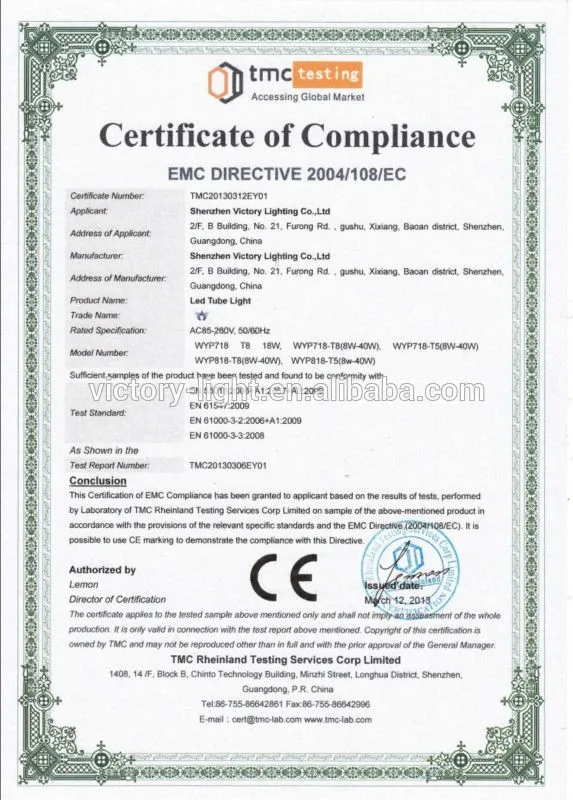

 Certification













Application:

Apply for festival,stage and indoor lighting,such as supermarket,shops,school,household,shopping mall,hotel,restaurant and office buildings.





Payment & delivery



more detais:



1)payment term: T/T 30%deposit after order confirmed,the balance after  goods ready to deliver before shipping, or Western Union for small amount.



2)Shipping port: Shenzhen,China.



3)Discounts:We offer discount for big quantity.



4)All the price are based on EXW price ,no included the freight and tax.





Company Pictures:







Welcome to visit our company.
