Outdoor led flood light 200w 240w gas station led canopy lights
Specifications
gas station led canopy lights
Item No. | WY2980-200w | Color Temperature | 3000-6500K |
Dimmension | 480x480x35 mm | Color Rendering Index | >85 Ra |
Housing color | White | Input Voltage & Frequency | AC 85-265 V;50-60 Hz |
Net Weight | 5.5 KG | Power Factor | >0.90 @ 220 VAC |
Lumens | 100-110 LM/W | Cable | 8-14 mm |
LED Chip | SMD3030 | Power Supply | Factory driver or meanwell |
IP Rating | IP65 | Beam Angle | 120° |
Certification | CE & RoHS | Lifespan | >50000 Hours |
Housing Material | Aluminium Alloy | Warranty |
3 Years |

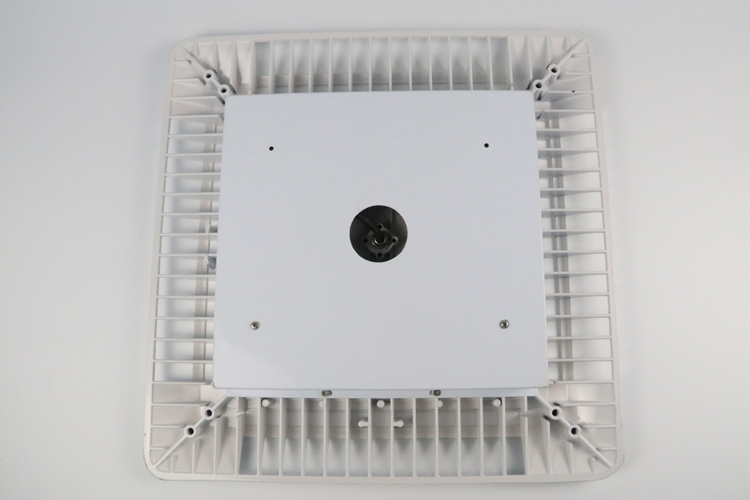

200w/240w led canopy light view
150w Led canopy light view
Led gas station light 150w Feature
1. Approvals of CE ,RoHS,LM79.
2.Meanwell Power Driver - Highly Efficient (Over 87%) and Reliable (3 Year Warranty)
3. Over than 50,000 hours operation life. Save more than 60% energy in the day-to-day operations than traditional lighting.
4.Color temperature for your option (3000k-7500k)
5.Green lighting: No flickers, no delay, no radiation, no mercury, no lead.
6.The input voltage is AC85V~265V, suitable for the world standard.
7. Super slim design and beauty looking

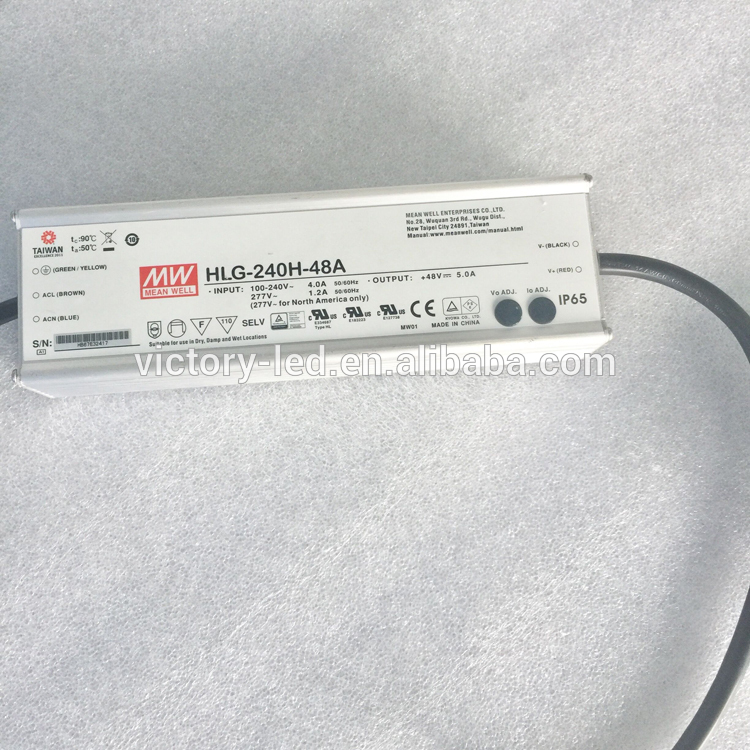

*MEANWELL
First, the light wire with the driver wire:
The red+ the brown
The black+ the blue
Second, the other side wire of the driver with your wire:
The brown (fire wire) + your black
The blue (null line) + your white
The yellow and green ( ground wire) + your green
1. Adopt high-grade environmental friendly thick card as packaging material;
2. Professional box lined design, the LED Gas Station Light are well protected in transit
3. Neutral Screen
Trade Terms
1. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery (Western Union or T/T is welcomed)
2. Samples can be delivered in 7 working days
3. Discounts are offered based on order quantities
Our service
1. Any of your enquiry about us or our products will be replied quickly in detail in 24hours
2. Experienced and passionate staffs are ready to answer all your enquires in fluent English without barriers
3. OEM&ODM, we can help design and product your own lighting
4. Protection of your sales area, ideas of design and all your private information
About us
Shenzhen Victory Lighting is a manufacturer who committed to applying the latest light source, new techniques and new materials into light business. We provide a variety of moveable or fixed energy-saving lamps and lanterns by ourselves and offer the best and efficient services. Victory"s products are used in areas ranging from electric power, railways, public securities, fire protection, police offices, metallurgies, coal mine, petrochemical industry, oil fields, army to other industries.
LED Gas Station Light Application
1. Hotels
2. gas station
3. parking lot area
4. outdoor area
Note
1. Before cleaning the light with a dry or slightly moistened cloth, make sure that it has been disconnected from the power supply.
2. Never use any chemicals or abrasives for cleaning.
3. Ensure the power off before the lamp replacement.
4. Please consult the electrician for any question about the installation and using.
5. Never leave children unattended in the vicinity of the lights and do not allow them to play with electrical devices.
