New Design Gas Station Meanwell Driver 150W Led Canopy Light UL
More wattage: 75w 100w 120w 150w
Specifications Gas Station Canopy Led Light
High Quality Gas Station Canopy Led Light
Item No. | WY2980-150w | Color Temperature | 3000-6500K |
Dimmension | 445x365x75 mm | Color Rendering Index | >85 Ra |
Hole Size | 300x300x50 mm | Input Voltage & Frequency | AC 85-265 V;50-60 Hz |
Net Weight | 8.5 KG | Power Factor | >0.90 @ 220 VAC |
Lumens | 100-130 LM/W | Cable | 8-14 mm |
LED Quantity | 90 Pieces | Color | Silver/White |
LED Chip | Bridgelux 45 Mil | Power Supply | Meanwell |
IP Rating | IP65 | Beam Angle | 120° |
Certification | CE & RoHS | Lifespan | >50000 Hours |
Housing Material | Aluminium Alloy | Warranty |
3 Years |
Product details Gas Station Canopy Led Light
Advantages Gas Station Canopy Led Light
1. Approvals of CE ,RoHS,LM79.
2.Meanwell Power Driver - Highly Efficient (Over 87%) and Reliable (3 Year Warranty)
3. Over than 50,000 hours operation life. Save more than 60% energy in the day-to-day operations than traditional lighting.
4.Color temperature for your option (3000k-7500k)
5. Green lighting: No flickers, no delay, no radiation, no mercury, no lead.
6. Design: The input voltage is AC85V~265V, suitable for the world standard.
7. Unique design for heat sink, making sure led canopy light working temperature less than 50degree.
*MEANWELL
Production & Testing Gas Station Canopy Led Light
Mounting Guide & Installation Gas Station Canopy Led Light
Wire connection for American reference ( please pay attention)
First, the light wire with the driver wire:
The red+ the brown
The black+ the blue
Second, the other side wire of the driver with your wire:
The brown (fire wire) + your black
The blue (null line) + your white
The yellow and green ( ground wire) + your green

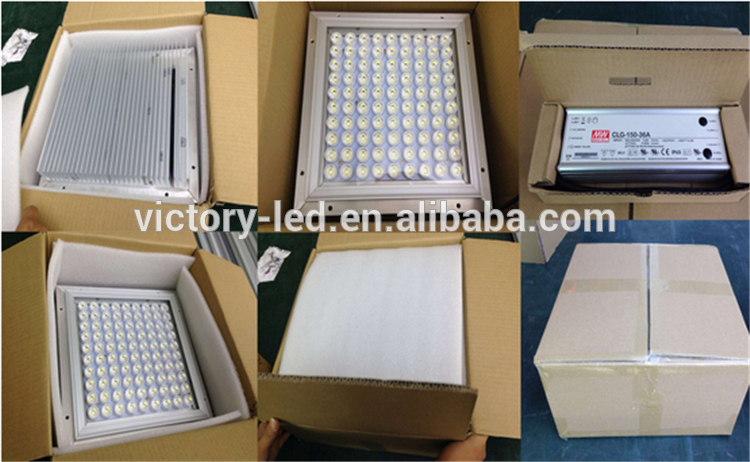

Packing Gas Station Canopy Led Light
1. Adopt high-grade environmental friendly thick card as packaging material;
2. Professional box lined design, the LED Gas Station Light are well protected in transit
3. Neutral Screen
Trade Terms Gas Station Canopy Led Light
1. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery (Western Union or T/T is welcomed)
2. Samples can be delivered in 7 working days
3. Discounts are offered based on order quantities
Our service
1. Any of your enquiry about us or our products will be replied quickly in detail in 24hours
2. Experienced and passionate staffs are ready to answer all your enquires in fluent English without barriers
3. OEM&ODM, we can help design and product your own lighting
4. Protection of your sales area, ideas of design and all your private information
About us
Victory Lighting is dedicated to provide high quality and durable lighting product for customer with very reasonable price. Our products is mainly focus on LED outdoor lighting (LED streed light, LED high bay light, LED flood light and Canopy light), LED indoor lighting (LED panel light, LED T5 tube light, LED T8 tube light, LED T10 tube light, LED bulb, LED spotlight and LED ceiling light). Every product from Victory Lighting is managed by ISO9001, the product also gained CE and RoHS. We also pay a great attention to customer service that win a high reputation for our business. Welcome to visit our factory in China.
Application Gas Station Canopy Led Light
Why Choose Us
1.bridgelux chip;
2.meanwell supply;
Bridgelux chips: packaged professionally ensure the light source kept in optimum performance; mirror surface processed technology collect and reflect the invalid light into efficiency; use of lens controls the horizontal and vertical beam angle actively.
MeanWell power :To use world’s leading brand MeanWell power supply ensure the fixture works in stableness with better performance and enjoy its long life; power supply is CE RoHS TUV CB certificated.
favorable factory price
oem services no middle traders
(1)Lower energy usage, financial benefits.
(2)High shock & vibration resistant.
(3)Energy Savings of as Much as 90% vs. Traditional Lighting
(4)No UV or RF interference, NO Mercury
(5)Instant start, no noise, no flickering.
(6)Suitable for both indoor and outdoor use.
