40w light canopy led waterproof gas station explosion proof canopy light
More wattage: 70w 80w 90w 100w 120w 150w
Item No. | WY2980-150w | Color Temperature | 3000-6500K |
Dimmension | 340x340x70 mm | Color Rendering Index | >85 Ra |
Hole Size | 300x300x50 mm | Input Voltage & Frequency | AC 85-277 V;50-60 Hz |
Net Weight | 8.5 KG | Power Factor | >0.90 @ 220 VAC |
Lumens | 120 LM/W | Cable | 8-14 mm |
LED Quantity | 90 Pieces | Color | Silver/White |
LED Chip | Bridgelux 45 Mil | Power Supply | Meanwell |
IP Rating | IP65 | Beam Angle | 120° |
Certification | CE & RoHS&UL | Lifespan | >50000 Hours |
Housing Material | Aluminium Alloy | Warranty |
3 Years/5 Years |

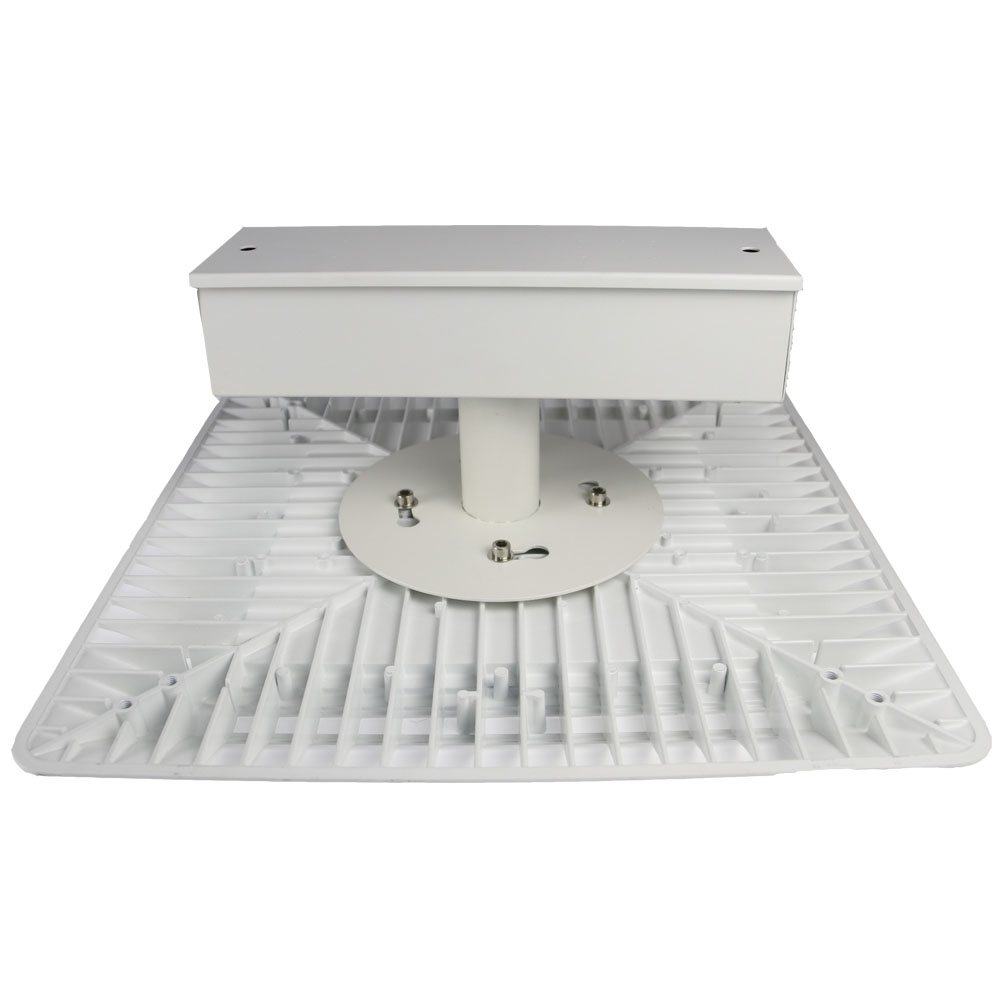

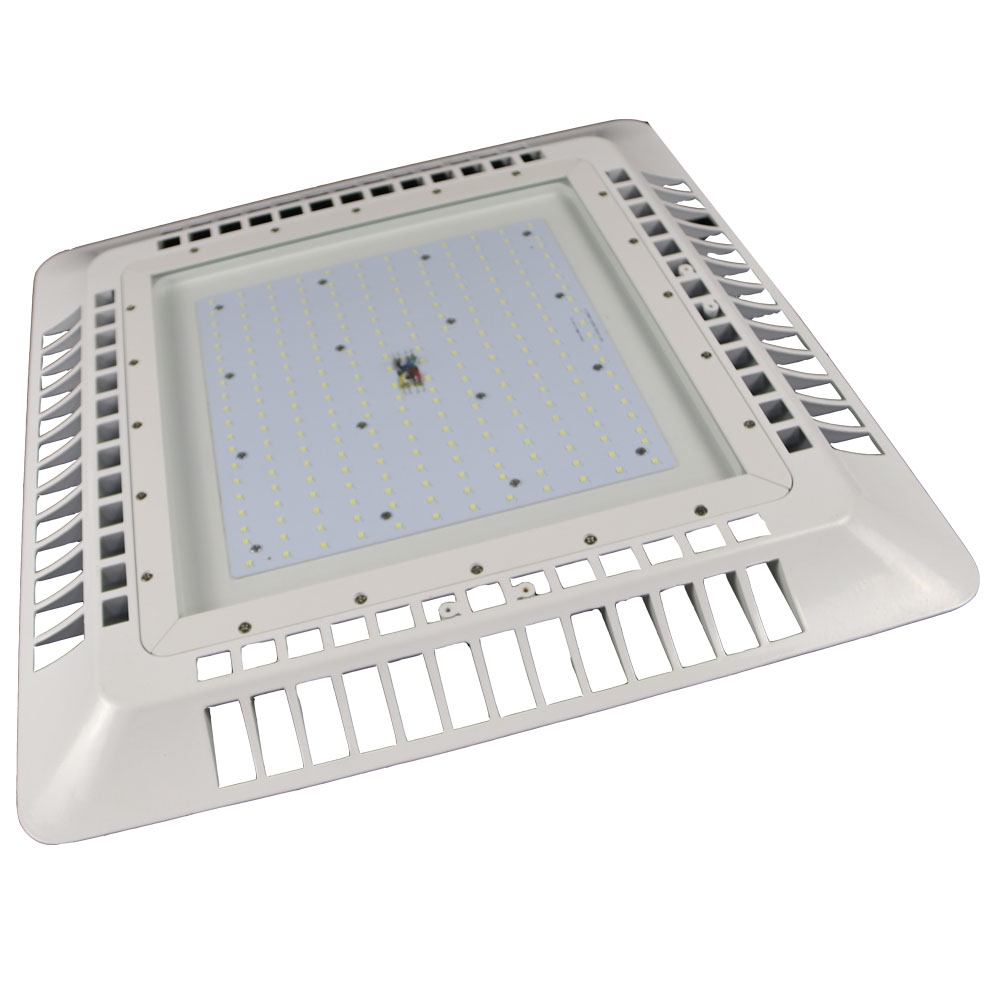

LED Gas Station Canopy Light Picture show
1. Approvals of UL , CE ,RoHS,LM79.
2.Meanwell Power Driver - Highly Efficient (Over 87%) and Reliable (3 Year Warranty)
3. Over than 50,000 hours operation life. Save more than 60% energy in the day-to-day operations than traditional lighting.
4.Color temperature for your option (3000k-7500k)
5. Green lighting: No flickers, no delay, no radiation, no mercury, no lead.
6. Design: The input voltage is AC85V~277V, suitable for the world standard.
7. Unique design for heat sink, making sure led canopy light working temperature less than 50degree.
*MEANWELL
LED Gas Station Canopy Light Production & Testing
LED Gas Station Canopy Light Mounting Guide & Installation
Wire connection for American reference ( please pay attention)
First, the light wire with the driver wire:
The red+ the brown
The black+ the blue
Second, the other side wire of the driver with your wire:
The brown (fire wire) + your black
The blue (null line) + your white
The yellow and green ( ground wire) + your green
LED Gas Station Canopy Light Packing details
one unit or two unit in a carton
1. Adopt high-grade environmental friendly thick card as packaging material;
2. Professional box lined design, the LED Gas Station Light are well protected in transit
3. Neutral Screen
Trade Terms
1. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery (Western Union or T/T is welcomed)
2. Samples can be delivered in 7 working days
3. Discounts are offered based on order quantities
Our service
1. Any of your enquiry about us or our products will be replied quickly in detail in 24hours
2. Experienced and passionate staffs are ready to answer all your enquires in fluent English without barriers
3. OEM&ODM, we can help design and product your own lighting
4. Protection of your sales area, ideas of design and all your private information
About Shenzhen Victory Lighting
Victory Lighting is dedicated to provide high quality and durable lighting product for customer with very reasonable price. Our products is mainly focus on LED outdoor lighting (LED streed light, LED high bay light, LED flood light and Canopy light), LED indoor lighting (LED panel light, LED T5 tube light, LED T8 tube light, LED T10 tube light, LED bulb, LED spotlight and LED ceiling light). Every product from Victory Lighting is managed by ISO9001, the product also gained UL CUL CE and RoHS. We also pay a great attention to customer service that win a high reputation for our business. Welcome to visit our factory in China.
LED Gas Station Canopy Light Application
1. Gas Station
2. Warehouse
Note
1. Before cleaning the light with a dry or slightly moistened cloth, make sure that it has been disconnected from the power supply.
2. Never use any chemicals or abrasives for cleaning.
3. Ensure the power off before the lamp replacement.
4. Please consult the electrician for any question about the installation and using.
5. Never leave children unattended in the vicinity of the lights and do not allow them to play with electrical devices.
