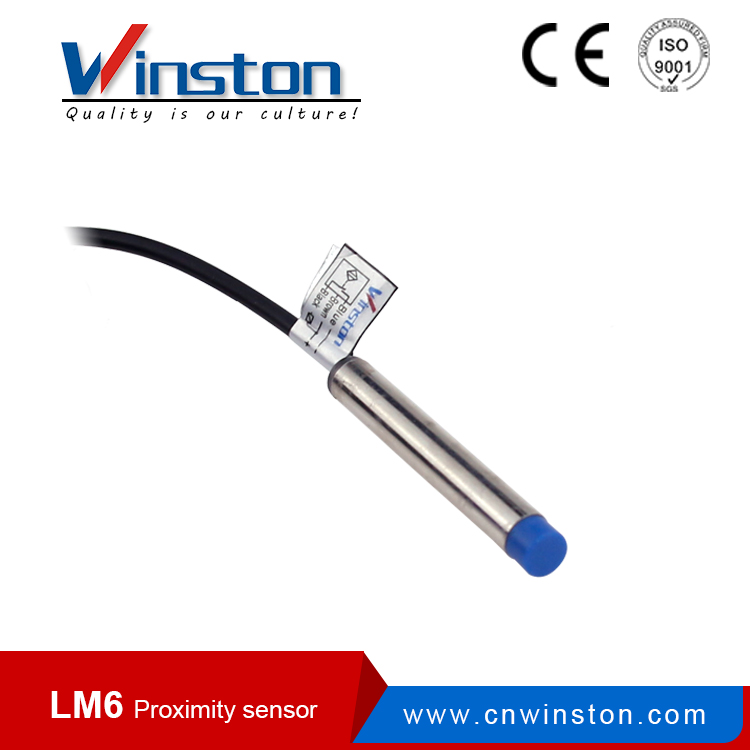

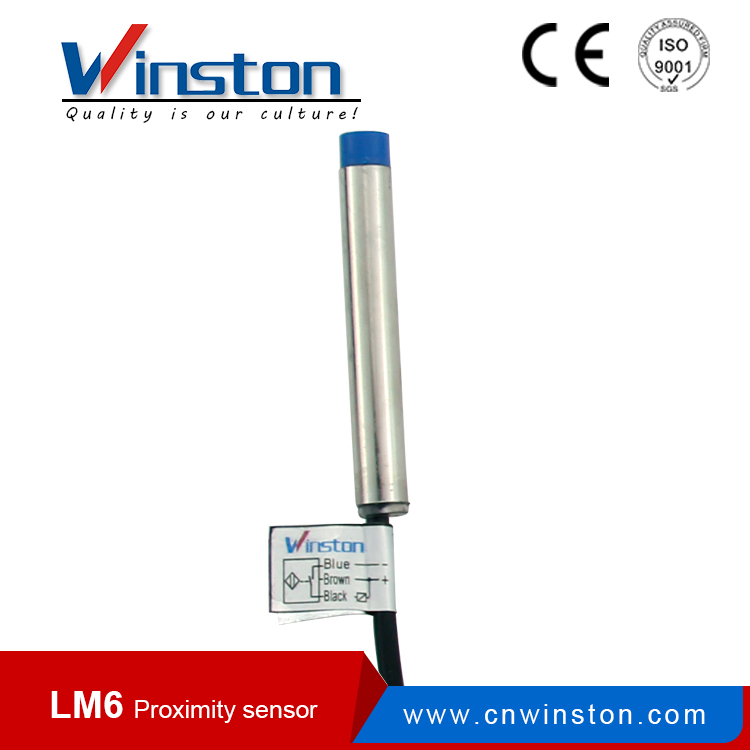

CE LM6 Cylinder Type NPN Inductive Magnetic Proximity Switch
Other products
 | | |
| | |
Application
Technical data
| Model NO. | Detection distance | Detection distance | Output | ||
| Form | State | ||||
| LM6-3001NA | 1mm | DC6-36V AC 90-250V | NPN | NO | Flush |
| LM6-3001NB | NC | ||||
| LM6-3001PA | PNP | NO | |||
| LM6-3001PB | NC | ||||
| LM6-3001LA | Two wire system | NO | |||
| LM6 -3001LB | NC | ||||
| LM6-3002NA | 1.5mm | NPN | NO | Non-flush | |
| LM6-3002NB | NC | ||||
| LM6-3002PA | PNP | NO | |||
| LM6-3002PB | NC | ||||
| LM-63002LA | Two wire system | NO | |||
| LM6 -3002LB | NC | ||||
| Output vol;tage drop DC/AC | DC (NPN PNP) type 3V or less,Two wire 3.9Vor less, AC 10Vor less DC<3V AC>10V | |||
| Consumption current | DC (NPN PNP) type 12V 8mA,24V 15mA , AC 10mA or less DC<15mA, AC>10mA | |||
| standard detected object | 6*6*1 (A3 iron) | |||
| Repeated precision | 0.01 | |||
| DC/AC | 500Hz | |||
| Working environment temperature | —25°C ~ + 75 °C | |||
| Insulation resistance | 50MΩ | |||
| Shell material | Metal | |||
| Protection grade | IP67 | |||
Dimension
