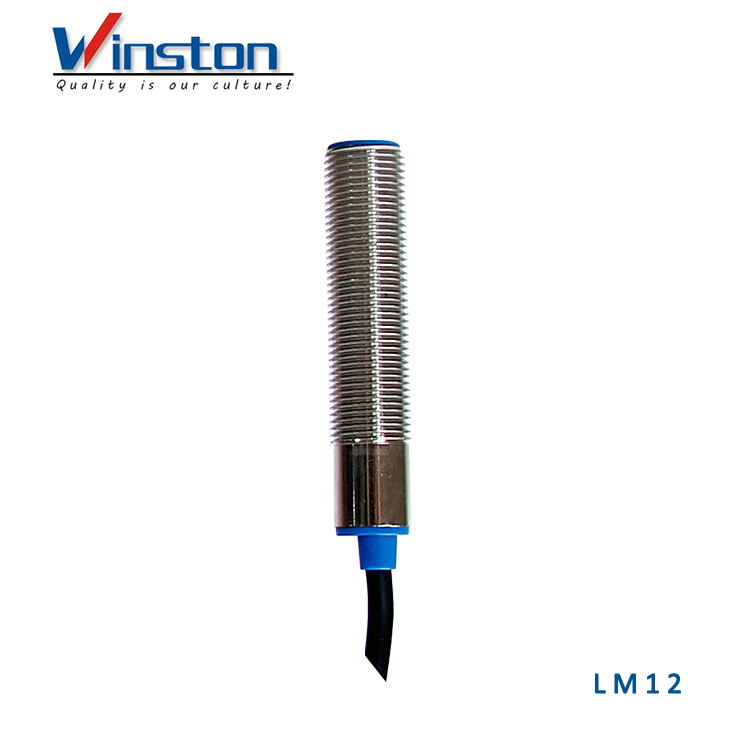

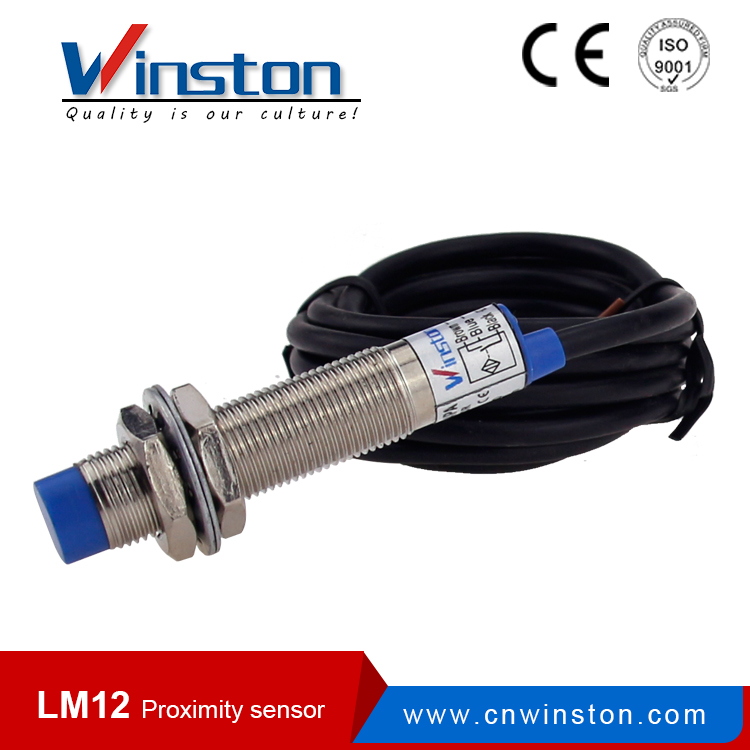

WINSTON LM12 Analog DC 12V Metal Waterproof Proximity Sensor
Other products
 | | |
| | |
Application
Technical data
| Model NO. | Detection distance | Working voltage | Output | Type | |
| Form | State | ||||
| LM12-3002NA | 2mm | DC6-36V AC90-250V | NPN | NO | Flush |
| LM12-3002NB | NC | ||||
| LM12-3002NC | NO+NC | ||||
| LM12-3002PA | PNP | NO | |||
| LM12-3002PB | NC | ||||
| LM12-3002PC | NO+NC | ||||
| LM12-3002LA | Two wire system | NO | |||
| LM12 -3002LB | NC | ||||
| LM12 -3002A | SCR Control label silicon | NO | |||
| LM12 -3002B | NC | ||||
| LM12-3004NA | 4mm | NPN | NO | Non-flush | |
| LM12-3004NB | NC | ||||
| LM12-3004NC | NO+NC | ||||
| LM12-3004PA | PNP | NO | |||
| LM12-3004PB | NC | ||||
| LM12-3004PC | NO+NC | ||||
| LM12-3004LA | Two wire system | NO | |||
| LM12 -3004LB | NC | ||||
| LM12 -2004A | SCR Control label silicon | NO | |||
| LM12 -3002B | NC | ||||
| Output voltage drop DC/C | DC<3V, AC<10V Two wire<3.9V |
| Consumption current | DC<15mA, AC<10mA |
| Standard detected object | 15*15*1(A3 iron) |
| Repeated procision | 0.01 |
| DC/AC | 400Hz/25Hz |
| Working environment temperature | -25°~+75° |
| Insulation resistance | >=50MΩ |
| Shell material | Metal |
| Protection grade | IP67 |
Dimension
