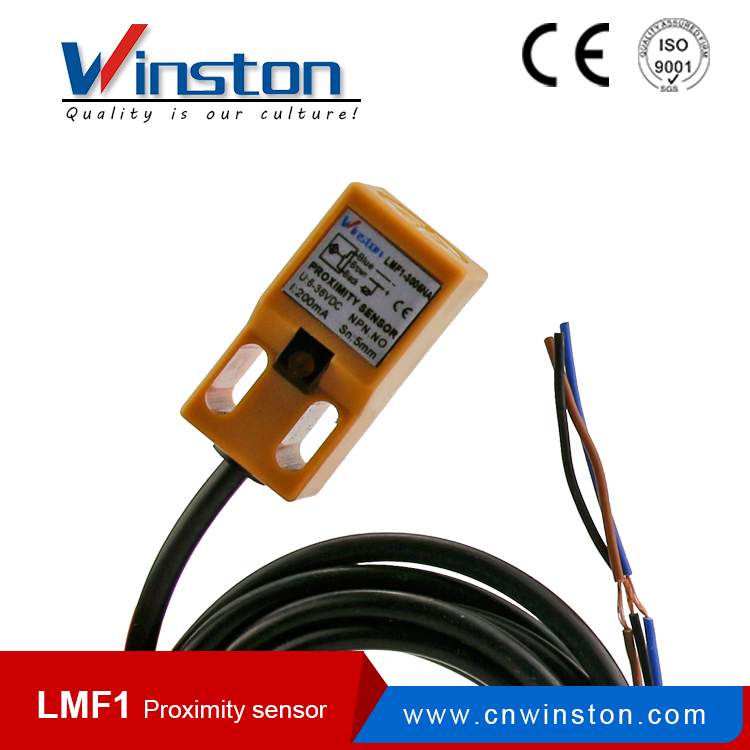

Factory LMF1 Angular Column Type Small Inductive Proximity ABS Sensor
Other products
 | | |
| | |
Application
Technical data
| Model NO. | Detection distance | Working voltage | Output | Type | |
| Form | State | ||||
| LMF1-3005NA | 5mm | DC10-300V AC90-250V | NPN | NO | Flush |
| LMF1-3005NB | NC | ||||
| NO+NC | |||||
| LMF1-3005PA | PNP | NO | |||
| LMF1-3005PB | NC | ||||
| NO+NC | |||||
| LMF1-3005LA | Two wire system | NO | |||
| LMF1-3005LB | NC | ||||
| SCR Control label silicon | NO | ||||
| NC | |||||
| 5mm | NPN | NO | Non-flush | ||
| NC | |||||
| NO+NC | |||||
| PNP | NO | ||||
| NC | |||||
| NO+NC | |||||
| Two wire system | NO | ||||
| NC | |||||
| LM1 -2005A | SCR Control label silicon | NO | |||
| LM1 -2005B | NC | ||||
| Output voltage drop DC/C | DC<3V, AC<10V Two wire<3.9V |
| Consumption current | DC<15mA, AC<10mA |
| Standard detected object | 20*20*1(A3 iron) |
| Repeated procision | 0.02 |
| DC/AC | 400Hz/25Hz |
| Working environment temperature | -25°~+75° |
| Insulation resistance | 50MΩ |
| Shell material | ABS Resin |
| Protection grade | IP67 |
Dimension
