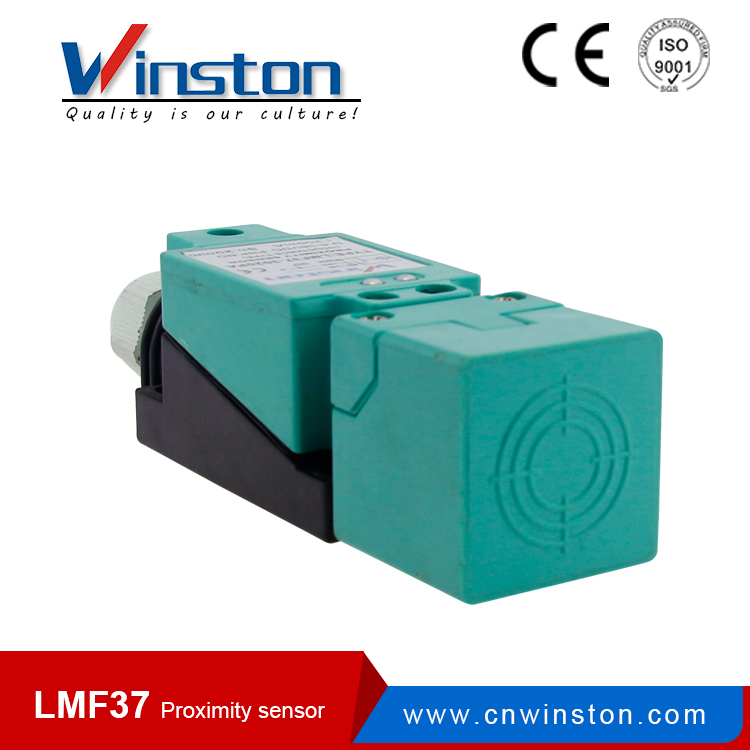

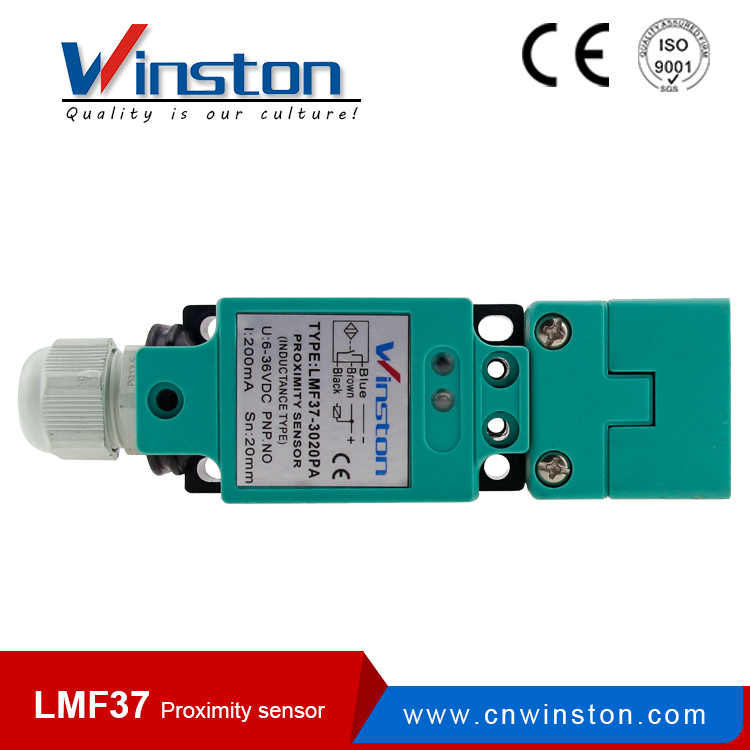

LMF37 Optical Flush & Non-flush Type Square Inductance Proximity Switch
Application
Technical data
| Model NO. | Detection distance | Detection distance | Output | ||
| Form | State | ||||
| LMF37-3015NA | 15mm | DC6-36V AC90-250V | NPN | NO | Flush |
| LMF37-3015NB | NC | ||||
| LMF37-3015NC | NO+NC | ||||
| LMF37-3015PA | PNP | NO | |||
| LMF37-3015PB | NC | ||||
| LMF37-3015PC | NO+NC | ||||
| LMF37-3015LA | Two wire system | NO | |||
| LMF37 -3015LB | NC | ||||
| LMF37 -2015A | SCR Control label silicon | NO | |||
| LMF37-2015B | NC | ||||
| LMF37 -2015C | NO+NC | ||||
| LM37-3020NA | 20mm | DC6-36V AC90-250V | NPN | NO | Non-flush |
| LMF37-3020NB | NC | ||||
| LMF37-3020NC | NO+NC | ||||
| LMF37-3020PA | PNP | NO | |||
| LMF37-3020PB | NC | ||||
| LMF37-3020PC | NO+NC | ||||
| LMF37-3020LA | Two wire system | NO | |||
| LMF37 -3020LB | NC | ||||
| LMF37 -2020A | SCR Control label silicon | NO | |||
| LMF37-2020B | NC | ||||
| LMF37 -2020C | NO+NC | ||||
| Output voltage drop DC/C | DC<3V, AC<10V Two wire<3.9V |
| Consumption current | DC<15mA, AC<10mA |
| Standard detected object | 12*12*1(A3 iron) |
| Repeated procision | 0.01 |
| DC/AC | 400Hz/10Hz |
| Working environment temperature | -25°~+70° |
| Insulation resistance | 50MΩ |
| Shell material | Metal |
| Protection grade | IP67 |
Dimension
