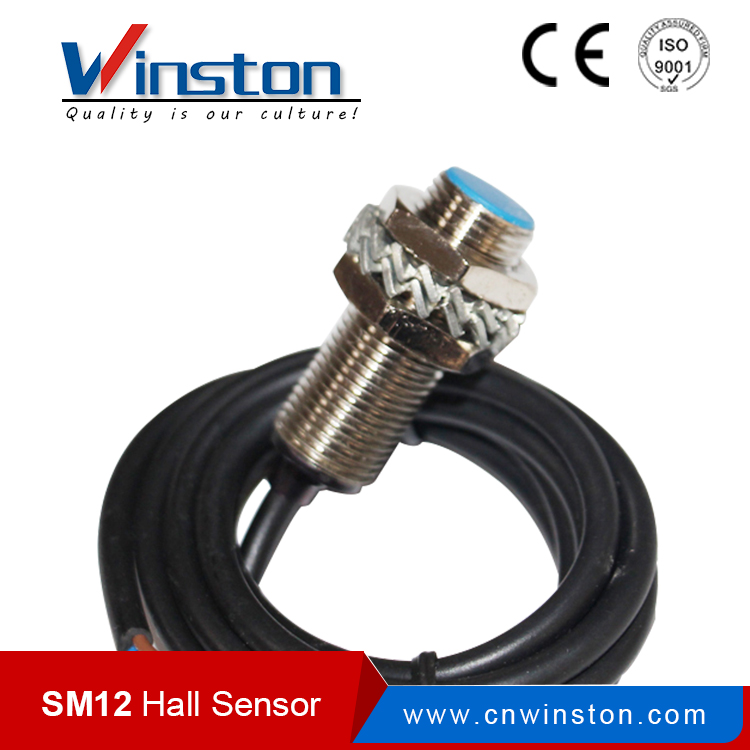

Small Size SM12 Permanent Magnet NPN NO / NC Hall Sensor Switch

Click on the image to view the original image

Product：	views：5Small Size SM12 Permanent Magnet NPN NO / NC Hall Sensor Switch
Branch：	WINSTON
Type：	Waterproof
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:17

Product Details

Small Size SM12 Permanent Magnet NPN NO / NC Hall Sensor Switch

Application

Technical data

SM12	Detection Distance				10mm
	Detectable object				Permanent magnet
	Flush	5-24VDC	PNP	NO	SM12-31010PA
				NC	SM12-31010PB
	Output	low level voltage	200mV
		high level current	0.1uA
	Main current		8mA
	ON-OFF frequency		320KHz
	Working point magnectic density		22mT
	Shell material		Metal
	Ambient temperature		—25℃ ~ + 70 ℃
	Protection structure		IEC standand IP67

Dimension
