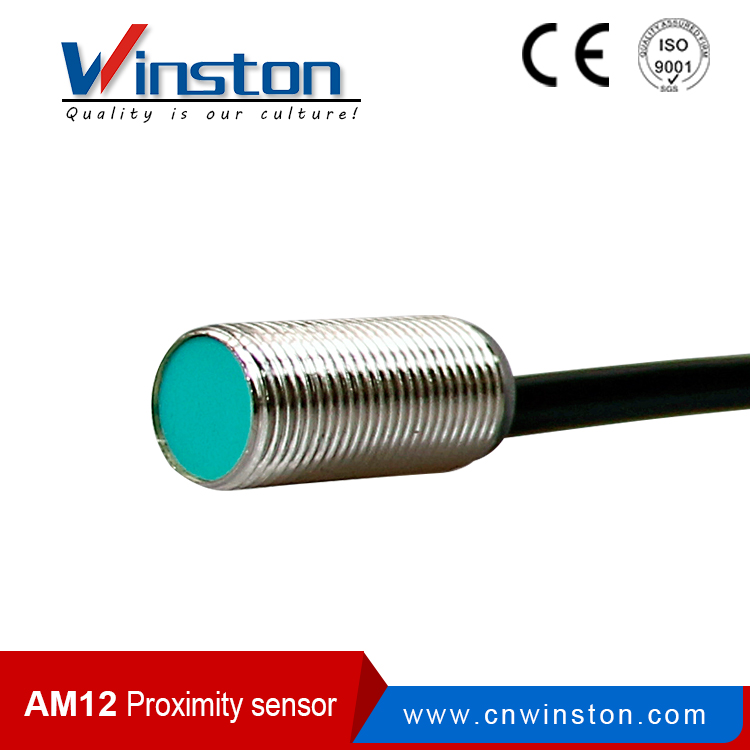

IP67 Am12 Proximity Safety Explosion-Proof Namur Sensor
* With low-voltage power supply, micro-current output, small volume and other advantages, Mamur sensors can be applied for special places with requirements of explosion proof.
Application
Technical data
| Model | Two-wire normally close , flush | AM12-3002LB |
| Two-wire normally close , non-flush | AM12-3004LB | |
| Specification | Rated Vollage | 8.2V |
| Sensing Range | 4mm | |
| Standard Object Q235 steel(mm) | 12*12*1t | |
| Oscillating /Stop Pscillating Current | ≥2.2mA/≤1mA | |
| load resistance | 1KΩ | |
| Switch frequency, Non-flush | 1KHz | |
| Shell material | Nickel-plated brass | |
| Protection Level | IP67 | |
| working environment temperature | -20ºC~70ºC | |
| External wiring diagram |
Dimension
