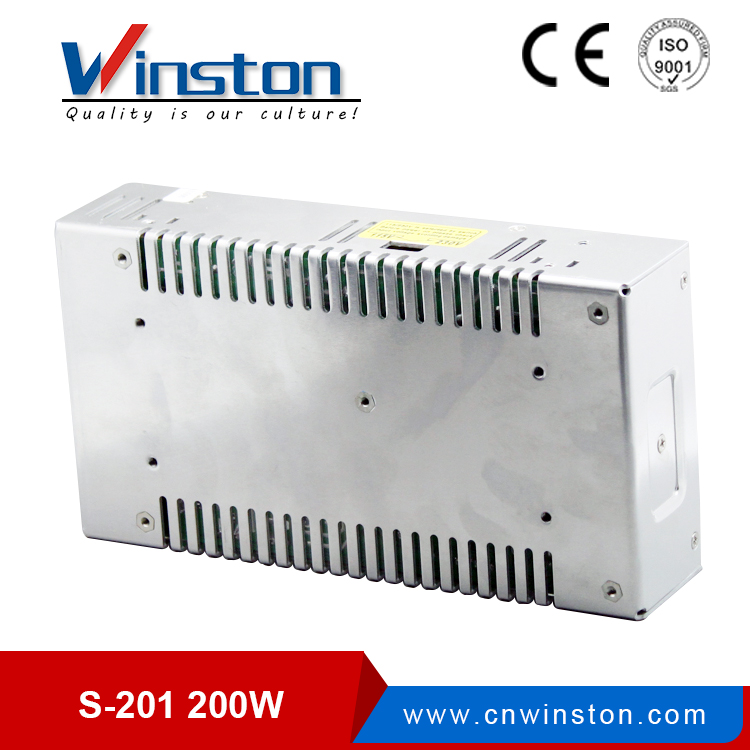

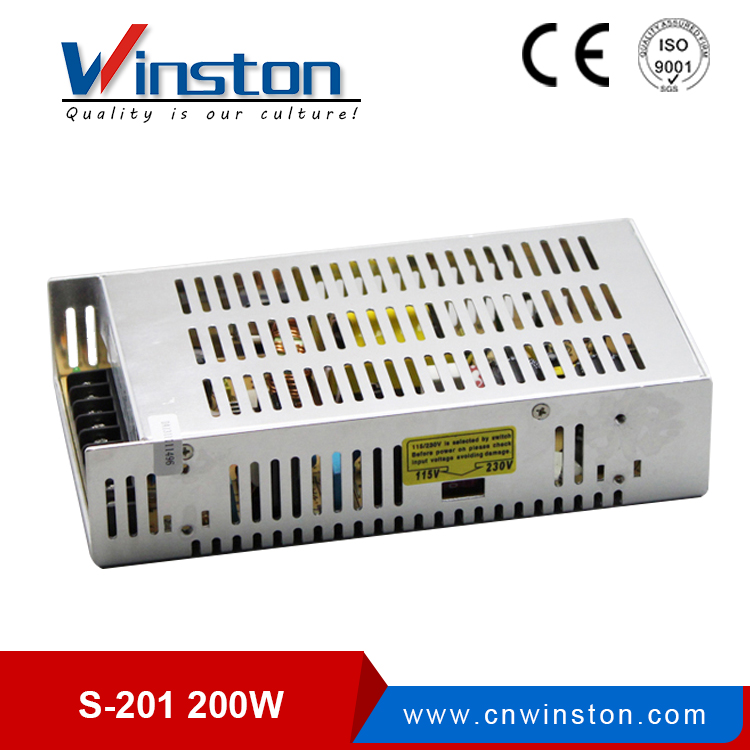

S-201 LED Driver 200W 5V 12V 15V 24V 36V 48V Single Power Supply
Application
Technical data
| Model | S-201-5 | S-201-12 | S-201-15 | S-201-24 | S-201-36 | S-201-48 |
| Specification | ||||||
| DC output voltage | 5V | 12V | 15V | 24V | 36V | 48V |
| DC output current | 0-40A | 0-16.5A | 0-13.4A | 0-8.3A | 0-5.5A | 0-4.2A |
| Wave and noise | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 240mVp-p | 240mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stablity | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 74% | 80% | 80% | 83% | 84% | 84% |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| AC input voltage range | 90-132VAC/180-264VAC by switch 254-370VDC 47~63Hz | |||||
| AC Impact current | Cold-start current 25A/115VAC 50A/230VAC | |||||
| Overload proctection | 105%-135% cut off the output, automatic recovery | |||||
| Over-voltage protection | 115%-145% shut down O/P voltage, re-power on to recover | |||||
| Setup rise hold up time | 200ms, 100ms, 20ms/230VAC at full load | |||||
| Withstand voltage | Input and output internal:1.5KVAC,Input and enclosure:1.5KVAC,Output and enclosure:0.5KVAC | |||||
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | |||||
| Working temperature and humidity | -10°C~+50°C(Refer to output derating curve),20%~90%RH | |||||
| Overall dimension | 215*115*50mm | |||||
| Weight | 0.9Kgs | |||||
Dimension
