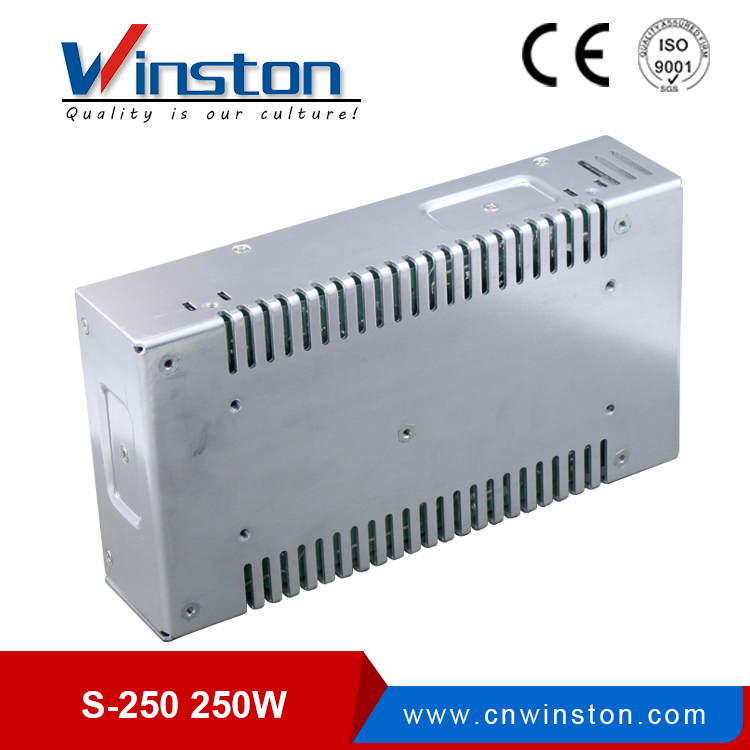

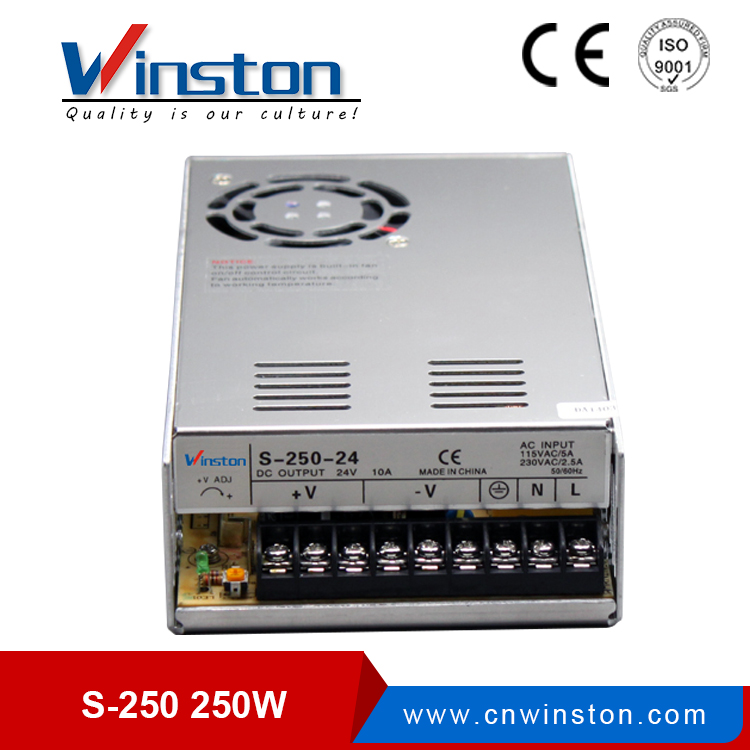

CE S-250 Electrical Equipment 5V 12V 15V 24V 250W Various Power Supply
Application
Technical data
| Model | S-250-5 | S-250-12 | S-250-15 | S-250-24 | S-250-36 | S-250-48 |
| Specification | ||||||
| DC output voltage | 5V | 12V | 15V | 24V | 36V | 48V |
| DC output current | 0-45A | 0-20A | 0-16A | 0-10A | 0-6.7A | 0-5A |
| Wave and noise | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 240mVp-p |
| Inlet stability | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Load stablity | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Efficiency | 74% | 79% | 79% | 81.5% | 84% | 84% |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| AC input voltage range | 90-132VAC/180-264VAC by switch 254-370VDC 47~63Hz | |||||
| AC Impact current | Cold-start current 25A/115VAC 50A/230VAC | |||||
| Overload proctection | 105%-135% cut off the output, automatic recovery | |||||
| Over-voltage protection | 115%-150% shut down O/P voltage, re-power on to recover | |||||
| Setup rise hold up time | 200ms, 50ms, 16ms/230VAC at full load | |||||
| Withstand voltage | Input and output internal:1.5KVAC,Input and enclosure:1.5KVAC,Output and enclosure:0.5KVAC | |||||
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | |||||
| Working temperature and humidity | -10°C~+50°C(Refer to output derating curve),20%~90%RH | |||||
| Overall dimension | 215*115*50mm | |||||
| Weight | 0.95Kgs | |||||
