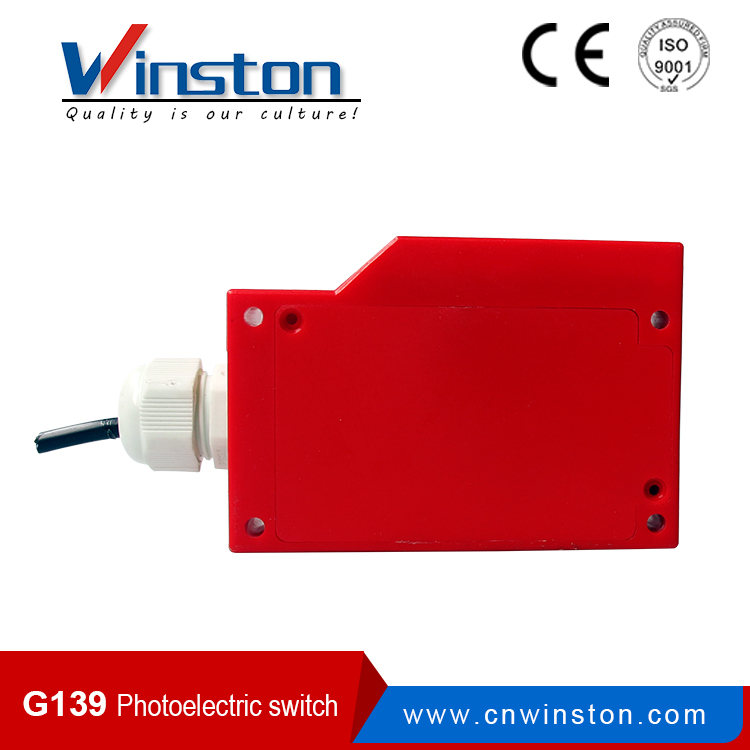

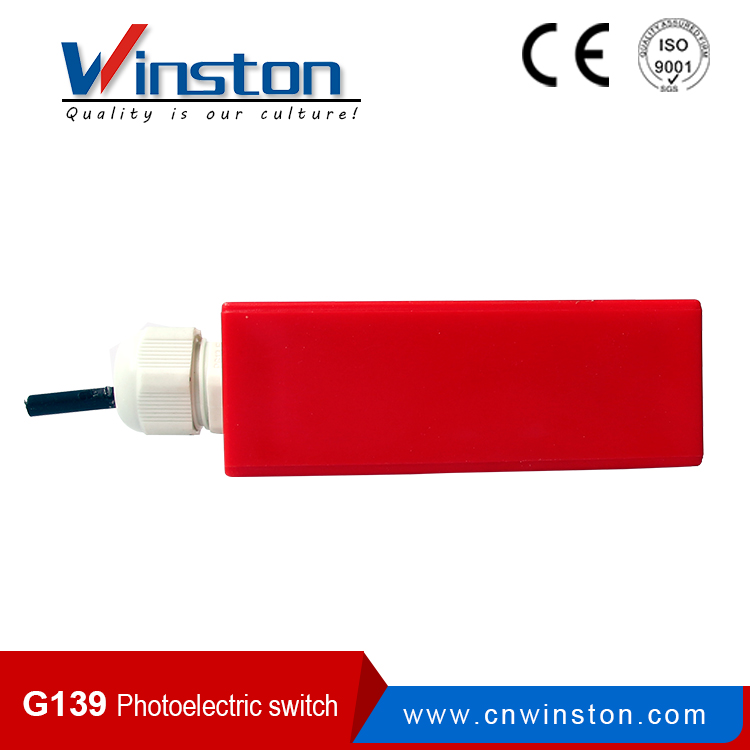

G139 PNP NPN Through Beam 10m Distance Photoelectric Sensor Switch
Other products
 | | |
| | |
Application
Technical data
| Diffuse type | Detection distance | 1m | ||
| DC6~36V | NPN | NO | G139-3A1NA | |
| NC | G139-3A1NB | |||
| NO+NC | G139-3A1NC | |||
| PNP | NO | G139-3A1PA | ||
| NC | G139-3A1PB | |||
| NO+NC | G139-3A1PC | |||
| 90~250VAC | SCR Control label silicon | NO | G139-3A1LA | |
| NC | G139-3A1LB | |||
| Relay output | G139-3A1JC | |||
| Retroreflictive | Detection distance | 5m | ||
| DC6~36V | NPN | NO | G139-3B5NA | |
| NC | G139-3B5NB | |||
| NO+NC | G139-3B5NC | |||
| PNP | NO | G139-3B5PA | ||
| NC | G139-3B5PB | |||
| NO+NC | G139-3B5PC | |||
| 90~250VAC | SCR Control label silicon | NO | G139-3B5LA | |
| NC | G139-3B5LB | |||
| Relay output | G139-3B5JC | |||
| Trough beam | Detection distance | 10m | ||
| DC6~36V | NPN | NO | G139-3C101NA | |
| NC | G139-3C101NB | |||
| NO+NC | G139-3C101NC | |||
| PNP | NO | G139-3C101PA | ||
| NC | G139-3C101B | |||
| NO+NC | G139-3C101PC | |||
| 90~250VAC | SCR Control label silicon | NO | G139-3C101LA | |
| NC | G139-3C101LB | |||
| Relay output | G139-3C101JC | |||
| DC/SCR Control output | DC: 200mA |
| DC/AC Consumption current | DC<15mA |
| DC /AC Response time | DC<2ms |
| Directional angle | 3°-10° |
| Detected object | transparent or opaque body |
| Working environment temperature | -25°C~+55°C |
| Intensity of illumination of working environment | Sunlight under 10000LX, Incandescent lamp under 3000LX |
| Shell material | Aluminum / Plastic |
| Protection grade | IP54 |
Dimension
