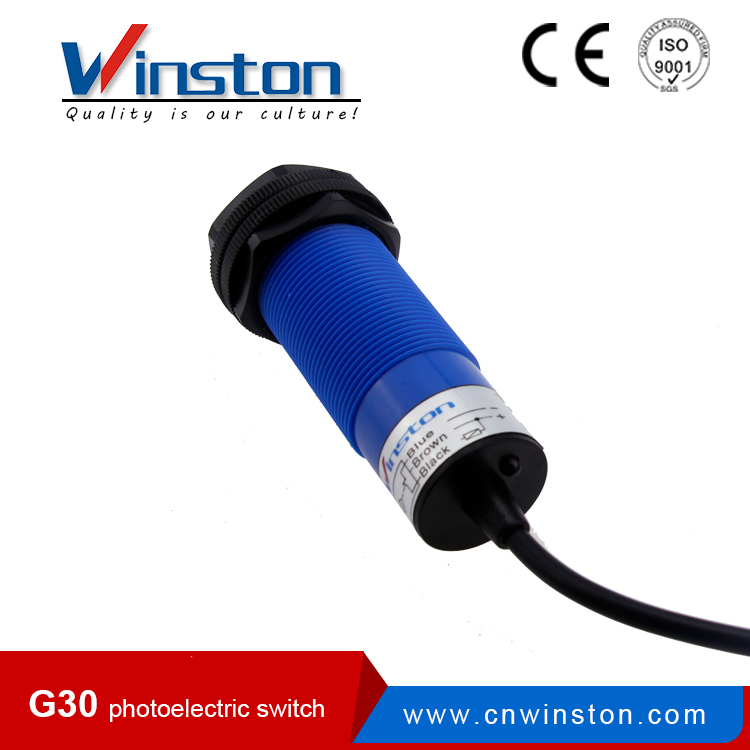

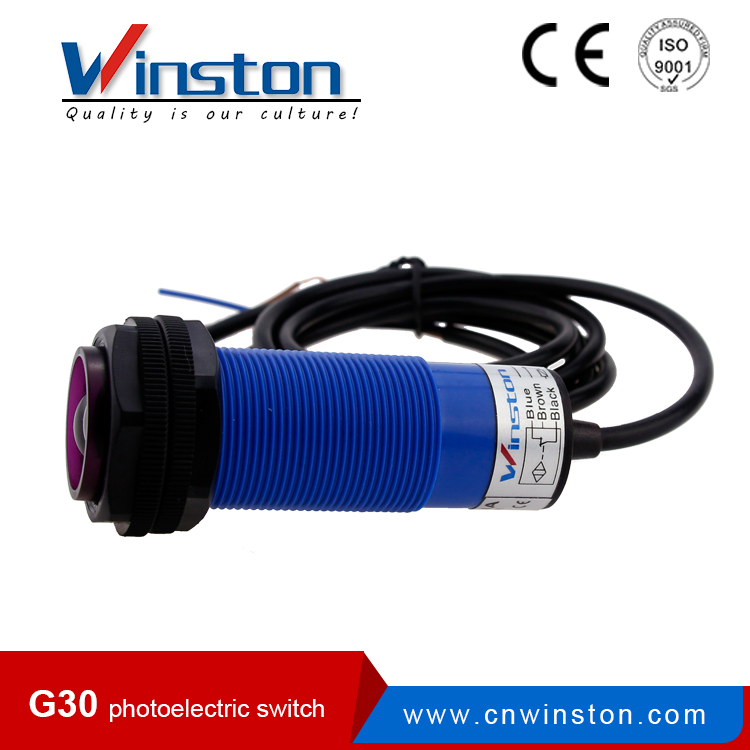

CE G30 Infrared IP66 AC 90-250V Electric Photoelectric Sensor Switch
Other products
 | | |
| | |
Application
Technical data
| Diffuse type | Detection distance | 70cm | ||
| DC6~36V | NPN | NO | G30-3A70NA | |
| NC | G30-3A70NB | |||
| NO+NC | G30-3A70NC | |||
| PNP | NO | G30-3A70PA | ||
| NC | G30-3A70PB | |||
| NO+NC | G30-3A70PC | |||
| 90~250VAC | SCR Control label silicon | NO | ||
| NC | ||||
| Retroreflictive | Detection distance | 3m | ||
| DC6~36V | NPN | NO | G30-3B3NA | |
| NC | G30-3B3NB | |||
| NO+NC | G30-3B3NC | |||
| PNP | NO | G30-3B3PA | ||
| NC | G30-3B3PB | |||
| NO+NC | G30-3B3PC | |||
| 90~250VAC | SCR Control label silicon | NO | ||
| NC | ||||
| Trough beam | Detection distance | 10m | ||
| DC6~36V | NPN | NO | G30-3C101NA | |
| NC | G30-3C101NB | |||
| NO+NC | G30-3C101NC | |||
| PNP | NO | G30-3C101PA | ||
| NC | G30-3C101PB | |||
| NO+NC | G30-3C101PC | |||
| 90~250VAC | SCR Control label silicon | NO | ||
| NC | ||||
| DC/SCR Control output | DC: 200mA |
| DC/AC Consumption current | DC<15mA |
| DC /AC Response time | DC<2ms |
| Directional angle | 3°-10° |
| Detected object | transparent or opaque body |
| Working environment temperature | -25°C~+55°C |
| Intensity of illumination of working environment | Sunlight under 10000LX, Incandescent lamp under 3000LX |
| Shell material | Plastic |
| Protection grade | IP66 |
Dimension
