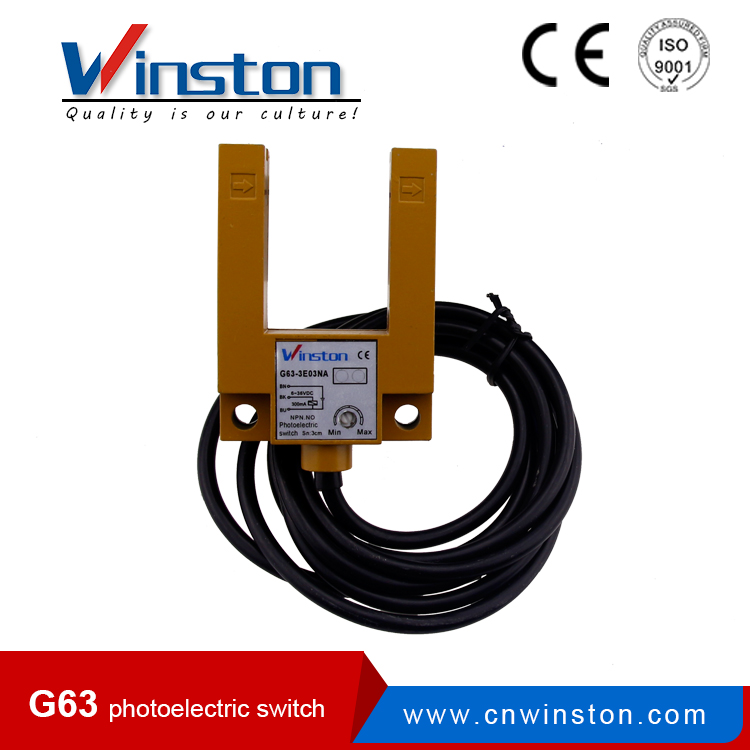

Manufacturer G63 DC 10-30V NO NC Trough Beam Photoelectric Switch
Application
Technical data
| Diffuse type | Detection distance | |||
| DC6~36V | NPN | NO | ||
| NC | ||||
| NO+NC | ||||
| PNP | NO | |||
| NC | ||||
| NO+NC | ||||
| 90~250VAC | SCR Control label silicon | NO | ||
| NC | ||||
| Retroreflictive | Detection distance | |||
| DC6~36V | NPN | NO | ||
| NC | ||||
| NO+NC | ||||
| PNP | NO | |||
| NC | ||||
| NO+NC | ||||
| 90~250VAC | SCR Control label silicon | NO | ||
| NC | ||||
| Trough beam | Detection distance | 3m | ||
| DC6~36V | NPN | NO | G63-3E03NA | |
| NC | G63-3E03NB | |||
| NO+NC | G63-3E03NC | |||
| PNP | NO | G63-3E03PA | ||
| NC | G63-3E03PB | |||
| NO+NC | G63-3E03PC | |||
| 90~250VAC | SCR Control label silicon | NO | ||
| NC | ||||
| DC/SCR Control output | DC: 200mA |
| DC/AC Consumption current | DC<15mA |
| DC /AC Response time | DC<2ms |
| Directional angle | 3°-10° |
| Detected object | transparent or opaque body |
| Working environment temperature | -25°C~+55°C |
| Intensity of illumination of working environment | Sunlight under 10000LX, Incandescent lamp under 3000LX |
| Shell material | Plastic, metal |
| Protection grade | IP54 |
Dimension
