Portable 10lbs dcp empty fire extinguishers
Features and Applicated :
* Ammonium Phosphate Chemical powder ABC
* Sodium Bicarbonate Chemical powder BC
Suitable for combating fires
Combustible Solids, Flammable Liquids and Gas, Live Electrical Equipment
easier clean up after fire
| 1.10lbs empty fire extinguisher main specification: |
| POWDER | EMPTY | |||||||
| CYLINDER SIZE: DIA*HEIGHT | Seamless, D135*H455mm | |||||||
| CYLINDER THREAD | M30*1.5 | |||||||
| BOTTOM SHAPE | CE point | |||||||
| THICKNESS | 1.2mm | |||||||
| VALVE | Brass body stamp "CE", without hanger loop, smalle handle | |||||||
| GAUGE | Dia 37mm, thread: NPT 1/8"", surface 13.71, 195psi | |||||||
| HOSE | PVC, Thread: M16*1.5, Length: 510mm | |||||||
| SIPHON TUBE | PVC, Thread: M16*1.5, Length: 410mm | |||||||
| WALL HANGER | Steel wall hanger | |||||||
| CYLINDER PAINTING | 7325 Red Painting | |||||||
| TEMPERATURE RANGE | -20°C~+55°C | |||||||
| WORKING PRESSURE | 14Bar | |||||||
| TEST PRESSURE | 27Bar | |||||||
| DISCHARGE TIME | ≥ 14S | |||||||
| DISCHARGE RANGE | ≥ 4M | |||||||
| 2.10lbs empty fire extinguisher details and accessories: |
Technical Data :
Capacity : 4.5+0.05kg
Discharge Time : > 14s
Discharge Range : > 4m
Temperature Range : -20°C ~ +55°C
Working Pressure : 14Bar
Test Pressure : 27Bar
Certificate : ISO, CE Approval
Accessories :
Red small handle,chrome plated valve,with hanger,with the word of "CE"
PVC hos,thead M16*1.5,length 510mm
PVC siphon tube M16*1.5*410mm
Spring gauge,37mm type,thread NPT1/8,surface 13.71,195psi
Red plastic sealing
steel wall hanger

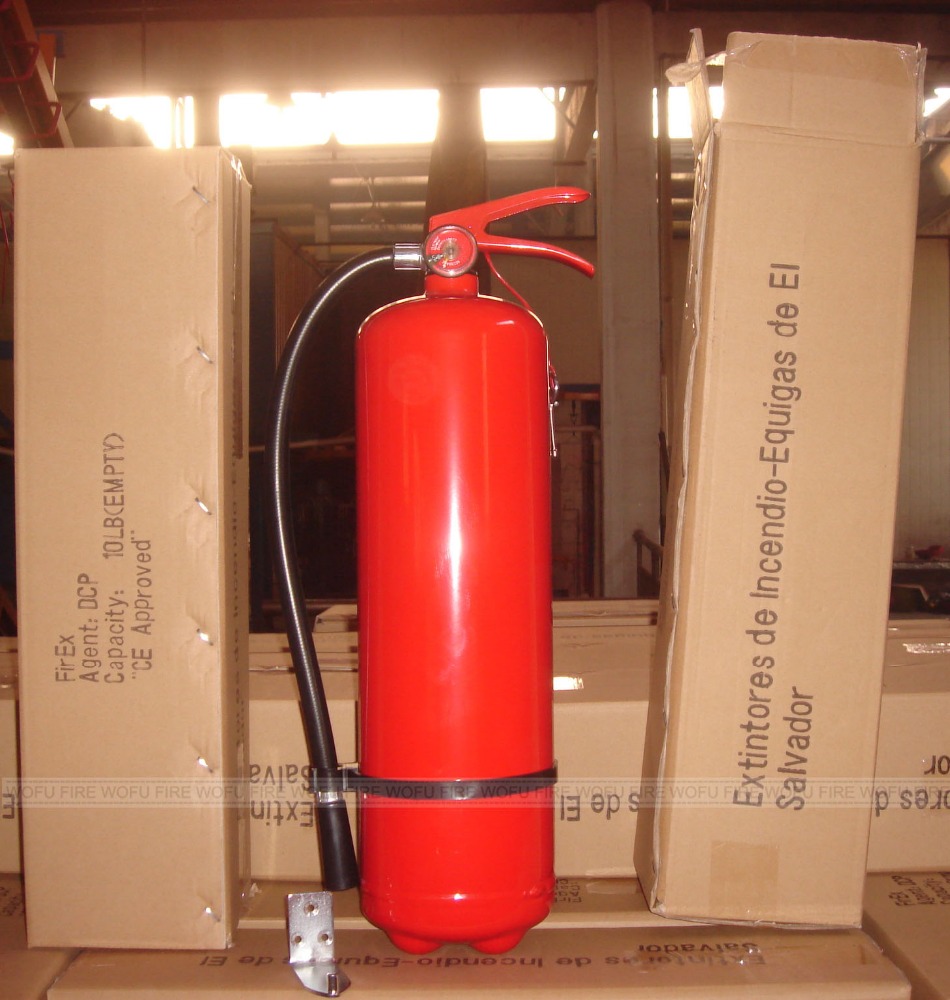

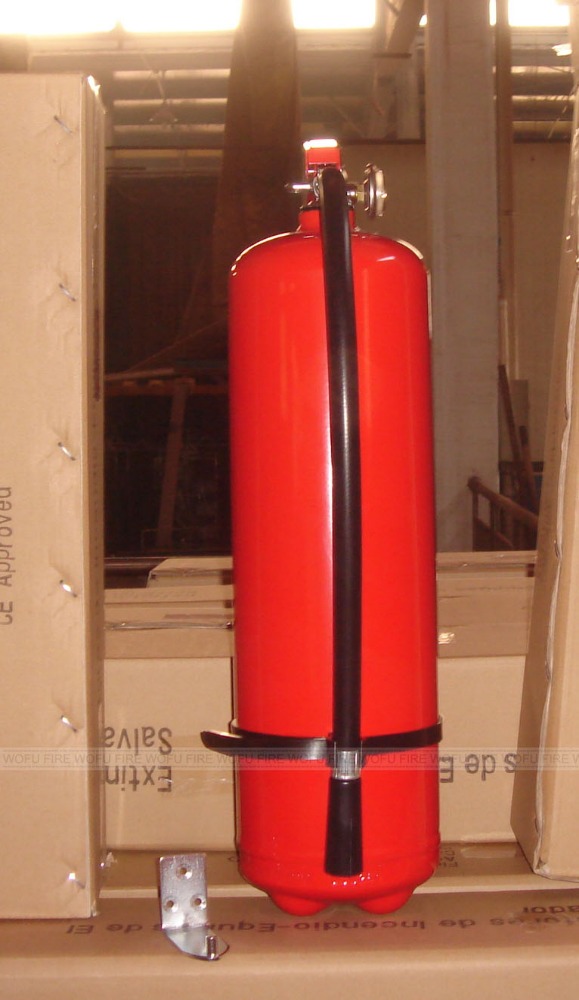

| 3.10lbs empty fire extinguisher packing photos: |
Each fire extinguisher packing with PE bag,check all accessories before put into carton.
