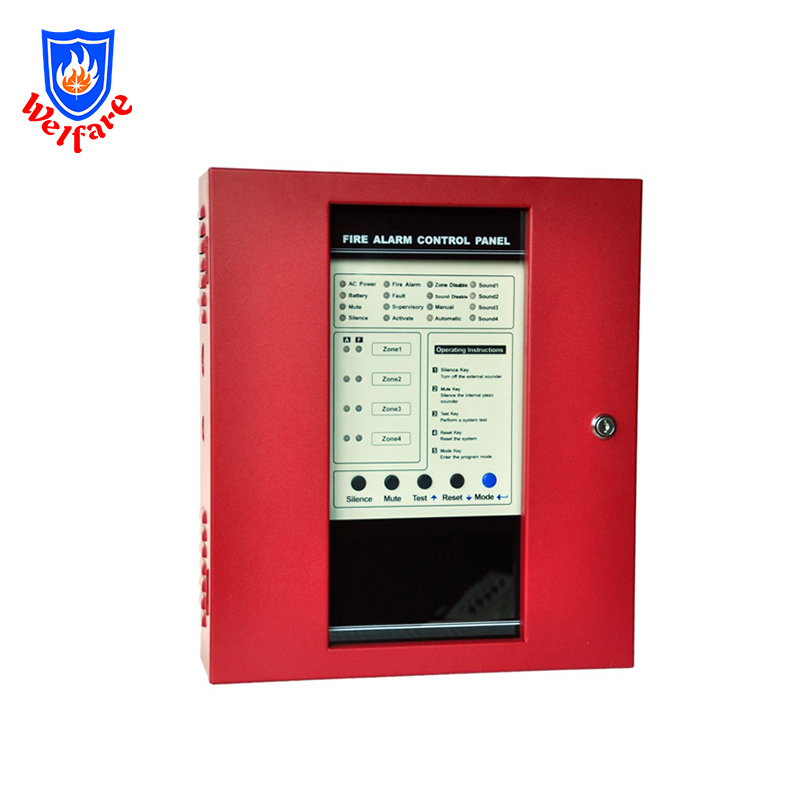

Conventional Fire Alarm Control Panel 8 zone
| 1.Fire alarm control panel introduction: |
The CK1000 series conventional fire alarm control panel is a 24 volt,four,eight,sixteen zone,class B,conventional fire alarm control panel.Designed exclusively to meet the latest market requirements and future ULC codes,the highly cost-effective CK1000 series can be used in a variety of low to midsized applications.
| 2.Fire alarm control panel key specification: |
· Input voltage: 240VAC (50Hz/60Hz) +/-10%
· Battery: 24VDC
· Charging voltage protection: 1.6Ah glass fuse
· Sounder output: 24V nominal EOL 10K resistor
· Auxiliary contacts: 30VDC, 1A max. NC/NO
· Main supply protection: glass fuse
· Sounder protection: 2 x 500mA glass fuse
· Reverse battery protection: charger glass fuse
· Zone EOL: 5.6K resistor
· Color: ivory
· Zoned visual red alarm and yellow trouble indicators
· Continuous signal during alarm
· Built-in battery charger
· Low / no power and battery detection
· Automatic loading and testing of battery
· Battery lead reversal protection
· Evacuate (alarm resound)
· LED test
| 3.Fire alarm control panel how to work: |

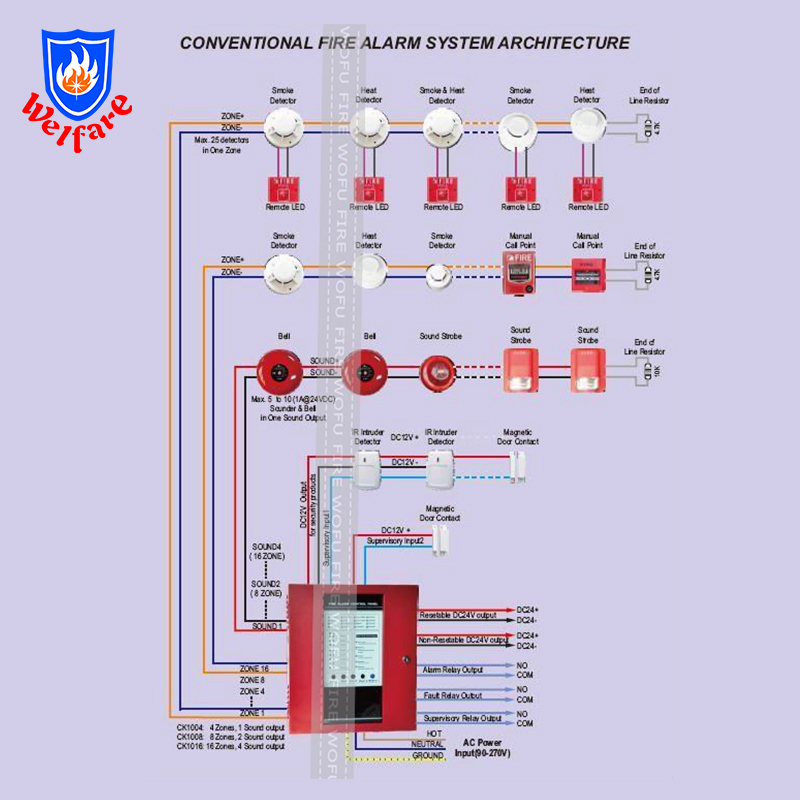

Connect with smoke detetor,heat detector,siren and manual button,fire fighting.
| Features : | |
| 1. 4 zone, 8 zone,16 zone optional | |
| 2. All zones accept conventional detectors and any normally open | |
| 3. Max 25pcs conventional detectors in one zone | |
| 4. Support auto/manual for test | |
| 5. Each Zone can be disabled | |
| 6. Support backup battery | |
| Technical specification : | |
| AC Power | |
| Power | 110-270V AC 50 /60 Hz |
| Wire size | minimum #14 AWG (2.0 mm2) with 600V insulation |
| Battery (lead acid only) | |
| Maximum Charging Circuit | Normal Flat Charge—27.6V @ 0.8 amp |
| Maximum Charger Capacity | 18 Amp Hour batter |
| Sound Output Device Circuits | |
| General Alarm Zones 1 through 16 | |
| Operation: All zones Class B | |
| Normal Operating Voltage | Nominal 24 VDC (ripple = 100 mV maximum) |
| Alarm Current | 15 mA threshold |
| Short Circuit Current | 42 mA maximum |
| Maximum Loop Resistance | 100 ohms |
| End-of-Line Resistor | 4.7K, ½ watt |
| Detector Loop Current is sufficient to ensure operation of two alarmed detectors per zone | |
| Standby Current | 7.26 mA |
| Three Relays Output | |
| Relay contact rating | 2.0 amps @ 30 VDC (resistive), 2.0 amps @ 30 VAC (resistive) |
| Nonresettable 24 VDC Power | |
| Maximum ripple voltage | 10 mVRMS |
| Operating Voltage nominal 24 volts | |
| Total DC current available from this output is up to 500 mA | |
| Recommended maximum Standby current is 150 mA | |
