| 1. How many models we have ? | |||||||
| Capacity: 1KG, 2KG, 3KG, 4KG, 5KG, 6KG, 8KG, 9KG, 12KG | |||||||
| available types might be decided the price and quality choices. | |||||||
| 2. Product Specification of 1KG BC Fire Extinguisher | |||||
| Cylinder Size: Diameter 90mm, Height 240mm | |||||
| Thickness: 0.9mm | |||||
| Neck Ring: M30*1.5 | |||||

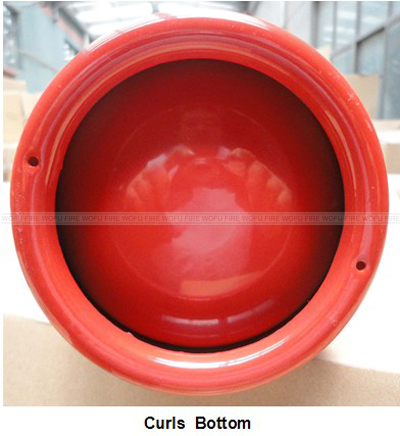

| Bottom Shape: Curls base | |||||
| 3. Component of 1KG BC Fire Extinguisher | ||||||||||
| Brass valve, Pressure gauge, White nylon nozzle, Tamper sealing, Red steel bracket, PVC siphon tube. | ||||||||||
| 4. Packing Detail of 1KG BC Fire Extinguisher | |||||
| 10PCS/CTN | |||||
| Size: 49*19*32cm | |||||
| G.W: 19.5KG | |||||
| CBM: 0.03 | |||||
| Pakistan Type 1KG BC Fire Extinguisher | ||||||
| Name and Description | Technical Specification | |||||
| Filling Agent | ABC 40% | |||||
| Cylinder Size | Seamless, D90*H240mm | |||||
| Thickness | 0.9mm | |||||
| Neck Ring | M30*1.5 | |||||
| Bottom Shape | Curls base | |||||
| Valve | Brass valve w/o hanger loop, small handle | |||||
| Gauge | Diameter: 25mm, thread: M8*1 | |||||
| Nozzle | White nylon nozzle | |||||
| Siphon Tube | PVC, M16*1.5*200mm | |||||
| Bracket | Steel red bracket | |||||
| Tamper Sealing | Yellow plastic, 250mm length | |||||
| Painting Color | Red 7325 painting | |||||
| Temperature Range | -20°C ~ + 55°C | |||||
| Working Pressure | 14Bar | |||||
| Test Pressure | 27Bar | |||||
| Discharge Time | ≥ 8S | |||||
| Discharge Range | ≥ 3M | |||||
| Suitable Fire | 21B C | |||||
