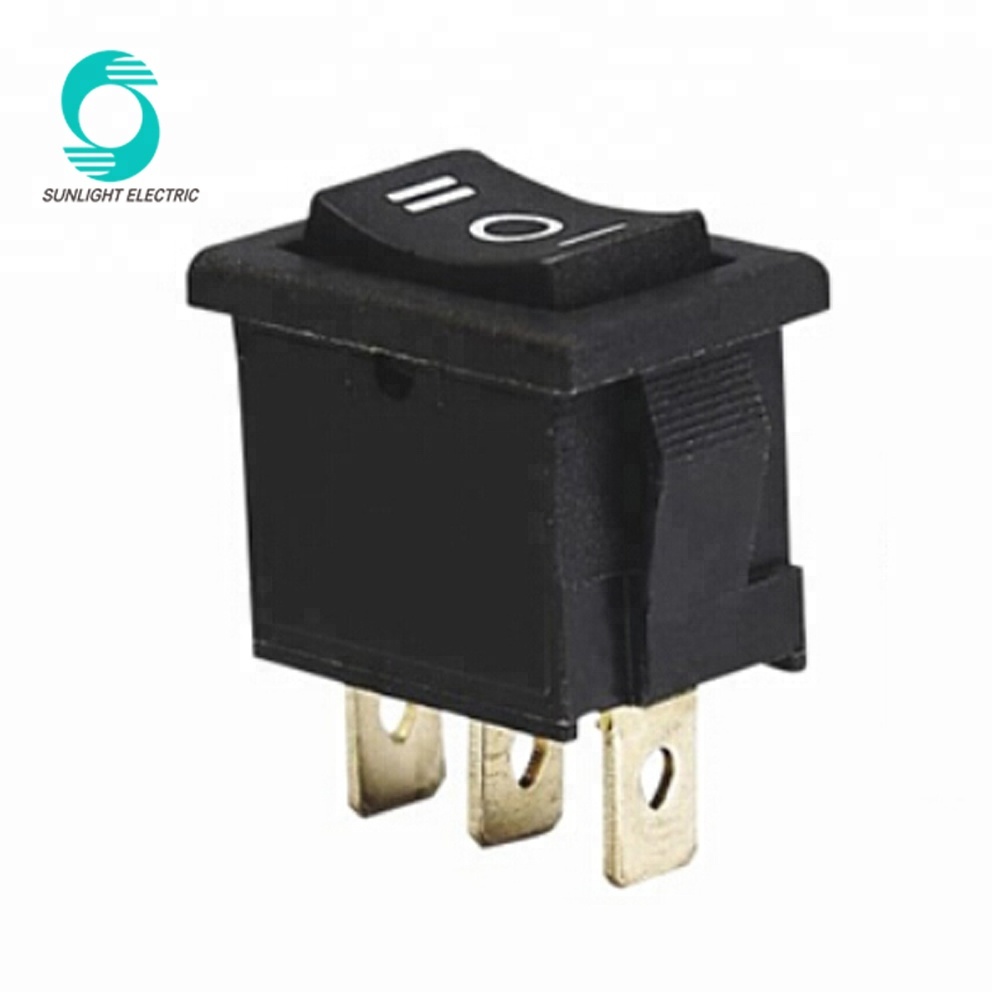

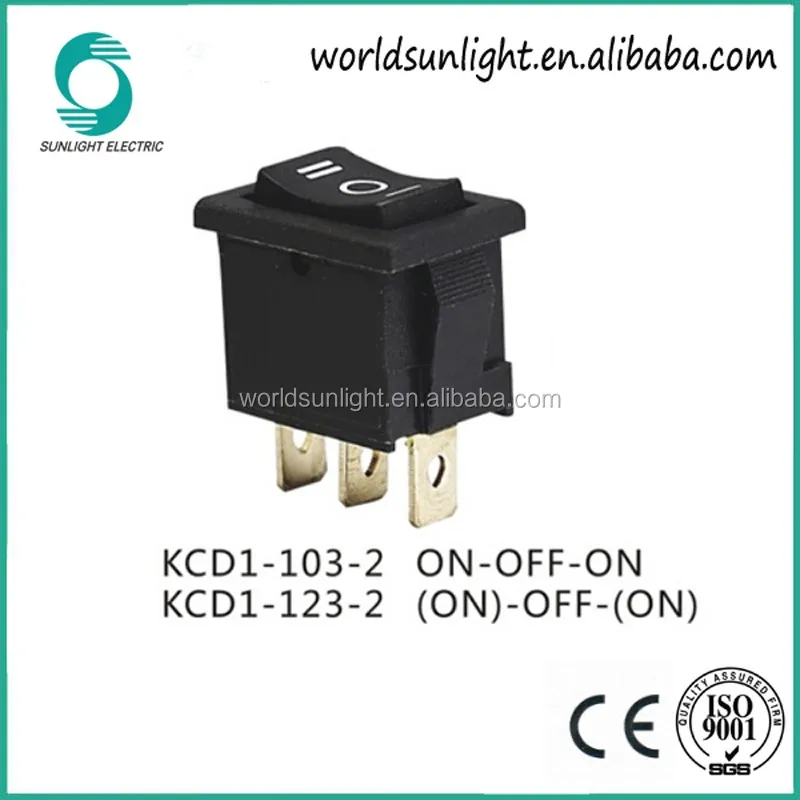

Sub-miniature type KCD1-123-2 3 way on off on momentary rocker switch
 |
Specificaton:
1.CE CQC approved.;
2.6A 250VAC;10A 125VAC;
3.function: on-off,on-on, On-off-on or on/off with light .2 or 3 PINS;
4.Material:Base plastic---Nylon 66;Button plastic---PC or Nylon 66;
Copper parts such as terminal----Copper H62;
Terminal surface treatment----- tin plating;
Contact----silver on copper ;
Spring----Tungsten steel;
Waterproof cap----PVC (It has waterproof cap if required. )
5. Material:Silver Contact,PC,PA66;
6.The appliance switches are widely used in household electrical equipments and office facility , the multimedia products and the electromotional instruments field etc.
Sub-miniature type KCD1-123-2 3 way on off on momentary rocker switch
Model Introduction:
|
Technical Parameter:
RATING: | 6A 250VAC;10A 125VAC |
MECHANICAL LIFE: | >50000 CYCLES |
ELECTRICAL LIFE | >10000 CYCLES |
CONTACT RESISTANCE | < 35MΩ |
INSULATION RESISTANCE | >500VDC 100MΩ |
WITHSTAND VOLTAGE | >1500V/MINUTE |
AMBIENT TEMPERATURE | -10°C~+85°C |
STORAGE TEMPERATURE | -25°C~+85°C |
Sub-miniature type KCD1-123-2 3 way on off on momentary rocker switch
Demension:
|
Sub-miniature type KCD1-123-2 3 way on off on momentary rocker switch
You can clip the following pictures for much more rocker switches.
Or you can send me the inquiry directly.
We can supply High quality/best price rocker switches!
|
|
|
|
Sub-miniature type KCD1-123-2 3 way on off on momentary rocker switch
We will pack as standard exporting cartons or can be customized.
|
Sub-miniature type KCD1-123-2 3 way on off on momentary rocker switch
Payment:
1.Payment: Paypal, Western Union, T/T
2.Port of loading: Ningbo,Wenzhou or Shanghai Port
3.Discounts: offered based on order quantities
4.Delivery time: 3-30 days according to order quantities.
Feedback:
We WARMLY appreciate your positive feedback. We value our customers so much.If you have any problem, PLEASE FEEL FREE and DON"T HESITATE TO CONTACT US BY EMAIL IMMEDIATEDLY, we are always there to offer help.
Sub-miniature type KCD1-123-2 3 way on off on momentary rocker switch
Yueqing Xianglang Electric Technology Co., Ltd is a professional manufacturer of industrial electrical products in China.Our primary manufacturing facilities are located in Wenzhou, China.Rocker switch and all kinds of rocker switch with well- equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs.
|
