SUNLIGHT/OEM RT18-32X cylindrical fuse holder with 32A 500V low voltage 10*38mm thermal fuse
Product type: 32A AC 500V fuse
Application: These fuse holders are supporters for fuses with size up to 10 x 38mm.They are capable of working under heat caused by rated current and expected short impacting current up to 32A. It can also function as a
fuse disconnecting swith by multi-phase combination There are twoin/out lines at the RT18 fuse base,providing a power cut function. With anindicator.with an indicator which goes on when the fuse links breaks.Rated insulate voltage up to 500V;Working frequency 50Hz AC; Conventional free air thermal current up to 32A;
Benefits: 1.Safety and protection
2.Simplicity of installation and usage
Product Parameters of RT18-32X cylindrical fuse holder

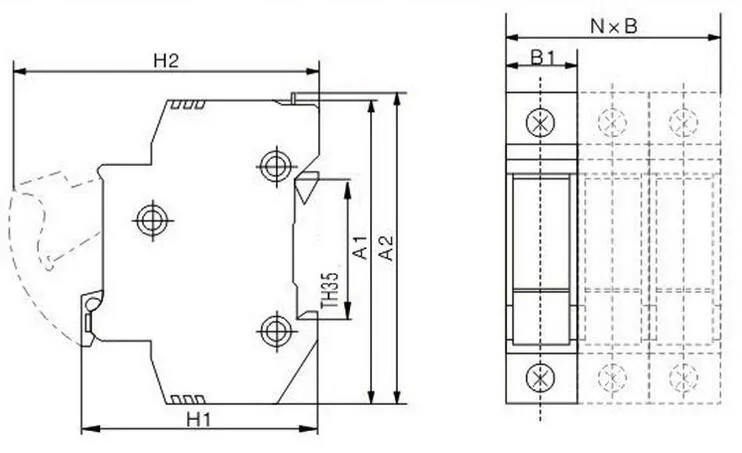

1. Technical parameters of 32A 500V 10x38 RT18-32X cylindrical fuse holder
| Models | A1 | A2 | B1 | H1 | H2 | Weight(g) |
RT18-32 | 79 | 81 | 18 | 62 | 78 | 59 |
| RT18-63 | 79 | 81 | 18 | 62 | 78 | 59 |
| RT18-32X | 103 | 105 | 25 | 77 | 108 | 192 |
| RT18-63X | 103 | 105 | 25 | 77 | 108 | 192 |
| Type | Assorted Fuse | Rated Voltage (V) | Rated Current (A) | Packaging (pcs) |
| RT18-32 1P | 1038 | 380-500 | 32 | 240 |
| RT18-32 2P | 32 | 120 | ||
| RT18-32 3P | 32 | 80 | ||
| RT18-63 1P | 1451 | 63 | 100 | |
| RT18-63 2P | 63 | 50 | ||
| RT18-63 3P | 63 | 33 | ||
| RT18-32(x)1P | 1038 | 32 | 240 | |
| RT18-32(x)2P | 32 | 1203 | ||
| RT18-32(x)3P | 32 | 80 | ||
| RT18-63(x)1P | 1451 | 63 | 100 | |
| RT18-63(x)2P | 63 | 50 | ||
| RT18-63(x)3P | 63 | 36 |

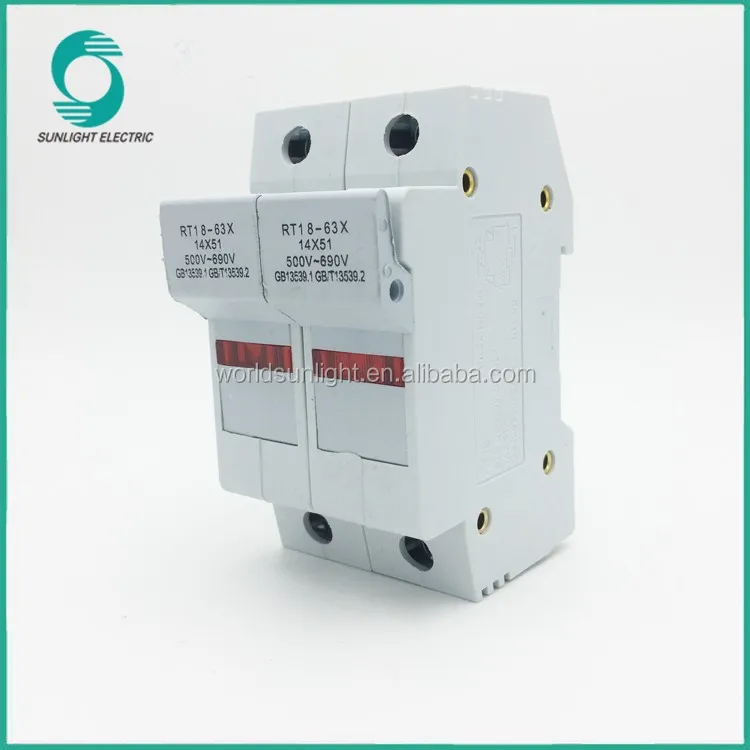

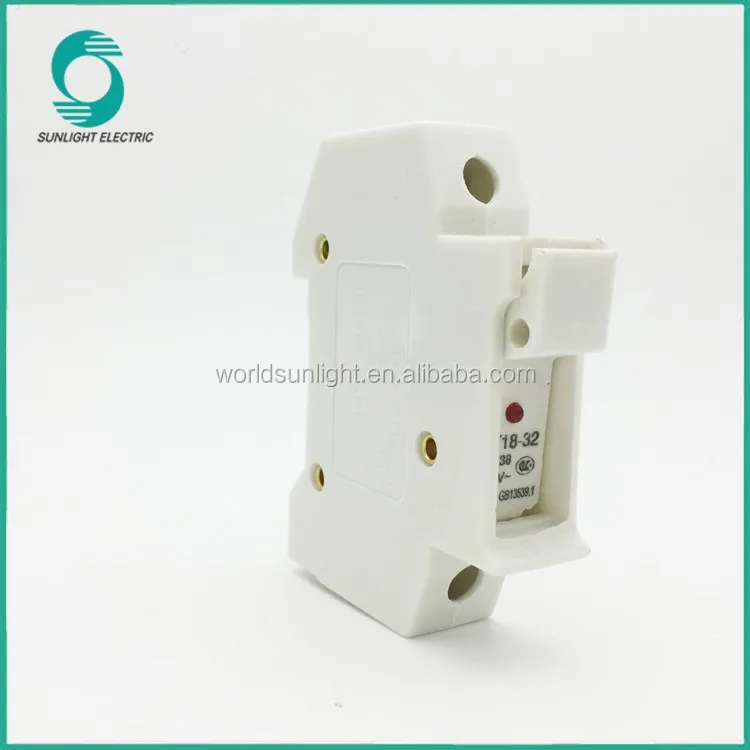

Product Display of RT18-32X cylindrical fuse holder
| |
|
|
| |
| |
|

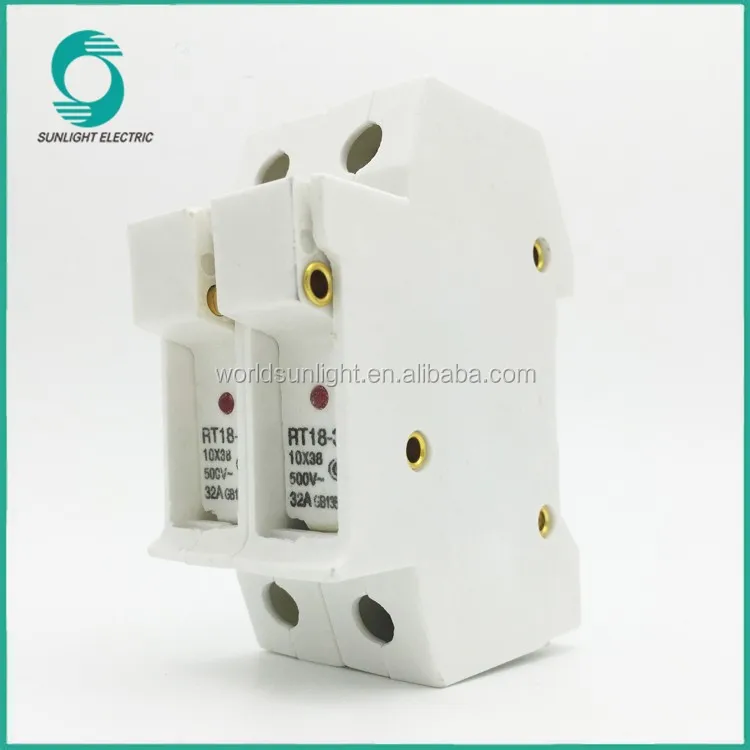

RT18-32X cylindrical fuse holder with 32A 500V low voltage 10*38mm thermal fuse
