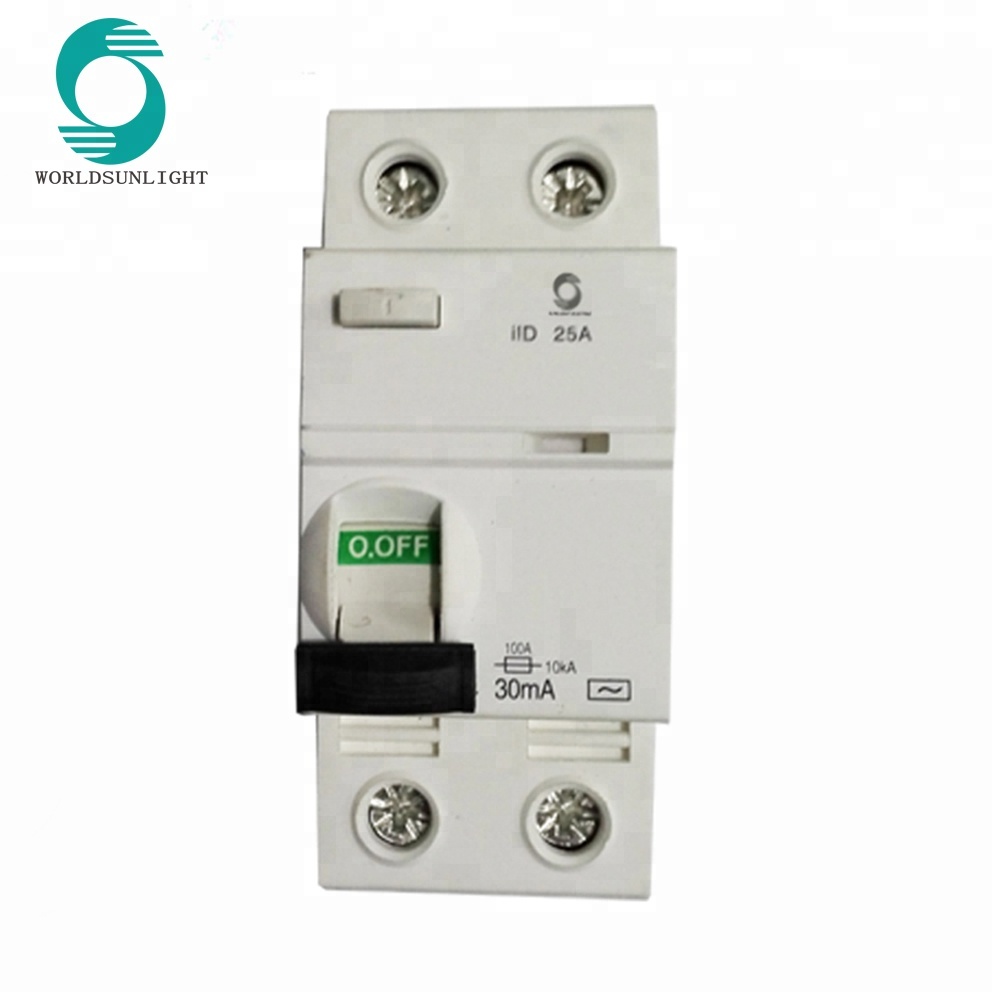

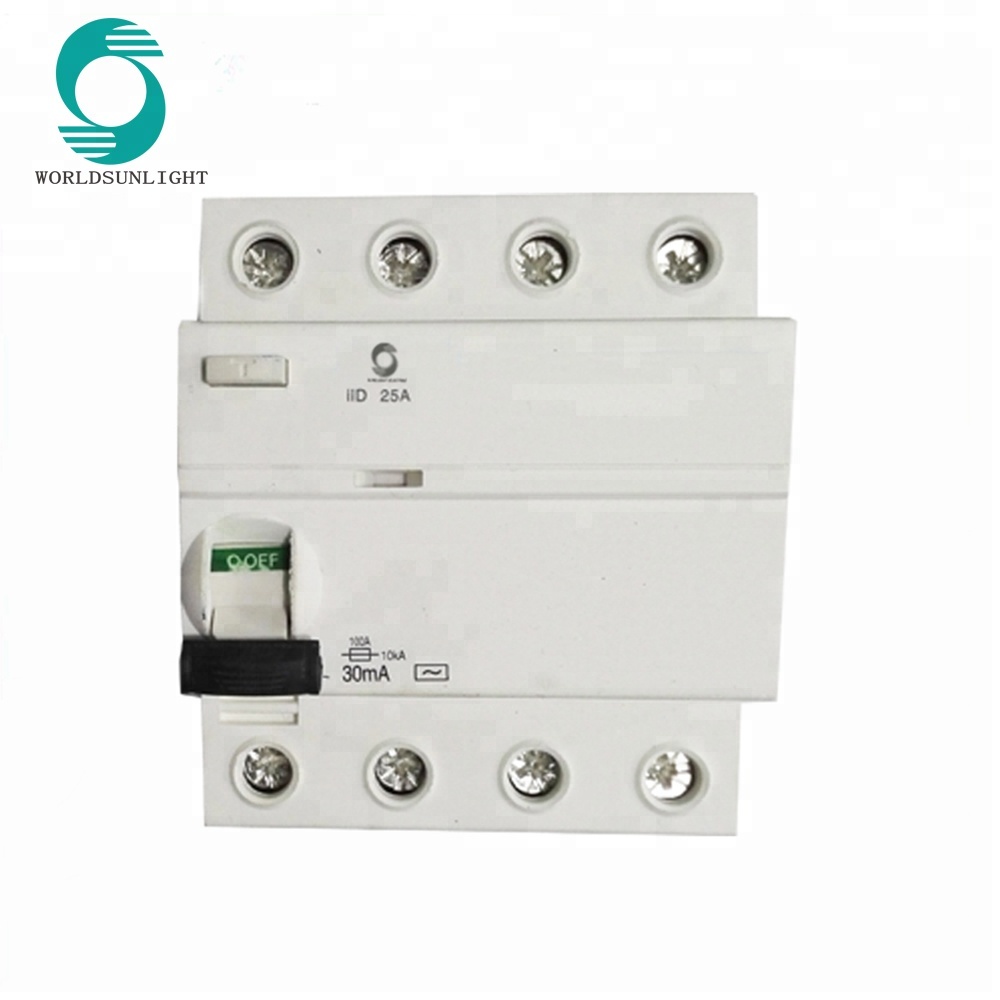

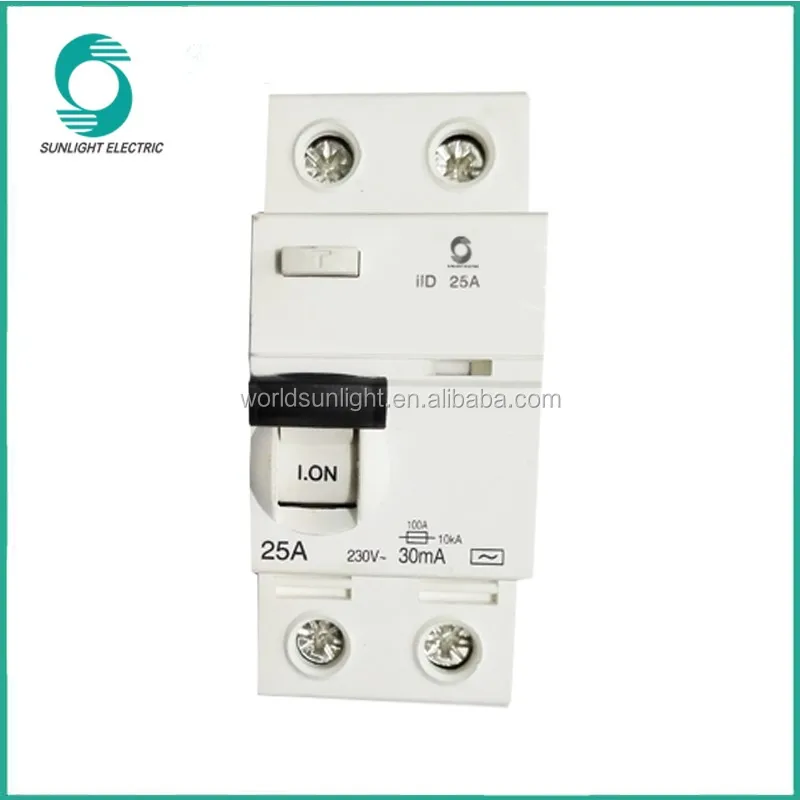

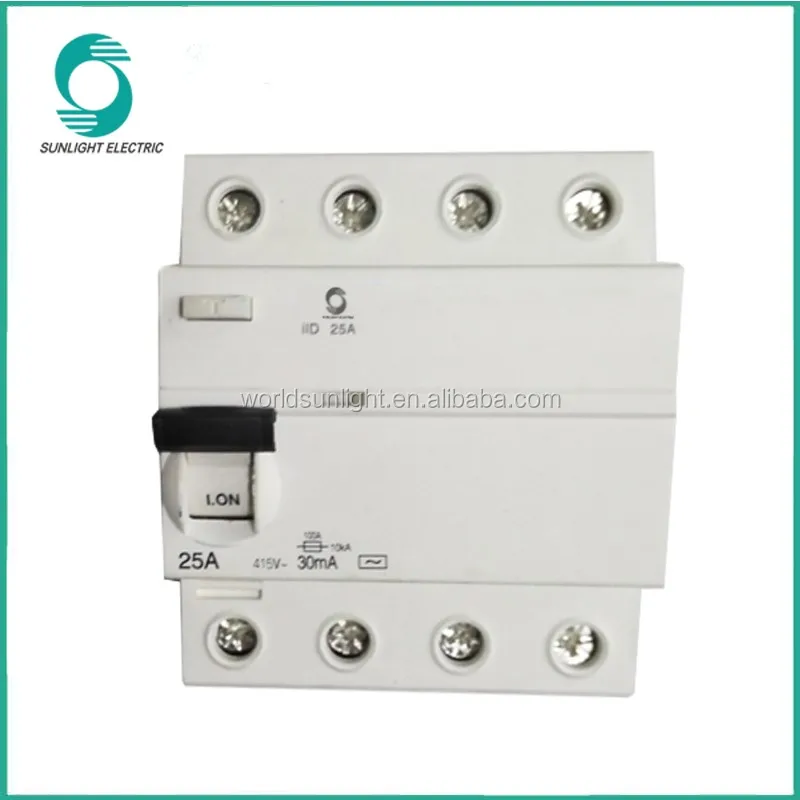

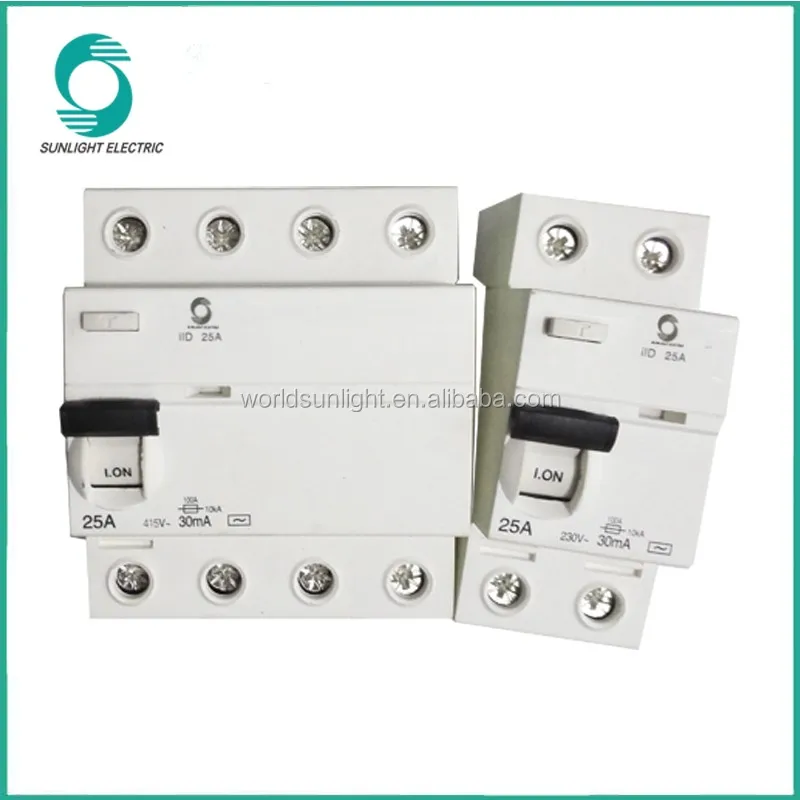

XIID IID iDK model AC type 30ma 100ma 300ma 500ma 16A - 63A 2P 4P residual current circuit breaker rccb
APPLICATION
XIID NEW Series Residual Current operated Circuit-Breakers ( RCCBs ) of the AC type adapted to domestic, public, and industrial fields are used in the distribution systems TT, TN, and IT, in accordance with the rules and regulations in force. The RCCBs together with the earthing system are therefore used to protect people in case of indirect contacts. These devices characterized by a rated residual differential current of 30mA also assure an additional protection in case of direct contacts. In addition to the function of protection against direct or indirect contacts, the residual current operated circuit breakers ( RCCBs ) incorporate a protective function against the danger of fire in the event of insulation breakdown. Compliance with standards of IEC 1008: 1990; BS4293
XIID IID iDK model AC type 30ma 100ma 300ma 500ma 16A - 63A 2P 4P residual current circuit breaker rccb
TECHNICAL DATA
| Number of poles | 2P,4P |
| Rated Current(A) | 16,20,25,40,50,63 |
| Rated Residual Operating Curent(In)(mA) | 30,100,300,500 |
| Rated Voltage(V) | AC230/240 |
| AC400/415 | |
| Residual Operating Current Scope | 0.5n~n |
| Residual Current Off-time | ≤0.3S |
| Short Circuit Capaicity(Icu) | 6000A |
| Endurance | 4000 |
| Protection Ddgree | IP20 |
Any questions, please feel free to contact with me. I will reply within 24 hours.
XIID IID iDK model AC type 30ma 100ma 300ma 500ma 16A - 63A 2P 4P residual current circuit breaker rccb

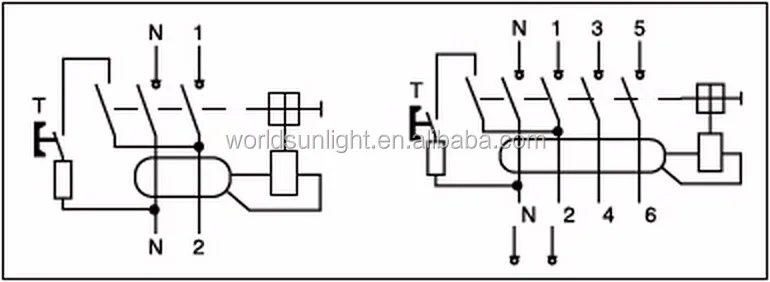

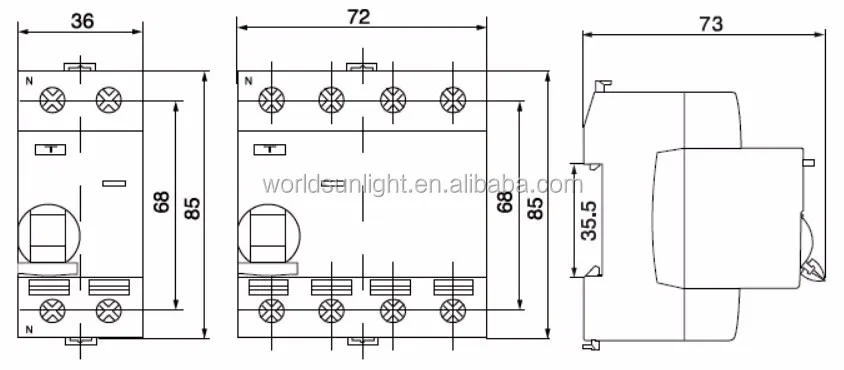

DIMENSION AND WIRING DIAGRAM
 |
|
XIID IID iDK model AC type 30ma 100ma 300ma 500ma 16A - 63A 2P 4P residual current circuit breaker rccb
|
|
|
XIID IID iDK model AC type 30ma 100ma 300ma 500ma 16A - 63A 2P 4P residual current circuit breaker rccb
| |
| DC MCB | MCCB |
| ALL TYPES OF AC MCB |
XIID IID iDK model AC type 30ma 100ma 300ma 500ma 16A - 63A 2P 4P residual current circuit breaker rccb
Packaging Details:
| Item | 2P | 4P | |
| Standard Package | Quantity/ inner carton | 1 | 1 |
Quantity/ master carton | 100 | 50 | |
| International standard export package | |||
Carton Dimensions | L X W X H (cm) | 50x42x19 | 50x42x19 |
| N.W./G.W. | kgs | 21/19 | 19/17 |
Capacity of Container (Pcs) | 20" GP | 70,200 | 35,100 |
| 40" GP | Overweight | Overweight | |
| 40" HQ | Overweight | Overweight | |
Shipping:
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door,
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving,
3. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
|
OUR SERVICE
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested in the reasonable price will be provided to you upon receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit our company and technology communication.
XIID IID iDK model AC type 30ma 100ma 300ma 500ma 16A - 63A 2P 4P residual current circuit breaker rccb
OUR COMPANY
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing of circuit breakers and electronic environmental protection products.We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS,SGS,ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well received by our customers from all over the world.
|
