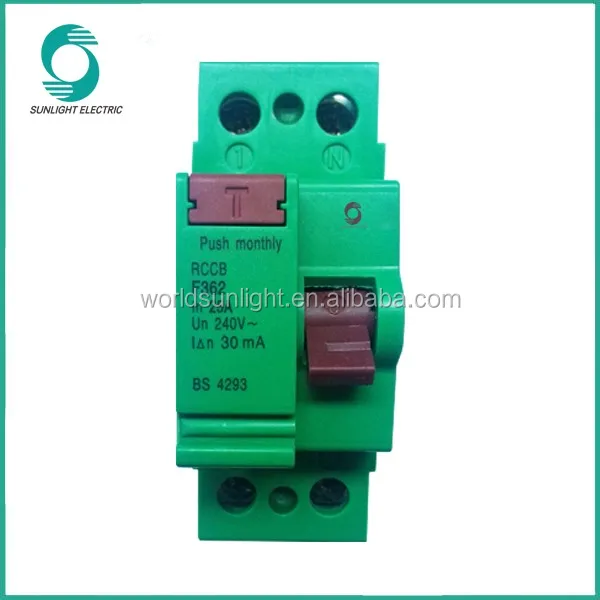

XF360 series F362 30ma 100ma 300ma 500ma 16-100A 2P residual current circuit breaker rccb
APPLICATION & FEATURES
XF360 series residual current circuit breakers (RCCB) are in accordance with the standards of IEC1008-1 and GB16916.1-1997. They are applied to the circuit of AC 50/60Hz, 2P 240V, 4P 415V. They are mainly used for preventing electric fire and personal casual accidents caused by personal electric shock or leakage. They are current-operated and fast leakage protectors of pure electromagnetic types. They can break off fault circuit rapidly in order to avoid occurrence of accidents.The function of switch won"t be influenced by ambient temperature and lighting.
XF360 series F362 30ma 100ma 300ma 500ma 16-100A 2P residual current circuit breaker rccb
TECHNICAL DATA
| Number of Poles | 2P,4P |
| Rated Current (A) | 16,20,25,32,40,50,63,80,100 |
Rated Residual Operating Current (IΔn)(mA) | 10,30,100,300,500 |
| Rated Residual Non-operation Current (IΔno)(mA) | ≤0.5 IΔn |
| Rated Voltage (V) | AC 230/240 |
| AC 400/415 | |
| Residual Operating Current Scope | 0.5IΔn~IΔn |
| Residual Current Off-time | ≤0.3S |
| Endurance | 4000 |
| Protection Degree | IP20 |
Tripping time: 100ms (depends on specifications 5 x In≤40ms)
Ambient temperature: -55 ~ +55oC
Climatic resistance: 550C/28 cycles
Vibration resistance: min. 5g 30min
Life expectance: at least 10,000 operations
Any questions, please feel free to contact with me. I will reply within 24 hours.
XF360 series F362 30ma 100ma 300ma 500ma 16-100A 2P residual current circuit breaker rccb
WIRING DIAGRAM
 |
XF360 series F362 30ma 100ma 300ma 500ma 16-100A 2P residual current circuit breaker rccb
Outline & Installation Dimensions
|
XF360 series F362 30ma 100ma 300ma 500ma 16-100A 2P residual current circuit breaker rccb
|
|
|
XF360 series F362 30ma 100ma 300ma 500ma 16-100A 2P residual current circuit breaker rccb
| |
| DC MCB | MCCB |
| ALL TYPES OF AC MCB |
XF360 series F362 30ma 100ma 300ma 500ma 16-100A 2P residual current circuit breaker rccb
Packaging Details:
| Item | 2P | 4P | |
| Standard Package | Quantity/ inner carton | 1 | 1 |
Quantity/ master carton | 100 | 50 | |
| International standard export package | |||
Carton Dimensions | L X W X H (cm) | 50x42x19 | 50x42x19 |
| N.W./G.W. | kgs | 21/19 | 19/17 |
Capacity of Container (Pcs) | 20" GP | 70,200 | 35,100 |
| 40" GP | Overweight | Overweight | |
| 40" HQ | Overweight | Overweight | |
Shipping:
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door,
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving,
3. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
|
OUR SERVICE
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested in the reasonable price will be provided to you upon receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit our company and technology communication.
XF360 series F362 30ma 100ma 300ma 500ma 16-100A 2P residual current circuit breaker rccb
OUR COMPANY
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing of circuit breakers and electronic environmental protection products.We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS,SGS,ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well received by our customers from all over the world.
|
FAQ
Q1: Are you a manufacturer?
A1:yes. We have 3 years export exprience.
Q2: Delivery time?
A2:Will send the goods out within 72 hours after the order confirmed.
Q3: After Sales Service?
A3: if u have any questions about the receuved product, we will try our best to solve it.
Q4: Return the goods?
A4: If the product really has quality problem, we will accept return the old one and send again.
