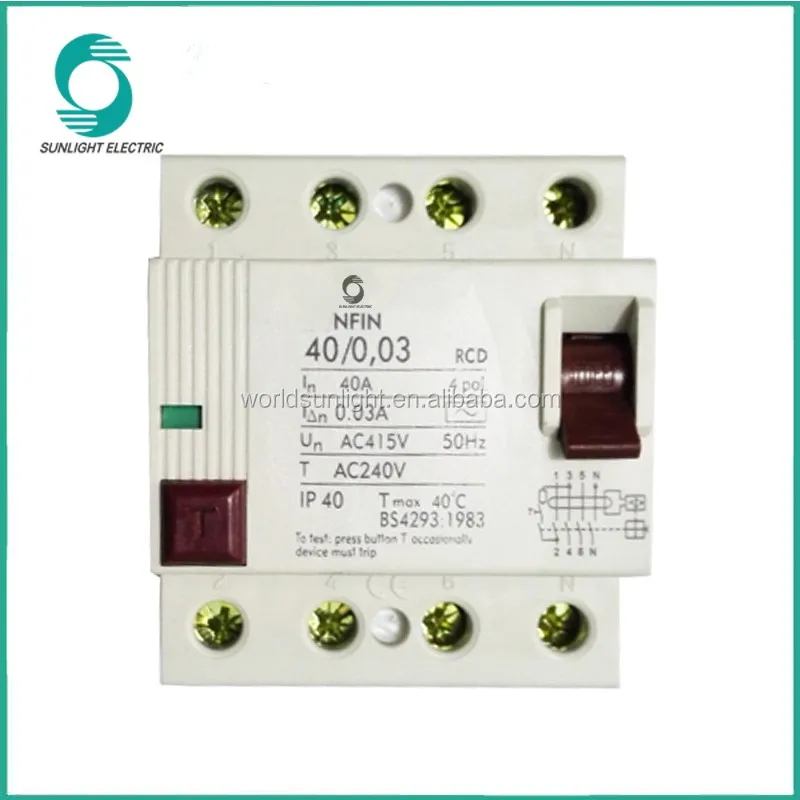

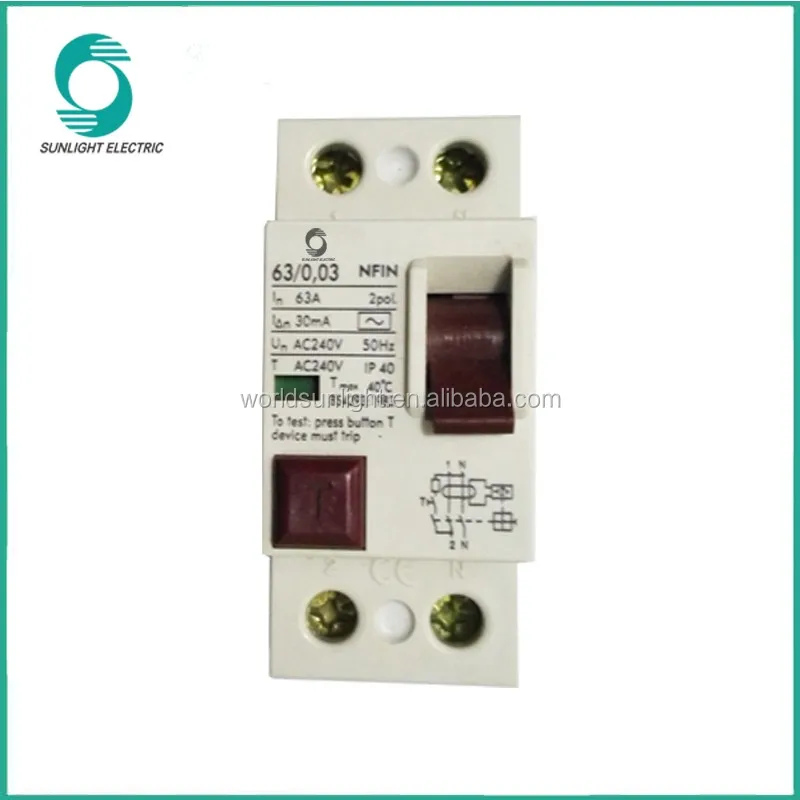

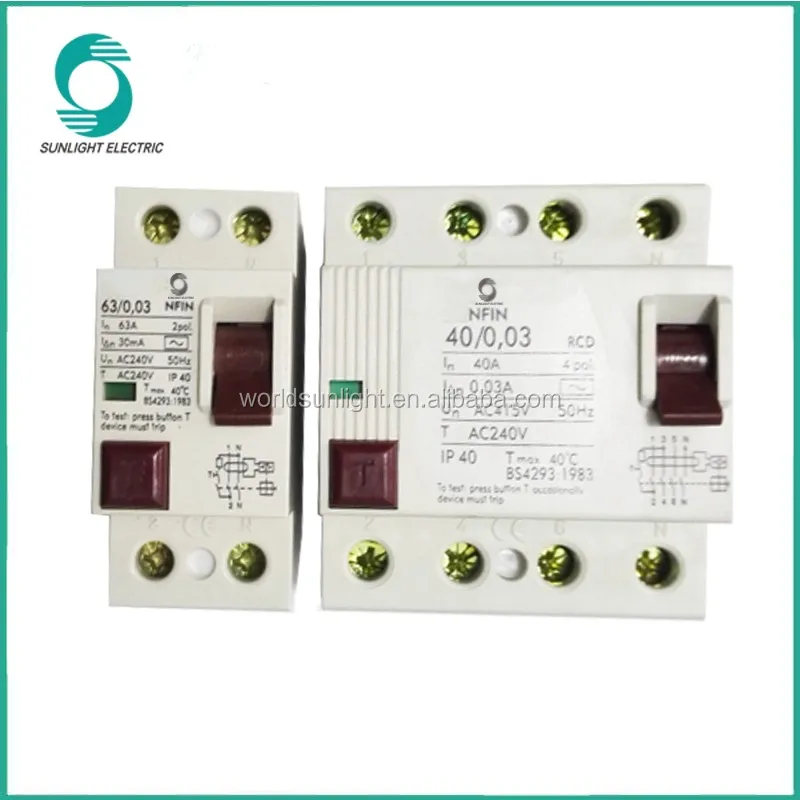

XNFIN series IP40 NFIN 30ma 40a 4 pole Residual Current Device RCD
APPLICATION & FEATURES
The Residual Current Device (RCD)XNFIN is in conformity with the standards of IEC 1008, VDE0664, CEE27 and BS 4293.
It cancut off the fault circuit immediatelyon the occasion of shockhazard or earth leakage of trunk line. Thusit is suitableto avoid the shock hazard and fire causedby earth leakage.
XNFIN RCD is mainly suitable for using in varietiesof plants, enterprises, buildings, constructions, commerce. hotels and families, it can be used in circuits up to single phase 240V, three-phase 415V, 50 or 60Hz.
XNFIN series IP40 NFIN 30ma 40a 4 pole Residual Current Device RCD
TECHNICAL DATA
| Mode | Electro-magnetic type, electronic type |
| Residual current characteristics | A, AC |
| Pole No. | 2, 4 |
| Rated making and breaking capacity | 630A |
| Rated current(A) | 16 25 40 63 80 100A |
| Rated voltage | 240/415V AC |
| Rated frequency | 50/60Hz |
| Rated residual operating current IΔn(mA) | 10, 30, 100, 300, 500 |
| Rated residual non operating current IΔno | 0.5IΔn |
| Rated conditional breaking current Inc | 6000A |
| Rated conditional residual breaking current IΔc | 6000A |
| Tripping duration | Instantaneous tripping≤0.1s |
| Residual tripping current range | 0.5IΔn~IΔn |
| Electro-mechanical endurance | 4000 cycles |
| Connection capacity | Rigid conductor up to 25mm2 |
| Connection terminal | Screw terminal |
| Pillar terminal with clamp | |
| Fastening torque | 2.0 Nm |
| Installation | On symmetrical DIN rail 35mm |
| Panel mounting |
Any questions, please feel free to contact with me. I will reply within 24 hours.
XNFIN series IP40 NFIN 30ma 40a 4 pole Residual Current Device RCD
WIRING DIAGRAM
 |
XNFIN series IP40 NFIN 30ma 40a 4 pole Residual Current Device RCD
Outline & Installation Dimensions
|
XNFIN series IP40 NFIN 30ma 40a 4 pole Residual Current Device RCD
|
|
|
XNFIN series IP40 NFIN 30ma 40a 4 pole Residual Current Device RCD
| |
| DC MCB | MCCB |
| ALL TYPES OF AC MCB |
XNFIN series IP40 NFIN 30ma 40a 4 pole Residual Current Device RCD
Packaging Details:
| Item | 2P | 4P | |
| Standard Package | Quantity/ inner carton | 1 | 1 |
Quantity/ master carton | 100 | 50 | |
| International standard export package | |||
Carton Dimensions | L X W X H (cm) | 50x42x19 | 50x42x19 |
| N.W./G.W. | kgs | 21/19 | 19/17 |
Capacity of Container (Pcs) | 20" GP | 70,200 | 35,100 |
| 40" GP | Overweight | Overweight | |
| 40" HQ | Overweight | Overweight | |
Shipping:
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door,
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving,
3. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
|
OUR SERVICE
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested in the reasonable price will be provided to you upon receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit our company and technology communication.
XNFIN series IP40 NFIN 30ma 40a 4 pole Residual Current Device RCD
OUR COMPANY
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing of circuit breakers and electronic environmental protection products.We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS,SGS,ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well received by our customers from all over the world.
|
FAQ
Q1: Are you a manufacturer?
A1:yes. We have 3 years export exprience.
Q2: Delivery time?
A2:Will send the goods out within 72 hours after the order confirmed.
Q3: After Sales Service?
A3: if u have any questions about the receuved product, we will try our best to solve it.
Q4: Return the goods?
A4: If the product really has quality problem, we will accept return the old one and send again.
How to contact us?
|
Thank you for your time!
