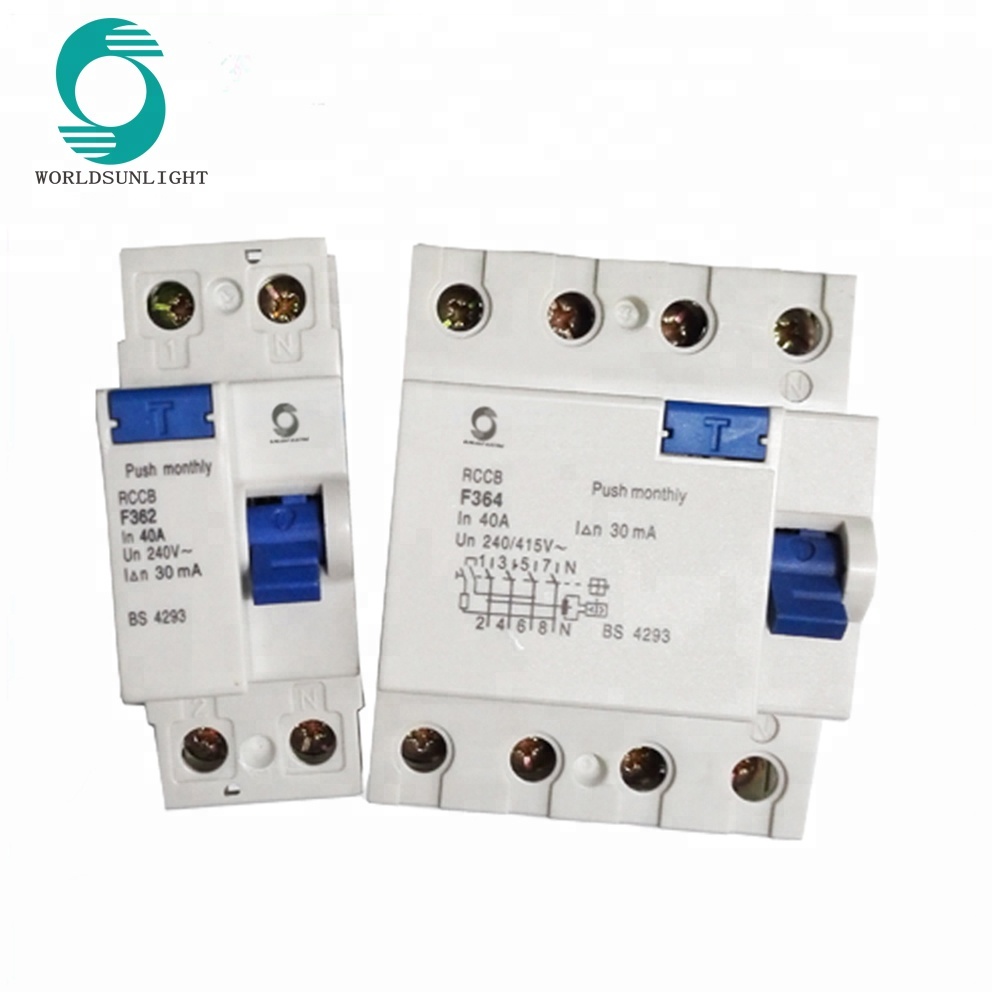

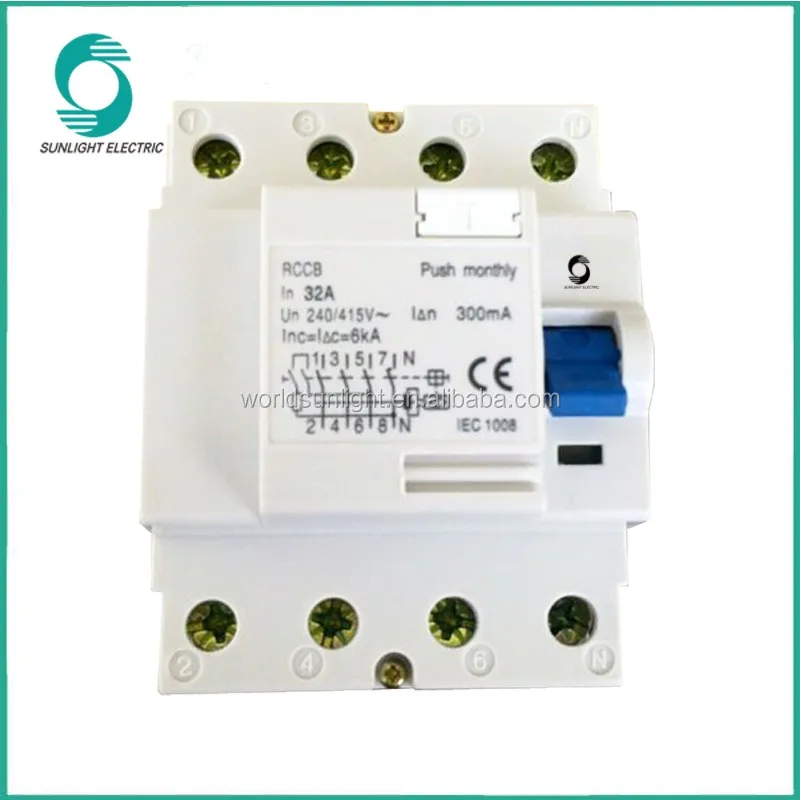

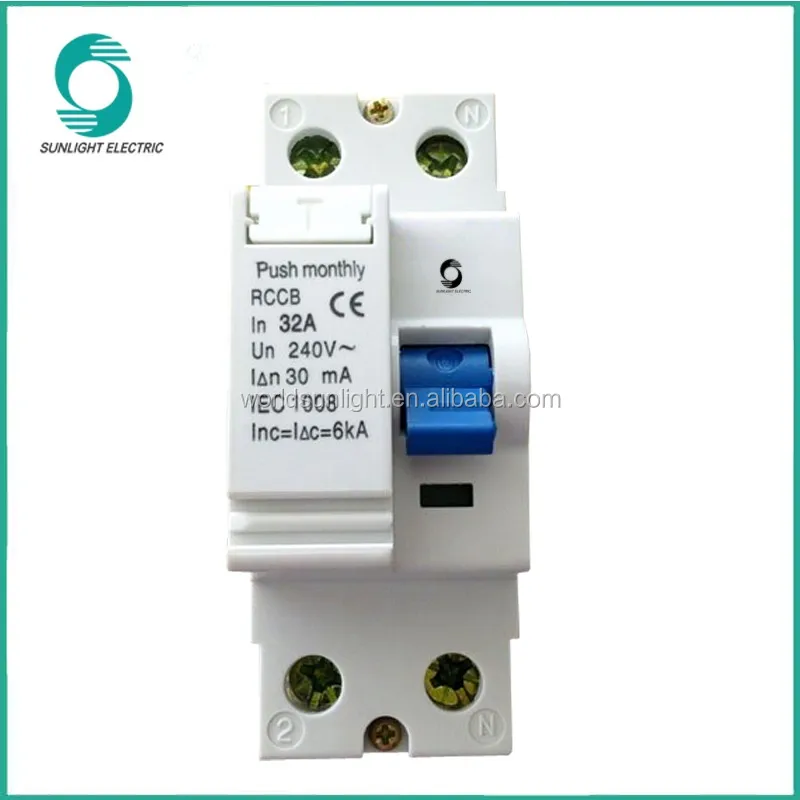

CE IEC1008 approval XF360 series F362 10ma 30ma 100ma 300ma 500ma 32a 2 pole 6kA residual current circuit breaker rccb
APPLICATION & FEATURES
XF360 series residual current circuit breakers (RCCB) are in accordance with the standards of IEC1008-1 and GB16916.1-1997. They are applied to the circuit of AC 50/60Hz, 2P 240V, 4P 415V. They are mainly used for preventing electric fire and personal casual accidents caused by personal electric shock or leakage. They are current-operated and fast leakage protectors of pure electromagnetic types. They can break off fault circuit rapidly in order to avoid occurrence of accidents.The function of switch won"t be influenced by ambient temperature and lighting.
CE IEC1008 approval XF360 series F362 10ma 30ma 100ma 300ma 500ma 32a 2 pole 6kA residual current circuit breaker rccb
TECHNICAL DATA
| Number of Poles | 2P,4P |
| Rated Current (A) | 16,20,25,32,40,50,63,80,100 |
Rated Residual Operating Current (IΔn)(mA) | 10,30,100,300,500 |
| Rated Residual Non-operation Current (IΔno)(mA) | ≤0.5 IΔn |
| Rated Voltage (V) | AC 230/240 |
| AC 400/415 | |
| Residual Operating Current Scope | 0.5IΔn~IΔn |
| Residual Current Off-time | ≤0.3S |
| Endurance | 4000 |
| Protection Degree | IP20 |
Tripping time: 100ms (depends on specifications 5 x In≤40ms)
Ambient temperature: -55 ~ +55oC
Climatic resistance: 550C/28 cycles
Vibration resistance: min. 5g 30min
Life expectance: at least 10,000 operations
Any questions, please feel free to contact with me. I will reply within 24 hours.
CE IEC1008 approval XF360 series F362 10ma 30ma 100ma 300ma 500ma 32a 2 pole 6kA residual current circuit breaker rccb
WIRING DIAGRAM
 |
CE IEC1008 approval XF360 series F362 10ma 30ma 100ma 300ma 500ma 32a 2 pole 6kA residual current circuit breaker rccb
Outline & Installation Dimensions
|
CE IEC1008 approval XF360 series F362 10ma 30ma 100ma 300ma 500ma 32a 2 pole 6kA residual current circuit breaker rccb
|
|
|
|
CE IEC1008 approval XF360 series F362 10ma 30ma 100ma 300ma 500ma 32a 2 pole 6kA residual current circuit breaker rccb
| |
| DC MCB | MCCB |
| ALL TYPES OF AC MCB |
CE IEC1008 approval XF360 series F362 10ma 30ma 100ma 300ma 500ma 32a 2 pole 6kA residual current circuit breaker rccb
Packaging Details:
| Item | 2P | 4P | |
| Standard Package | Quantity/ inner carton | 1 | 1 |
Quantity/ master carton | 100 | 50 | |
| International standard export package | |||
Carton Dimensions | L X W X H (cm) | 50x42x19 | 50x42x19 |
| N.W./G.W. | kgs | 21/19 | 19/17 |
Capacity of Container (Pcs) | 20" GP | 70,200 | 35,100 |
| 40" GP | Overweight | Overweight | |
| 40" HQ | Overweight | Overweight | |
Shipping:
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door,
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving,
3. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
|
