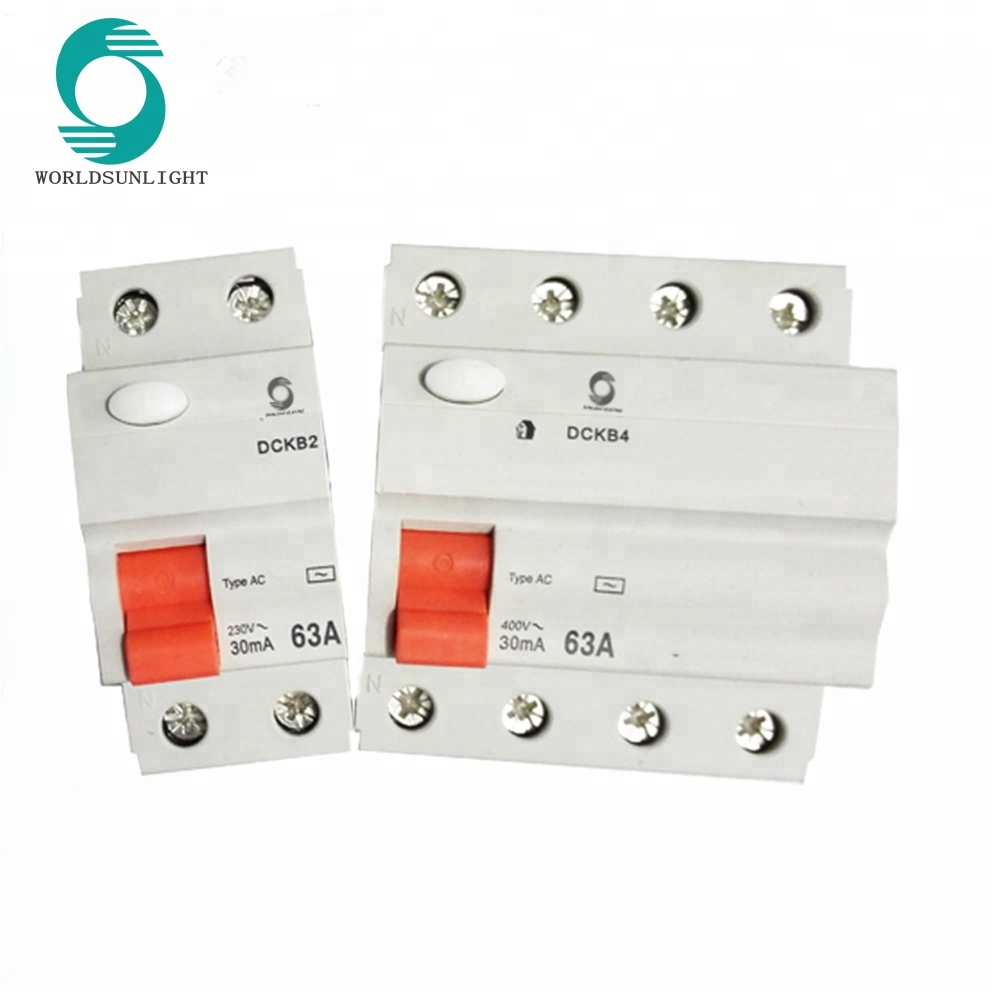

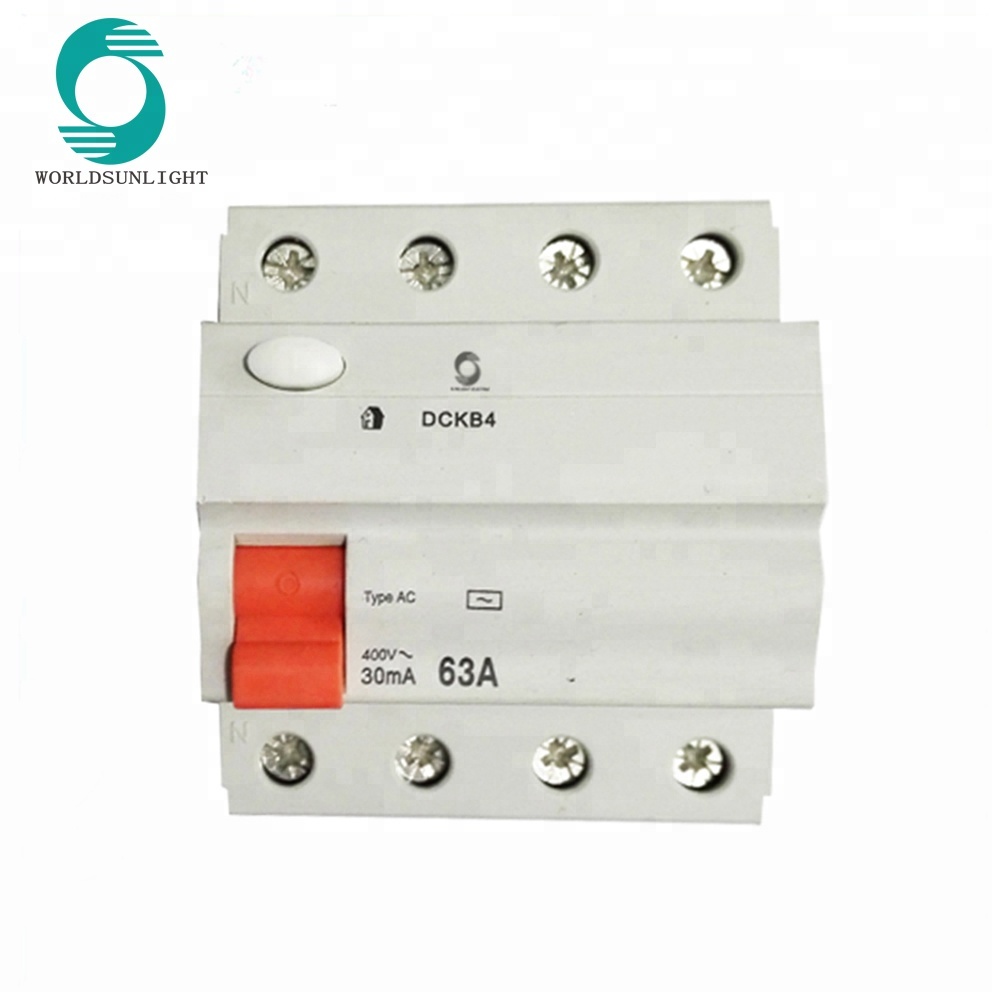

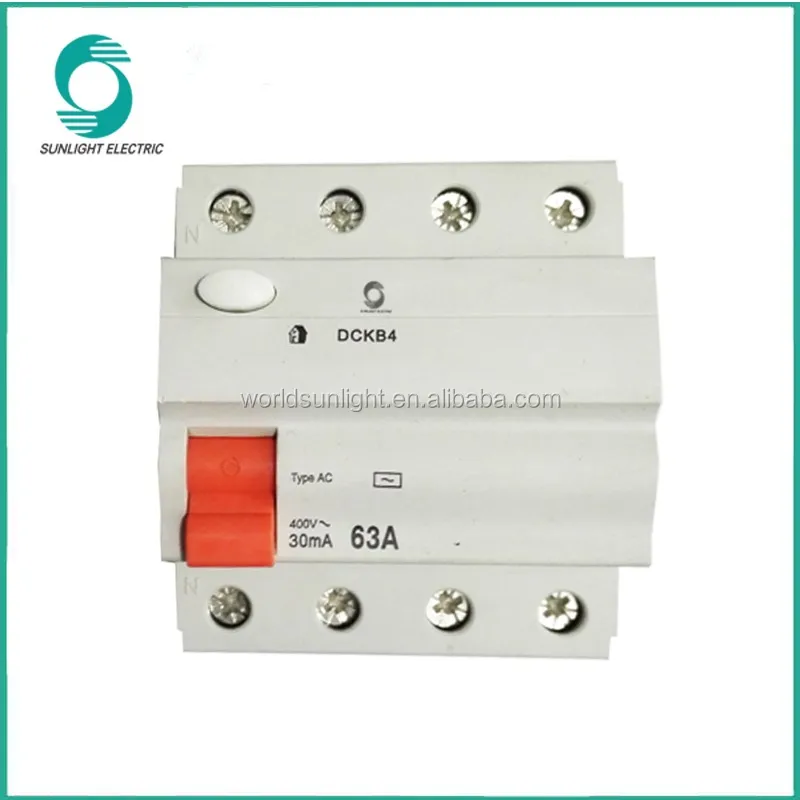

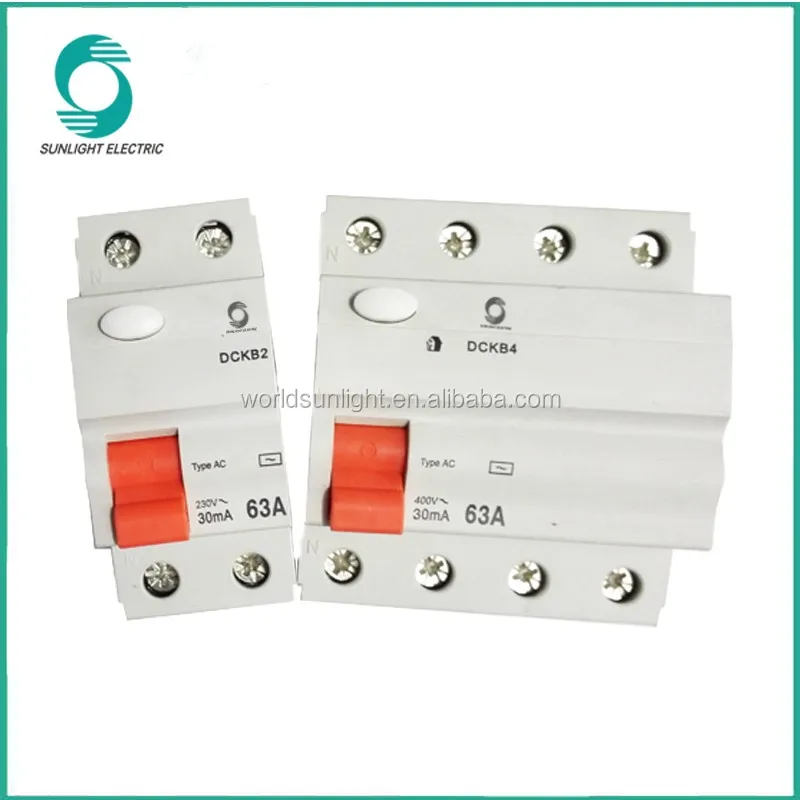

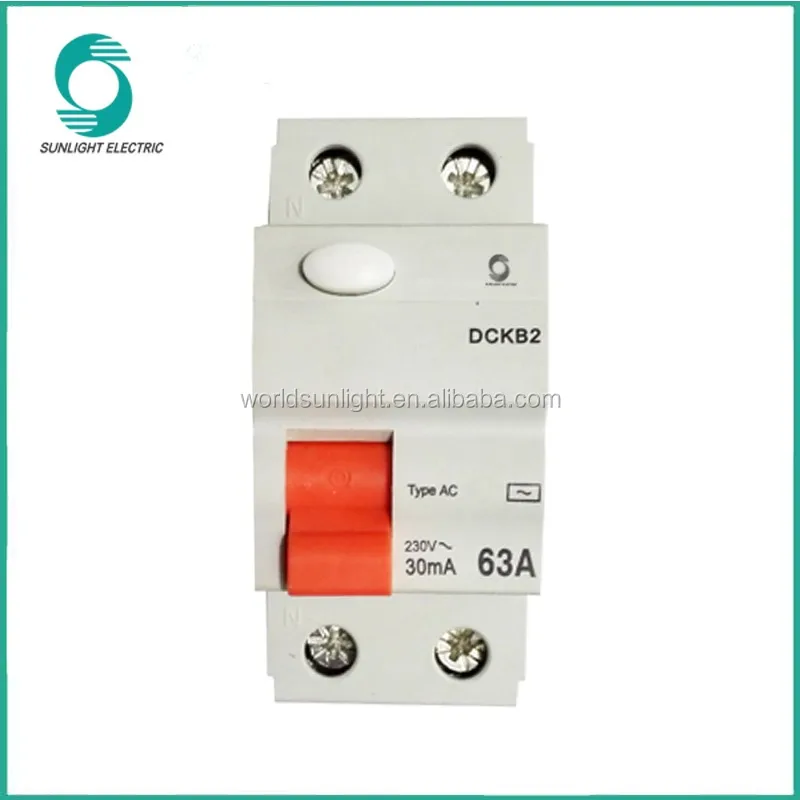

XIDN type AC DCKB model 30mA 100mA 300mA 500mA 16A 25A 32A 40A 50A 63A 2 pole 4 pole residual current circuit breaker rccb rcd
APPLICATION & FEATURES
XIDN Residual current circuit breaker without over current protection conforms to the standards of IEC61009.1,BS4293 etc, It is used in the circuit of AC 50/60Hz. single phase 230V, three phases 400V in industrial & mining enterprises, Commercial buildings and housing for protection of personal electric shock hazard, and also can used for unfrequented switch over circuit under normal conditions.
XIDN type AC DCKB model 30mA 100mA 300mA 500mA 16A 25A 32A 40A 50A 63A 2 pole 4 pole residual current circuit breaker rccb rcd
TECHNICAL DATA
| Standard | IEC61009.1 |
| Curve | A&AC type |
| Rated Voltage(Un) | 2Pole 230VAC 4Pole 400VAC |
| Rated Current(In) | 16,25,32,40,50,63A |
| Rated Residual Operating Current | 30,100,300,500mA |
| Rated Current off-time | ≤ 0.1s |
| Mini Value of Rated Operating and Breaking Capacity(Im) | 1kA |
| Installation | On symmetrical DIN rail |
Any questions, please feel free to contact with me. I will reply within 24 hours.
XIDN type AC DCKB model 30mA 100mA 300mA 500mA 16A 25A 32A 40A 50A 63A 2 pole 4 pole residual current circuit breaker rccb rcd

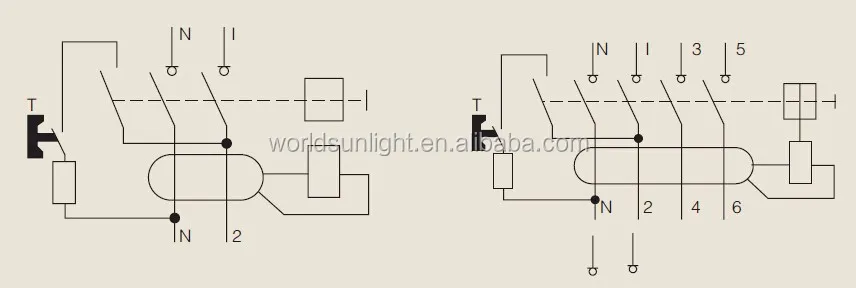

WIRING DIAGRAM
 |
XIDN type AC DCKB model 30mA 100mA 300mA 500mA 16A 25A 32A 40A 50A 63A 2 pole 4 pole residual current circuit breaker rccb rcd

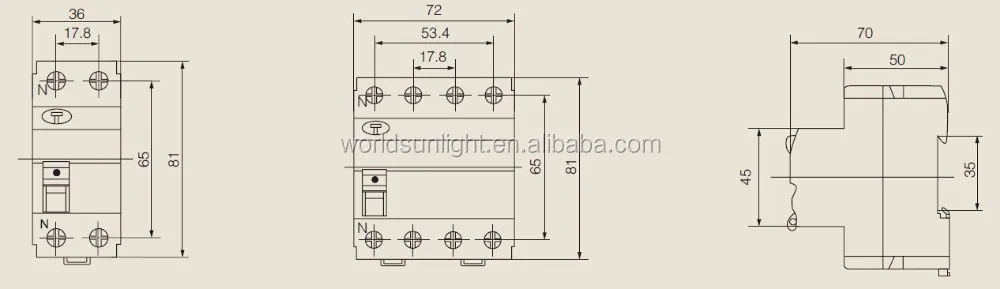

Outline & Installation Dimensions
|
XIDN type AC DCKB model 30mA 100mA 300mA 500mA 16A 25A 32A 40A 50A 63A 2 pole 4 pole residual current circuit breaker rccb rcd
|
|
|
XIDN type AC DCKB model 30mA 100mA 300mA 500mA 16A 25A 32A 40A 50A 63A 2 pole 4 pole residual current circuit breaker rccb rcd
| |
| DC MCB | MCCB |
| ALL TYPES OF AC MCB |
XIDN type AC DCKB model 30mA 100mA 300mA 500mA 16A 25A 32A 40A 50A 63A 2 pole 4 pole residual current circuit breaker rccb rcd
Packaging Details:
| Item | 2P | 4P | |
| Standard Package | Quantity/ inner carton | 1 | 1 |
Quantity/ master carton | 100 | 50 | |
| International standard export package | |||
Carton Dimensions | L X W X H (cm) | 50x42x19 | 50x42x19 |
| N.W./G.W. | kgs | 21/19 | 19/17 |
Capacity of Container (Pcs) | 20" GP | 70,200 | 35,100 |
| 40" GP | Overweight | Overweight | |
| 40" HQ | Overweight | Overweight | |
Shipping:
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door,
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving,
3. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
|
OUR SERVICE
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested in the reasonable price will be provided to you upon receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit our company and technology communication.
XIDN type AC DCKB model 30mA 100mA 300mA 500mA 16A 25A 32A 40A 50A 63A 2 pole 4 pole residual current circuit breaker rccb rcd
OUR COMPANY
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing of circuit breakers and electronic environmental protection products.We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS,SGS,ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well received by our customers from all over the world.
|
FAQ
Q1: Are you a manufacturer?
A1:yes. We have 3 years export exprience.
Q2: Delivery time?
A2:Will send the goods out within 72 hours after the order confirmed.
Q3: After Sales Service?
A3: if u have any questions about the receuved product, we will try our best to solve it.
Q4: Return the goods?
A4: If the product really has quality problem, we will accept return the old one and send again.
