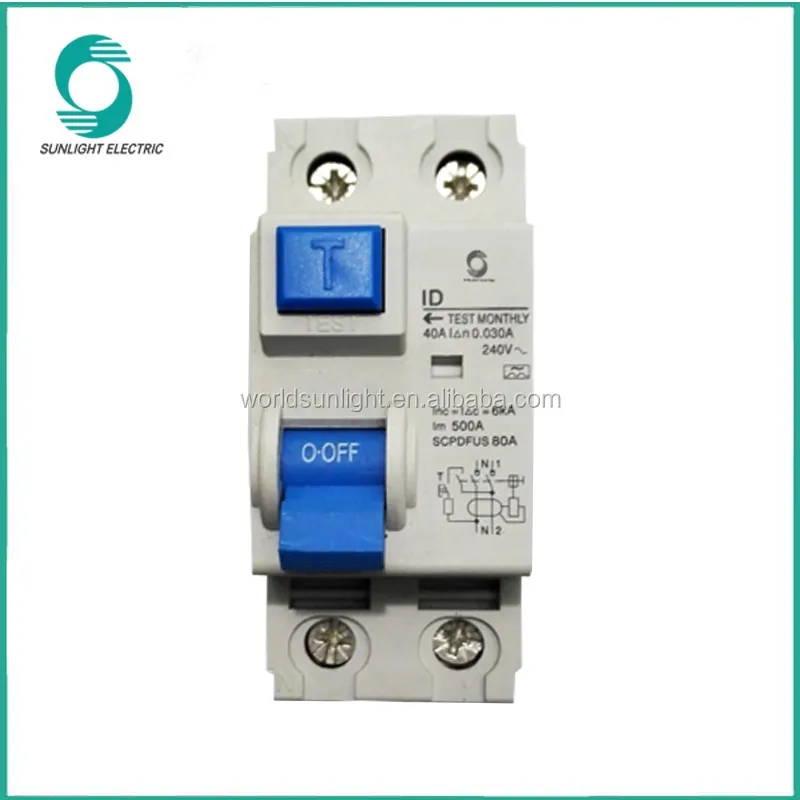

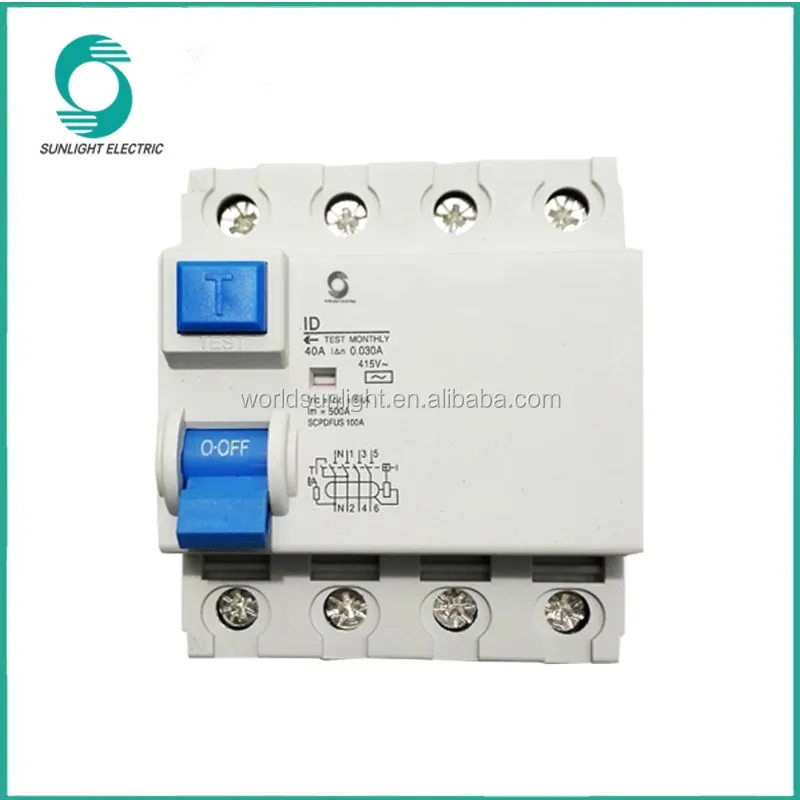

XID A AC type Electronic and electromagnetic 415V 30ma 40a 4p rccb residual current circuit breaker
APPLICATION & FEATURES
Applications:
RCCBs/ RCDs are designed to quickly enough to mitigate the harm caused by such shocks although they are not intended to provide protection against overload or conditions.
Features:
- Simple and Robust operating mechanism.
- Rotary handle with ON/Off indication .
- Dual termination for Bus Bar as well as cable connection .
- Test Button for regular inspection.
XID A AC type Electronic and electromagnetic 415V 30ma 40a 4p rccb residual current circuit breaker
TECHNICAL DATA
Pole No. | 2 Pole | 4 Pole |
Standard Conformity | IEC 61008 | IEC 61008 |
Residual Current Characteristics | A,AC | A,AC |
Rated Current (In) A | 16, 25,32,40,50,63 | 16,25,32,40,50,63 |
Rated Residual Operating Current IΔn (mA) | 30, 100, 300, 500 | 30, 100, 300, 500 |
Rated Voltage (Un) Vac | 240 | 415 |
Rated Frequency Hz | 50/60 | 50/60 |
Residual Operating Current Scope | 0.5IΔn~IΔn | 0.5IΔn~IΔn |
Electrical Endurance/Mechanical Operations | 10000 | 10000 |
Rated Current off-time | ≤ 0.1s | ≤ 0.1s |
Endurance | 4000 | 4000 |
| Protection Degree | IP20 | IP20 |
Any questions, please feel free to contact with me. I will reply within 24 hours.
XID A AC type Electronic and electromagnetic 415V 30ma 40a 4p rccb residual current circuit breaker

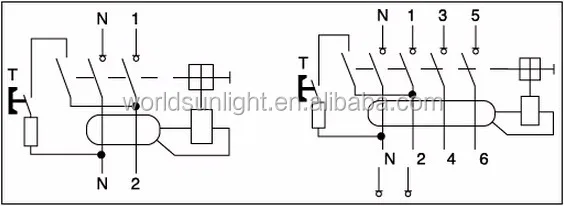

WIRING DIAGRAM
 |
XID A AC type Electronic and electromagnetic 415V 30ma 40a 4p rccb residual current circuit breaker
Outline & Installation Dimensions
|
XID A AC type Electronic and electromagnetic 415V 30ma 40a 4p rccb residual current circuit breaker
|
|
|
XID A AC type Electronic and electromagnetic 415V 30ma 40a 4p rccb residual current circuit breaker
| |
| DC MCB | MCCB |
| ALL TYPES OF AC MCB |
XID A AC type Electronic and electromagnetic 415V 30ma 40a 4p rccb residual current circuit breaker
Packaging Details:
| Item | 2P | 4P | |
| Standard Package | Quantity/ inner carton | 1 | 1 |
Quantity/ master carton | 100 | 50 | |
| International standard export package | |||
Carton Dimensions | L X W X H (cm) | 50x42x19 | 50x42x19 |
| N.W./G.W. | kgs | 21/19 | 19/17 |
Capacity of Container (Pcs) | 20" GP | 70,200 | 35,100 |
| 40" GP | Overweight | Overweight | |
| 40" HQ | Overweight | Overweight | |
