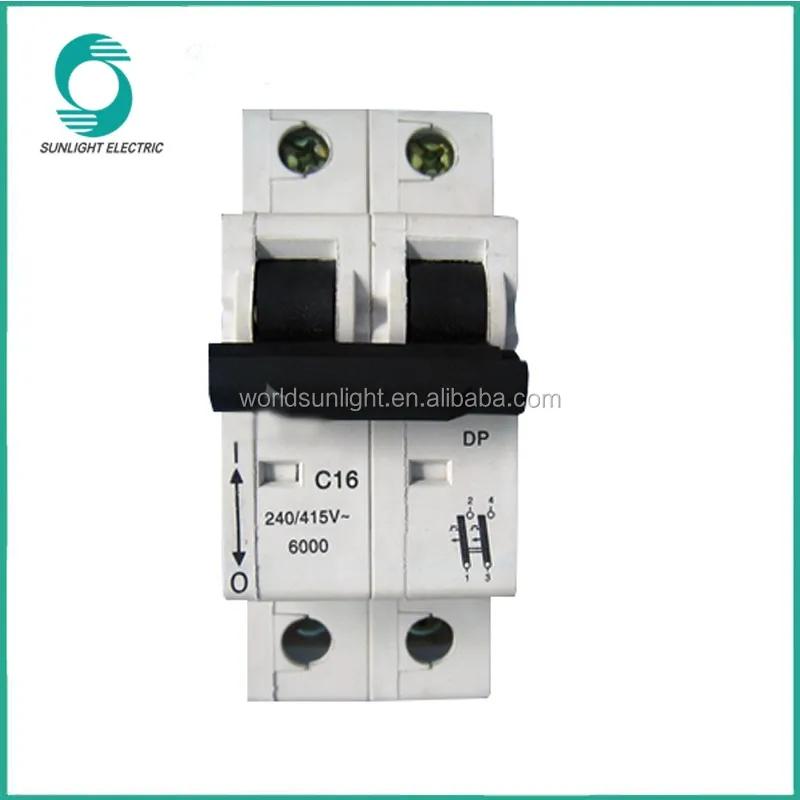

India market selling XIS-63 series isolator type 2p C16 16A mcb miniature circuit breaker
APPLICATION
State-of-the-art design.
Elegant appearance;cover and handle in arc shape for comfortable operation
Contact position indicating window.
Mid-trip function for circuit fault indicating
In case of overload and short-circuit to protected circuit, mcb knob trips and
stays at mid position, which enables a quick solution to the faulty line. The
knob cannot stay in such position when operated manually.
High short-circuit capacity
High short-circuit capacity 10kA for whole range thanks to the powerful
electric arc extinguishing system.
Long electrical endurance, more than 4000 cycles thanks to quick making
mechanism
Knob padlock device.
Mcb knob can be locked either at "on"position or at "off"" position to prevent
unwanted operation of the product
India market selling XIS-63 series isolator type 2p C16 16A mcb miniature circuit breaker
TECHNICAL PARAMETER
Number of poles | 1, 1P+N,2, 3, 3P+N,4P |
Rated voltage | AC 240/415V |
Rated current(A) | 1,2,3,4,5,6,10,16,20,25,32,40,50,63 |
Tripping curve | B,C,D |
Rated short-circuit | 10000A |
Rated service short-circuit | 7500A |
Rated frequency | 50/60Hz |
Energy limiting class | 3 |
Rated impulse withstand | 4kV |
Electro-mechanism | 4000 |
Connection termina | Screw terminal |
Connection capacity | rigid conductor up to 25 mm2 |
Fastening torque | 2.0Nm |
Installation | On symmetrical DIN rail 35mm |
CHARACTERISTIC CURVE
 |
India market selling XIS-63 series isolator type 2p C16 16A mcb miniature circuit breaker
|
|
|
India market selling XIS-63 series isolator type 2p C16 16A mcb miniature circuit breaker
| |
| DC MCB | MCCB |
India market selling XIS-63 series isolator type 2p C16 16A mcb miniature circuit breaker
|
OUR SERVICE
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested in the reasonable price will be provided to you upon receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit our company and technology communication.
India market selling XIS-63 series isolator type 2p C16 16A mcb miniature circuit breaker
OUR COMPANY
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing of push button switches and electronic environmental protection products.We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS,SGS,ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well received by our customers from all over the world.
|
FAQ
Q1: Are you a manufacturer?
A1:yes. We have 3 years export exprience.
Q2: Delivery time?
A2:Will send the goods out within 72 hours after the order confirmed.
Q3: After Sales Service?
A3: if u have any questions about the receuved product, we will try our best to solve it.
Q4: Return the goods?
A4: If the product really has quality problem, we will accept return the old one and send again.
