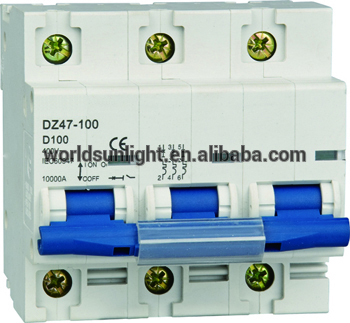

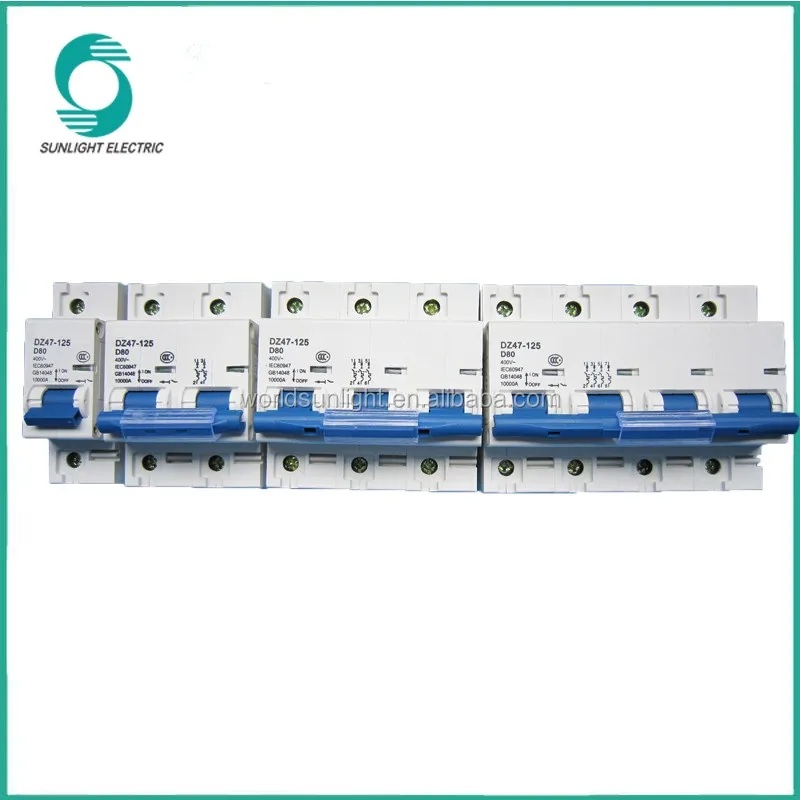

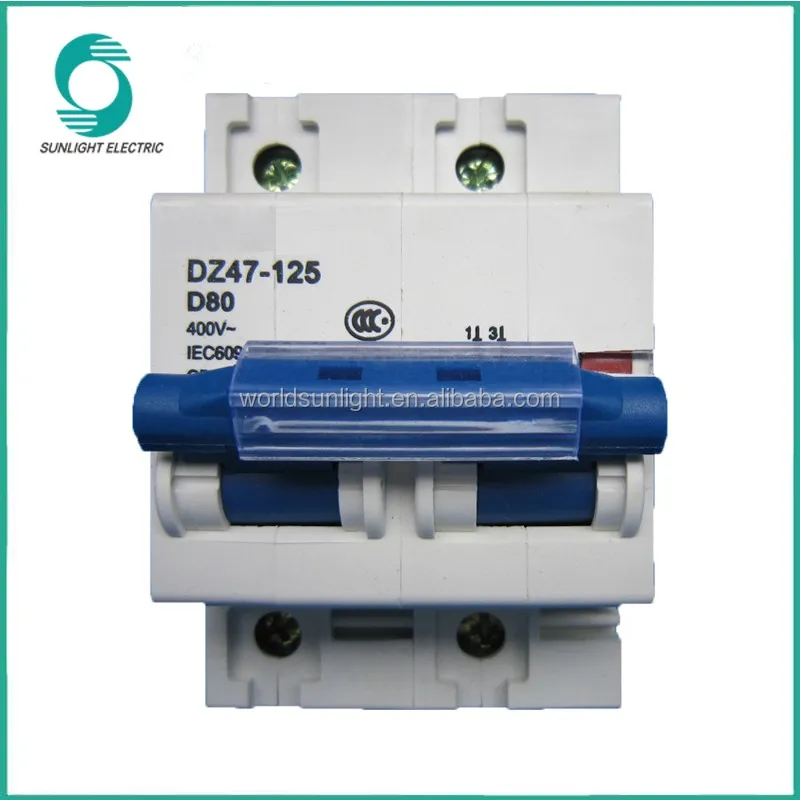

XNC-100 series 63A 80A 100A 1 2 3 4 pole miniature circuit breaker mcb
APPLICATION
XNC-100 high breaking capacity breaker is used for AC 50/60Hz, 230V 1Pole, 400V 2P,3P,4P circuit. Used in lighting and electric motor distribution system. For unfrequently switch over the electric apparatus and lighting circuit under normal condition. IEC60947-2 standard.
XNC-100 series 63A 80A 100A 1 2 3 4 pole miniature circuit breaker mcb
TECHNICAL PARAMETER
| Standard | IEC60947-2,GB14048.2 | |
| Number of poles | 1P.2P.3P.4P | |
| Rated current(In) | 63,80,100A | |
| Rated voltage(Un) | AC230/400V | |
| Rated frequency | 50/60Hz | |
| Tripping curve | B,C | |
| Release action characteristics | Time delay | 1.13In≥1h non-trip |
| 1.45In<1h trip | ||
| 3In 1S<60S trip | ||
| Instantaneous(Curve C) | 8-12In≥0.1S non-trip | |
| 10-14In<0.1 trip | ||
| Magnetic releases operate | B curve:between 3 and 5In | |
| C curve:between 5 and 10In | ||
| Rated breaking capacity(Lcn) | 6000A,7500A,10000A | |
| Endurance | ≥2500 | |
| Circumstance temperature | -5ºC+40ºC | |
| Electrical life | ≥6000times | |
| Mechanical life | 20000 times | |
| Tropical ration | Treatmen 2(RH95%,at 55ºC) | |
| Protection degree | IP20 |
XNC-100 series 63A 80A 100A 1 2 3 4 pole miniature circuit breaker mcb

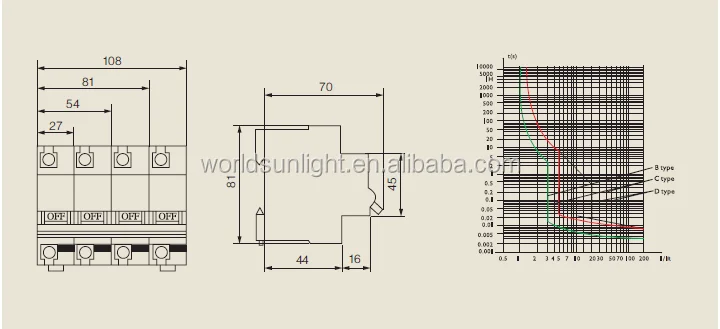

DEMENSION AND CHARACTERISTIC CURVE
 |

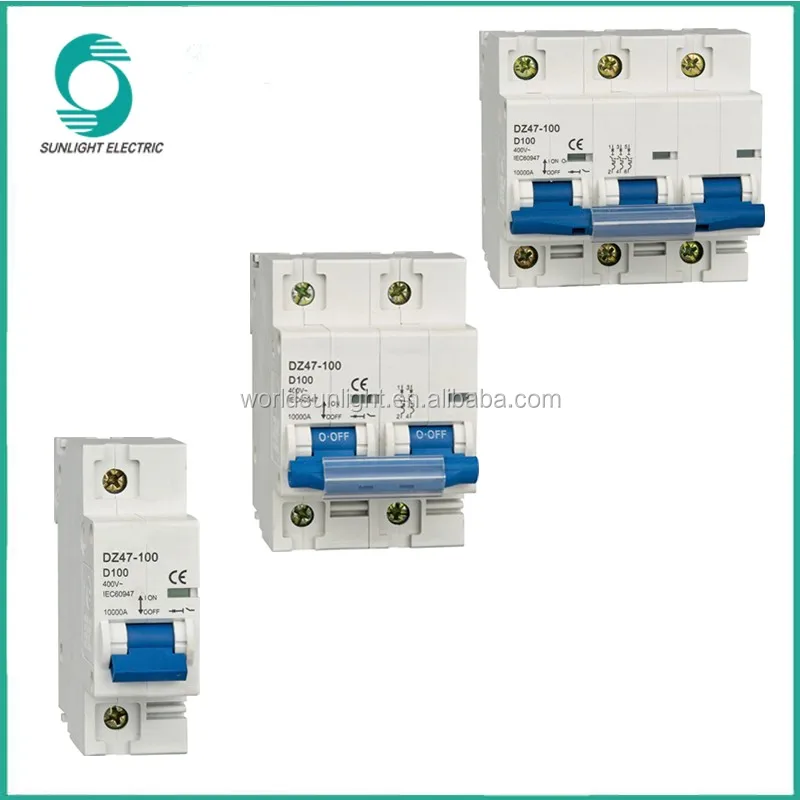

XNC-100 series 63A 80A 100A 1 2 3 4 pole miniature circuit breaker mcb
| |
| |
| |

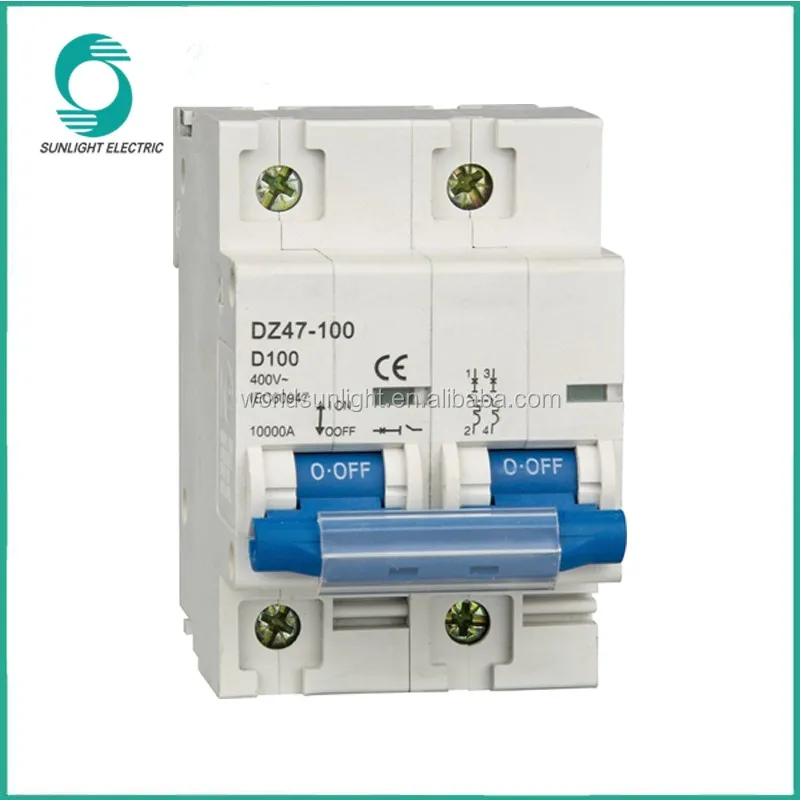

XNC-100 series 63A 80A 100A 1 2 3 4 pole miniature circuit breaker mcb
| |
| DC MCB | MCCB |

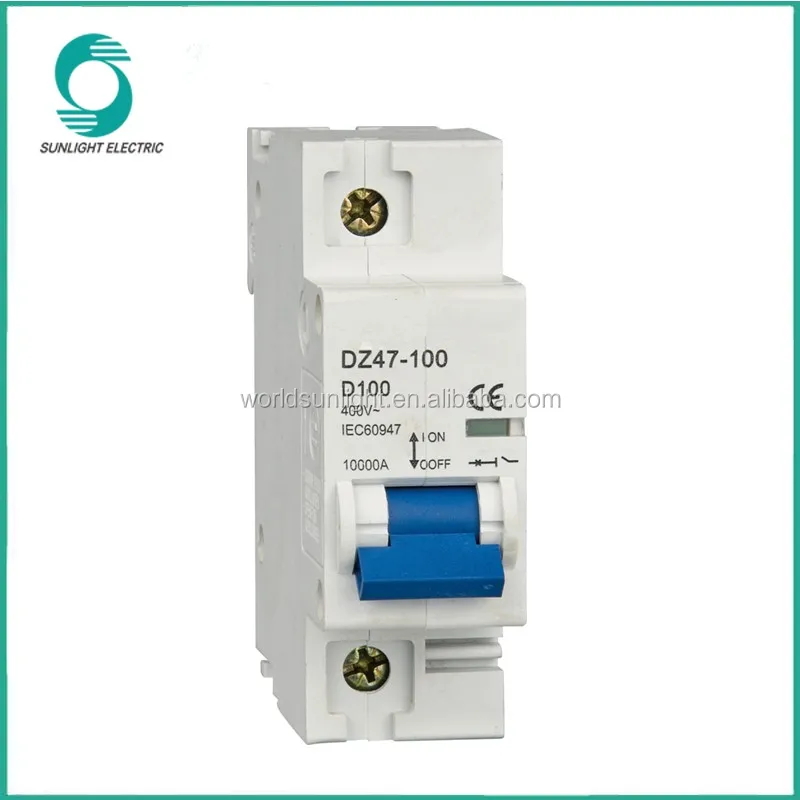

XNC-100 series 63A 80A 100A 1 2 3 4 pole miniature circuit breaker mcb
|
