XC60N series c60 c60n c16 miniature circuit breaker mcb
APPLICATION
1.XC60N series MCB are suitable for circuit of AC 50HZ or 60HZ.rated voltage up to 400V,rated current up to 63A
2.they are mainly used in office,singe-pole lighting,distribution system for overload and short circuit protection.
3.Its frame and parts adopt plastics of high fire resistant and shockproof.
4.The product overload and short circuit protection, as well as for unfrequently switching on&of electric equipment and lighting circuit in normal case.
5.The products comply with IEC60898
XC60N series c60 c60n c16 miniature circuit breaker mcb
TECHNICAL PARAMETER
| Standard | IEC 60898-1/GB 10963.1 | IEC 60947-2/GB 14048.2 |
| Rated Voltage(V) | 230/400 | 240/415 |
| Basic Test Temperature | 30℃ | 40℃ |
| Number of Poles | 1P 2P 3P 4P 1P+N 3P+N DPN | |
| Rated Current in(A) | 1-63 | |
| Breaking Capacity(A) | 3000 4500 6000 10000 | |
| Rated Frequency | 50/60Hz | |
| Endurance(A) | ≥ 4000 | |
| Pressure resistance 1 minute | 2kv | |
| Electrical Life | ≥4000 | |
| Mechanical Life | ≥10000 | |
| Protection Degree | IP20 | |
| Circumstance Temperature | -5℃~+40℃ | |
| Storage Temperation | -25℃~+70℃ | |
| Pollution Degree | 2 | |
Thermo-manetic Release Characteristic | A B C D | |
XC60N series c60 c60n c16 miniature circuit breaker mcb

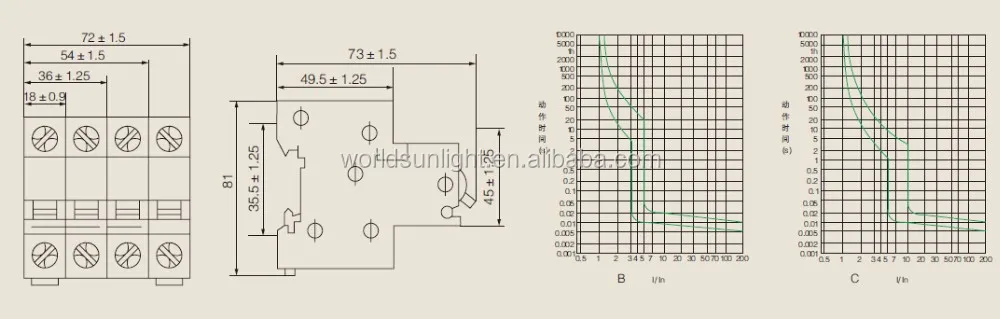

DEMENSION AND CHARACTERISTIC CURVE
 |
XC60N series c60 c60n c16 miniature circuit breaker mcb
| |
| |
XC60N series c60 c60n c16 miniature circuit breaker mcb
| |
| DC MCB | MCCB |
XC60N series c60 c60n c16 miniature circuit breaker mcb
OUR SERVICE
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested in the reasonable price will be provided to you upon receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit our company and technology communication.
XC60N series c60 c60n c16 miniature circuit breaker mcb
OUR COMPANY
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing of push button switches and electronic environmental protection products.We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS,SGS,ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well received by our customers from all over the world.
|
