CE IEC 60898 approval XBKN series thermal magnetic 4P 230/415V mini c32 circuit breaker / mcb
APPLICATION
XBKN series mini circuit breaker is used in lighting distribution system or motor distribution system for protection overload and short-circuits in the system. The product is neoteric in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product, with long life, is mainly used in AC 50/60HZ single-pole 240 or two, three four-pole 415V circuit for overload and short-circuit protection as well as for unfrequented on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898 &BS 3771.
CE IEC 60898 approval XBKN series thermal magnetic 4P 230/415V mini c32 circuit breaker / mcb
TECHNICAL PARAMETER
Series | XBKN |
Type | B C D |
Poles | 1 2 3 1 2 3 4 1 2 3 |
Rated voltage | 230/415V |
Rated current(A) | 1,3,6,10,16,20,25,32,40,50,63 |
Breaking capacity(kA) | 6 |
Tripping device | Thermal-coil magnetic |
Auxiliary switch & alarm switch |
|
Rated operational current | 230V 3.5A |
(AC11)duty | 415V 2A |
Mechanical lifespan | 2000 operations |
Terminal capacity | 0.75, 2.5mm |
Weight | 0.04kg/EA |
CE IEC 60898 approval XBKN series thermal magnetic 4P 230/415V mini c32 circuit breaker / mcb

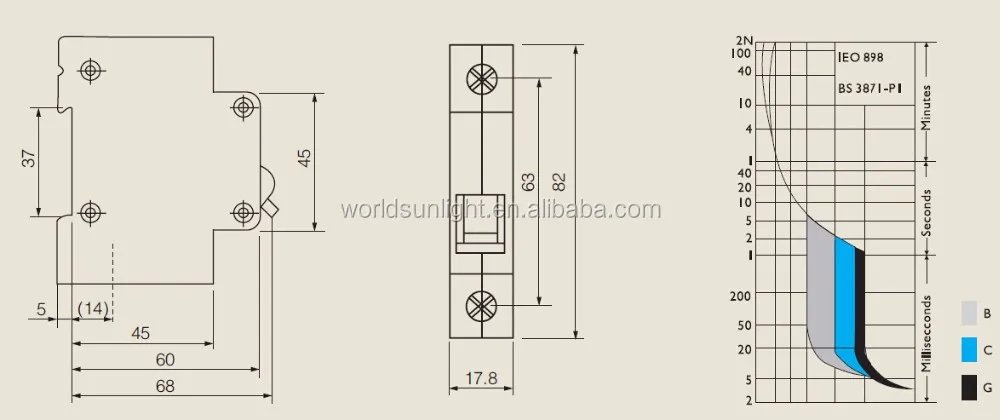

DEMENSION AND CHARACTERISTIC CURVE
 |
CE IEC 60898 approval XBKN series thermal magnetic 4P 230/415V mini c32 circuit breaker / mcb
| |
| |
| |
CE IEC 60898 approval XBKN series thermal magnetic 4P 230/415V mini c32 circuit breaker / mcb
| |
| DC MCB | MCCB |
CE IEC 60898 approval XBKN series thermal magnetic 4P 230/415V mini c32 circuit breaker / mcb
OUR SERVICE
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested in the reasonable price will be provided to you upon receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit our company and technology communication.
CE IEC 60898 approval XBKN series thermal magnetic 4P 230/415V mini c32 circuit breaker / mcb
OUR COMPANY
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing of push button switches and electronic environmental protection products.We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS,SGS,ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well received by our customers from all over the world.
|
