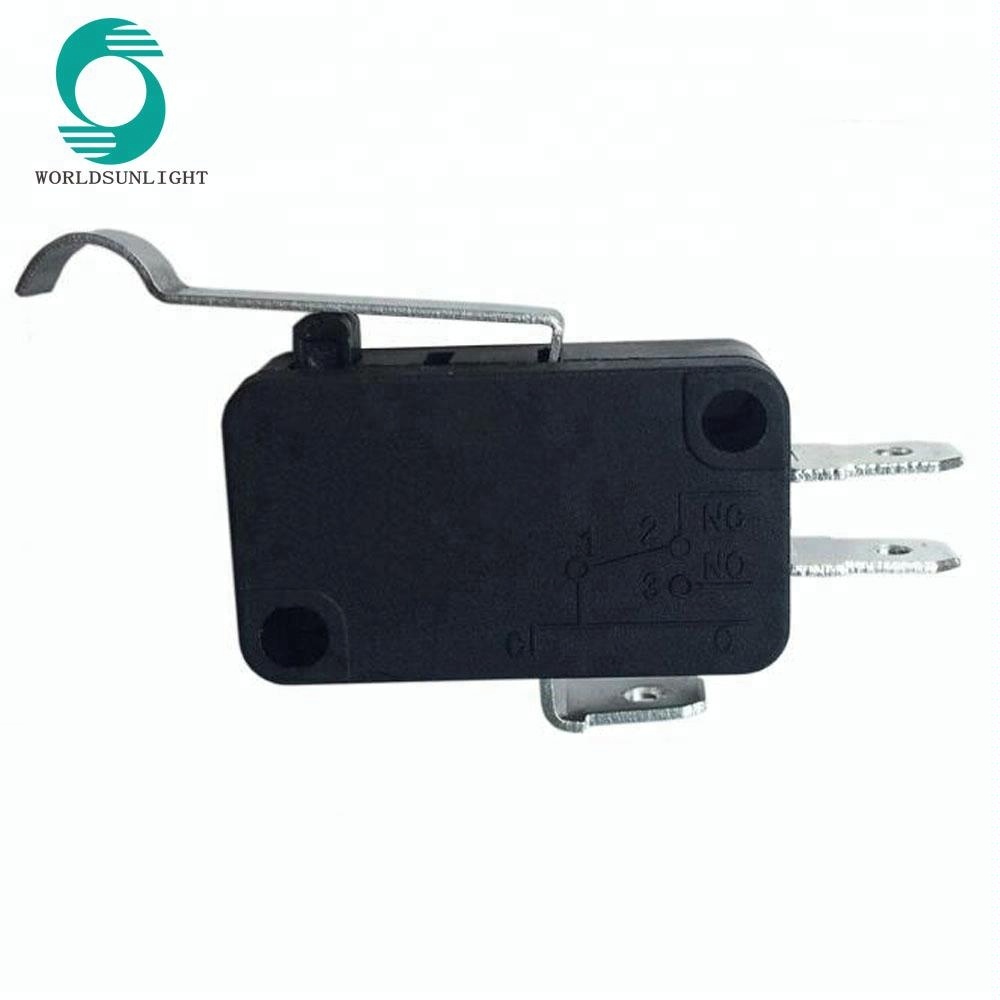

IP67 IP40 CCC CE UL approval spdt or spst 3A 5A 10A 15A 16A 250V miniature mini waterproof snap action micro switch t85 5e4
Feature:
♣Characteristic:small contact clearance.quick action,high sensitivity and small operating travel.
♣Long life,high reliability.
♣A variety of models with low operating force to high operating force are available.
♣A variety of levers.
 |
1.UL,CE, CCC approved..ISO9001:2008;
2.1-16A, 250VAC ;
3.0.6A 125VDC 0.3A 250VDC ;
4.Material:Base plastic---Nylon 66;
Button plastic---PC or Nylon 66;
Copper parts such as terminal----Copper H62;
Terminal surface treatment----- tin plating;
Contact----silver on copper ;
Spring----Tungsten steel;
With water protect cap(if required) .
5.Material:Silver Contact,PC,PA66;
6.Used for home appliances and electronic equipments.Such as :Micro ovean.etc. Can with handle ;
IP67 IP40 CCC CE UL approval spdt or spst 3A 5A 10A 15A 16A 250V miniature mini waterproof snap action micro switch t85 5e4
Characteristics :
| ||||||||||||||||||||||||||||||||||||||||||||
Ue (V) | Ie (A) | Ith (A) |
AC-250 | 7.5 | 10 |
AC-125 | 15 | 20 |
DC-250 | 0.3 | 0.45 |
DC-125 | 0.6 | 0.75 |
IP67 IP40 CCC CE UL approval spdt or spst 3A 5A 10A 15A 16A 250V miniature mini waterproof snap action micro switch t85 5e4
Mounting hole dimensions &structure:
|
IP67 IP40 CCC CE UL approval spdt or spst 3A 5A 10A 15A 16A 250V miniature mini waterproof snap action micro switch t85 5e4
Contact Form:
|
IP67 IP40 CCC CE UL approval spdt or spst 3A 5A 10A 15A 16A 250V miniature mini waterproof snap action micro switch t85 5e4
Picture:
| |
V-16-1C25 | V-161-1C25 |
| |
| V-16-2C25 | V-16-3C25 |
| |

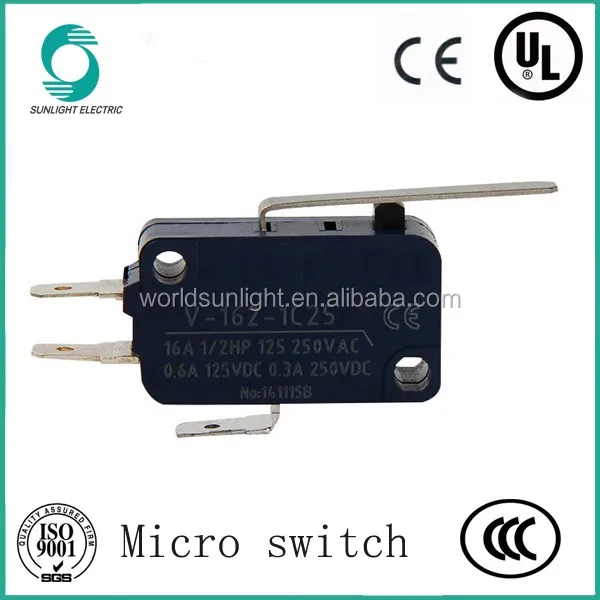

| V-162-1C25 | V-163-1C25 |
| |

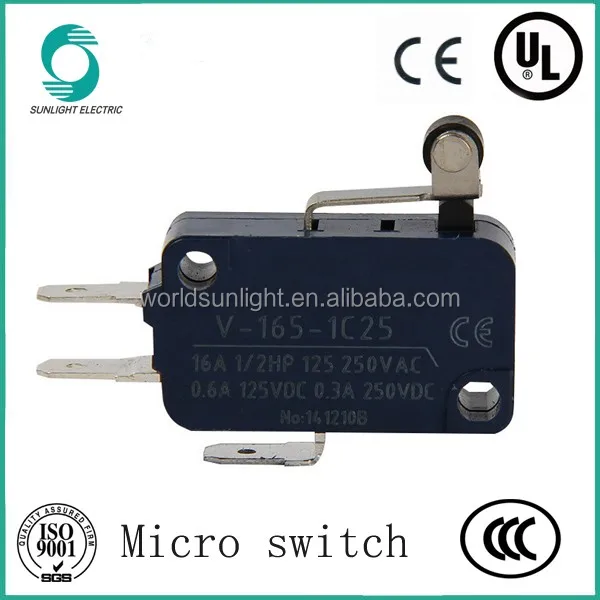

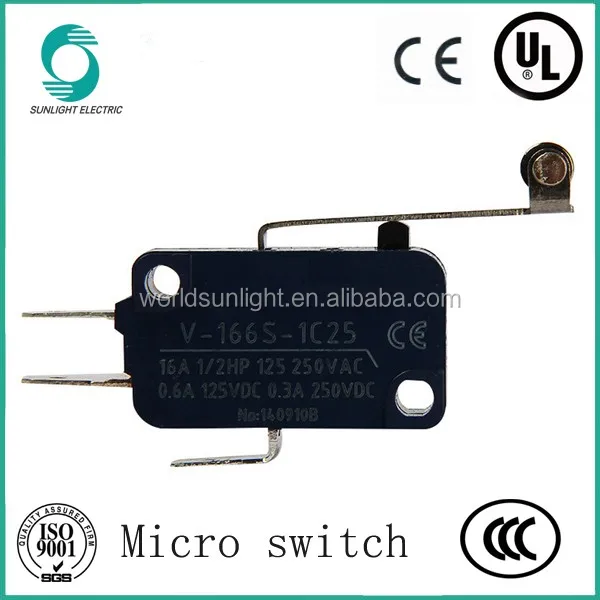

| V-165-1C25 | V-166S-1C25 |
| |

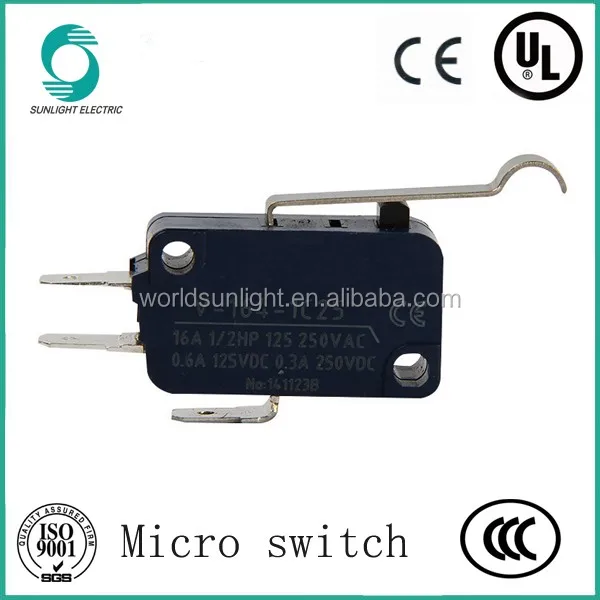

| V-164-1C25 |
IP67 IP40 CCC CE UL approval spdt or spst 3A 5A 10A 15A 16A 250V miniature mini waterproof snap action micro switch t85 5e4
| LZ7 series 10A 1NO1NC micro limit switch | | Industrial Control 1NC1NO WL series limit switches |
IP67 IP40 CCC CE UL approval spdt or spst 3A 5A 10A 15A 16A 250V miniature mini waterproof snap action micro switch t85 5e4
