CCC CE UL approval V-165-1C25 kw3a 250VAC 16amp 3 pins spdt steel roller type snap-action microswitch micro roller switch
Feature:
♣Characteristic:small contact clearance.quick action,high sensitivity and small operating travel.
♣Long life,high reliability.
♣A variety of models with low operating force to high operating force are available.
♣A variety of levers.
 |
1.UL,CE, CCC approved..ISO9001:2008;
2.16A 1/2HP 125/250VAC ;
3.0.6A 125VDC 0.3A 250VDC ;
4.Material:Base plastic---Nylon 66;
Button plastic---PC or Nylon 66;
Copper parts such as terminal----Copper H62;
Terminal surface treatment----- tin plating;
Contact----silver on copper ;
Spring----Tungsten steel;
With water protect cap(if required) .
5.Material:Silver Contact,PC,PA66;
6.Used for home appliances and electronic equipments.Such as :Micro ovean.etc. Can with handle ;
CCC CE UL approval V-165-1C25 kw3a 250VAC 16amp 3 pins spdt steel roller type snap-action microswitch micro roller switch
Characteristics :
| ||||||||||||||||||||||||||||||||||||||||||||
Ue (V) | Ie (A) | Ith (A) |
AC-250 | 7.5 | 10 |
AC-125 | 15 | 20 |
DC-250 | 0.3 | 0.45 |
DC-125 | 0.6 | 0.75 |
Operating characteristic:
| OFF | 2.35N(240gf) |
| RF | 0.49N(50gf) |
| PT | 1.6mm |
| OT | 0.8mm |
| MD | 0.6mm |
| OP | 20.7±0.6mm |
CCC CE UL approval V-165-1C25 kw3a 250VAC 16amp 3 pins spdt steel roller type snap-action microswitch micro roller switch

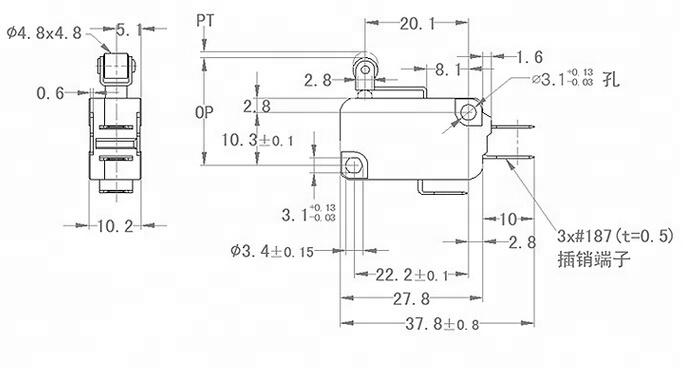

Dimension:
|
CCC CE UL approval V-165-1C25 kw3a 250VAC 16amp 3 pins spdt steel roller type snap-action microswitch micro roller switch
Mounting hole dimensions &structure:
|
CCC CE UL approval V-165-1C25 kw3a 250VAC 16amp 3 pins spdt steel roller type snap-action microswitch micro roller switch
Contact Form:
|
CCC CE UL approval V-165-1C25 kw3a 250VAC 16amp 3 pins spdt steel roller type snap-action microswitch micro roller switch

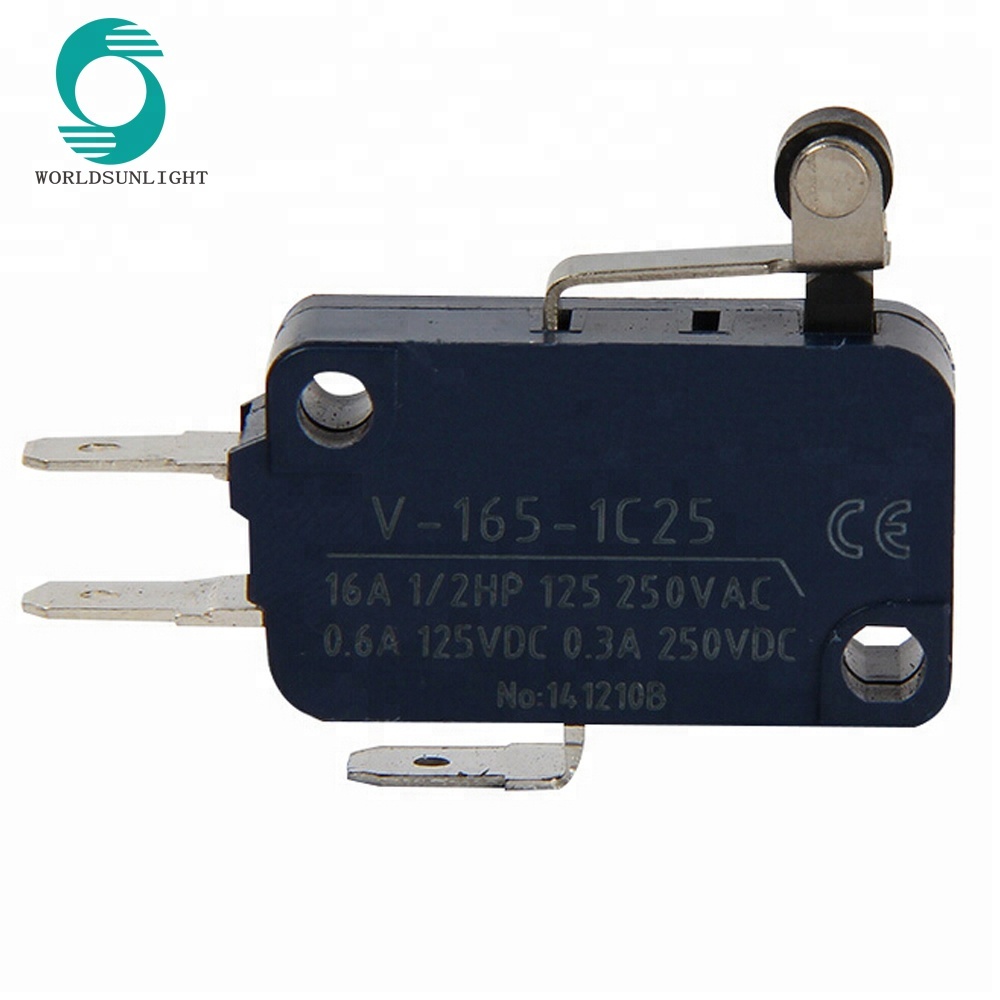

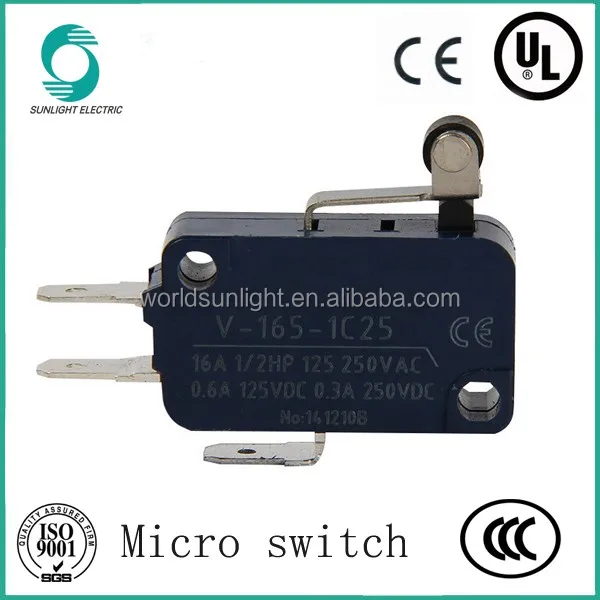

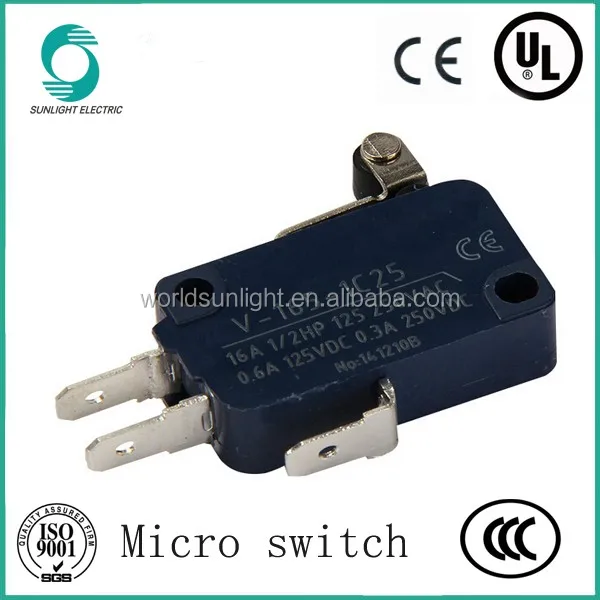

Picture:
|
|
|
|
CCC CE UL approval V-165-1C25 kw3a 250VAC 16amp 3 pins spdt steel roller type snap-action microswitch micro roller switch
| LZ7 series 10A 1NO1NC micro limit switch | | Industrial Control 1NC1NO WL series limit switches |
CCC CE UL approval V-165-1C25 kw3a 250VAC 16amp 3 pins spdt steel roller type snap-action microswitch micro roller switch
Our services:
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested in the reasonable price will be provided to you upon receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit our company and technology communication.
