Features:

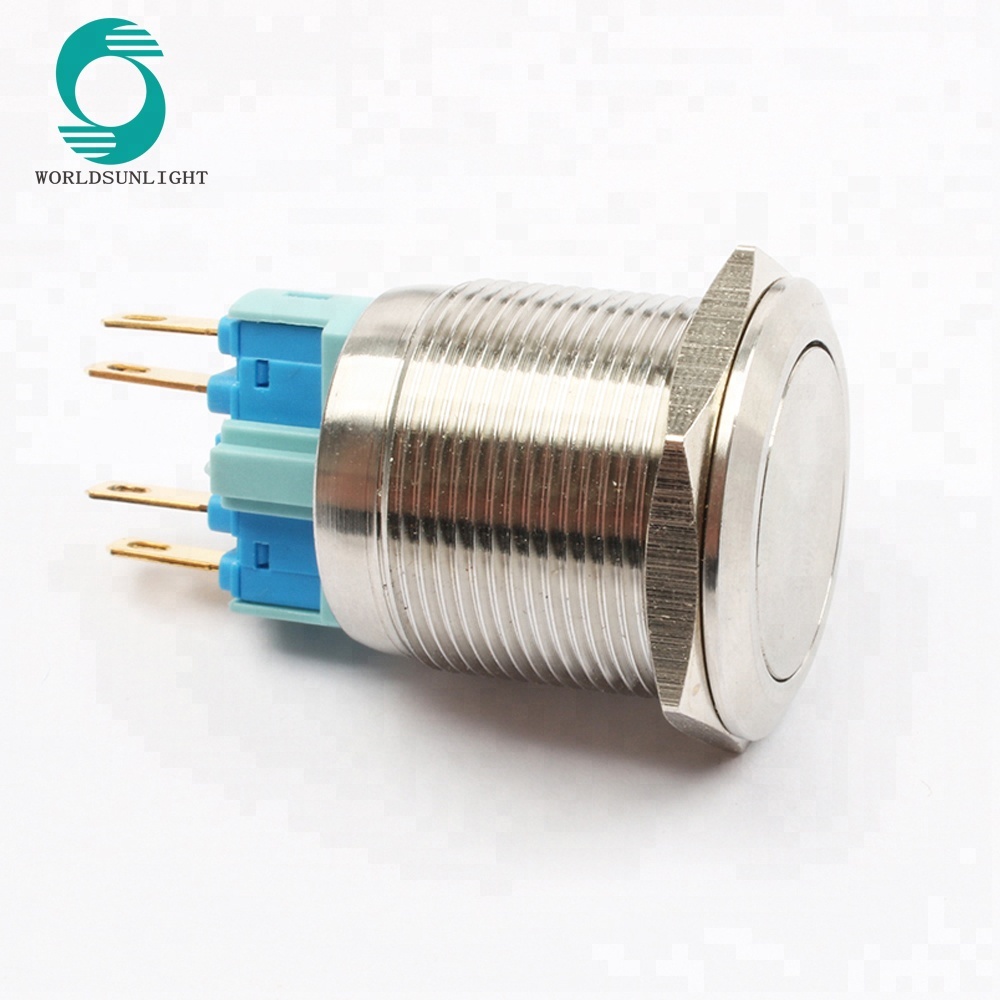

1)IP67 22mm 4 pins non-illuminated momentary or latching waterproof metal stainless steel pushbutton push button switch
2)22mm,solder terminal
3)Momentary or latching
4)CE RoHS SGS
5)Stainless steel,anti-vandal
Please note the latching or momentary type and illumination or non-illumination type if the oder is made.
30mm illuminated or non-illuminated latching
XL22N/F11 IP67 22mm 4 pins non-illuminated momentary or latching waterproof metal brass pushbutton push button switch
IP67 22mm 4 pins non-illuminated momentary or latching waterproof metal stainless steel pushbutton push button switch

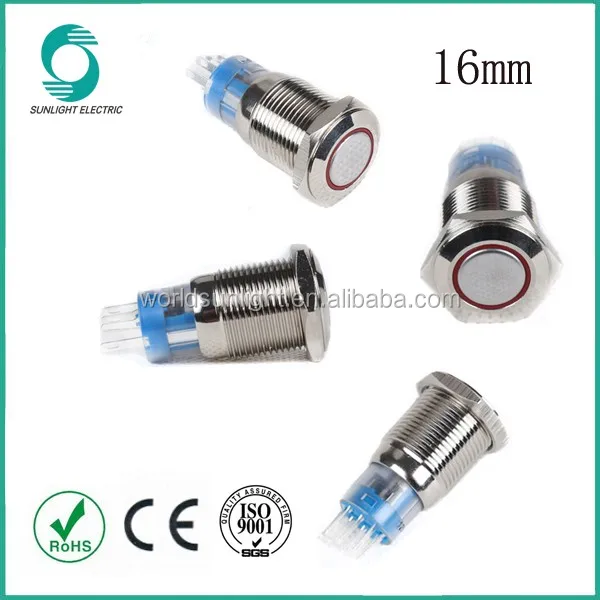

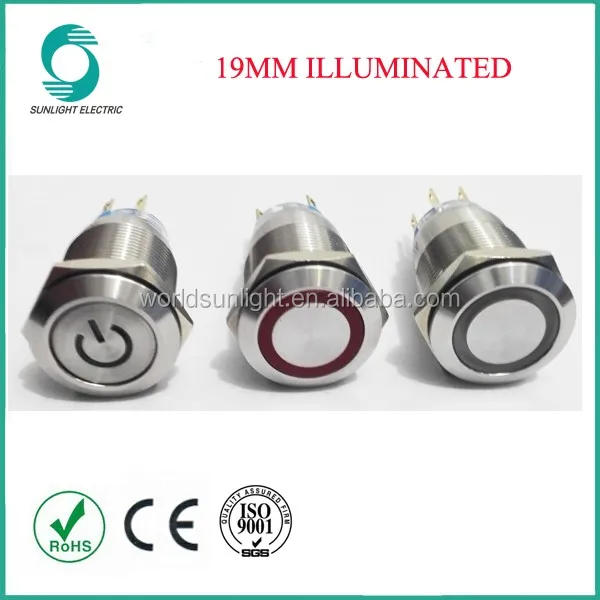

 | 16MM PUSH BUTTON SWITCH | | 19MM PUSH BUTTON SWITCH |
IP67 22mm 4 pins non-illuminated momentary or latching waterproof metal stainless steel pushbutton push button switch
Application:
| It can be used in variety of places such as Outdoor controls, Communications,Security equipment,Defense,Medical equipment,Industrial automation,Food processing equipment,Security control button,Industrial machinary,Coffee maker control button,Transportation:Mass-transit,life trucks,Bathroom control button and so on. |
IP67 22mm 4 pins non-illuminated momentary or latching waterproof metal stainless steel pushbutton push button switch
The introduction of model:
|
IP67 22mm 4 pins non-illuminated momentary or latching waterproof metal stainless steel pushbutton push button switch
Technical parameters:
Illuminated Options | Non-illuminated | ||
Max. Switch Rating | 5A/ 250VAC | ||
Contact Resistance | ≤30mΩ | ||
Insulation Resistance | ≥1000mΩ | ||
Dielectric Strengh | 2000VAC | ||
Operation Temp. | -20°C ~ +55°C | ||
Mechanical Life | 2,000,000 cycles | ||
Electrical Life | >50,000 cycles | ||
Contact Material | Silver Alloy | ||
Torque | 5 ~ 14 Nm | ||
Operation Pressure | 2.5 ~ 4 N | ||
Operation Travel | About 2.8mm | ||
Protection | IP40/IP67/IK09 | ||
Material | Contact | Silver Alloy | |
Actuator/Body | Stainless Steel/ Anodized Aluminum/Nickel-plated Brass | ||
Base | PBT | ||
Life | Approx. 40, 000hours | ||
IP67 22mm 4 pins non-illuminated momentary or latching waterproof metal stainless steel pushbutton push button switch
Terminal description:
|
IP67 22mm 4 pins non-illuminated momentary or latching waterproof metal stainless steel pushbutton push button switch
Order Code:
Momentary: Means that when you push switch and then move your finger, the actuator will back to the original position.
Latching: Means that when you push switch once it will change state and stay in this pushed-down position and will not come back to original position unless you push it again.
IP67 22mm 4 pins non-illuminated momentary or latching waterproof metal stainless steel pushbutton push button switch

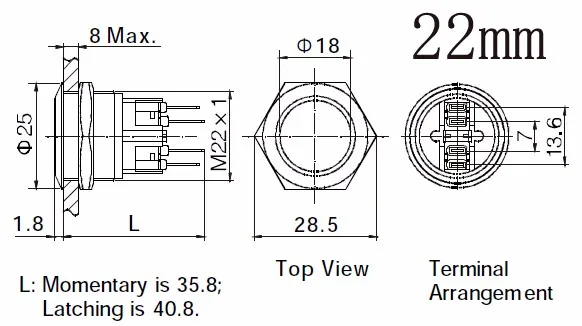

Dimensions:
|
IP67 22mm 4 pins non-illuminated momentary or latching waterproof metal stainless steel pushbutton push button switch

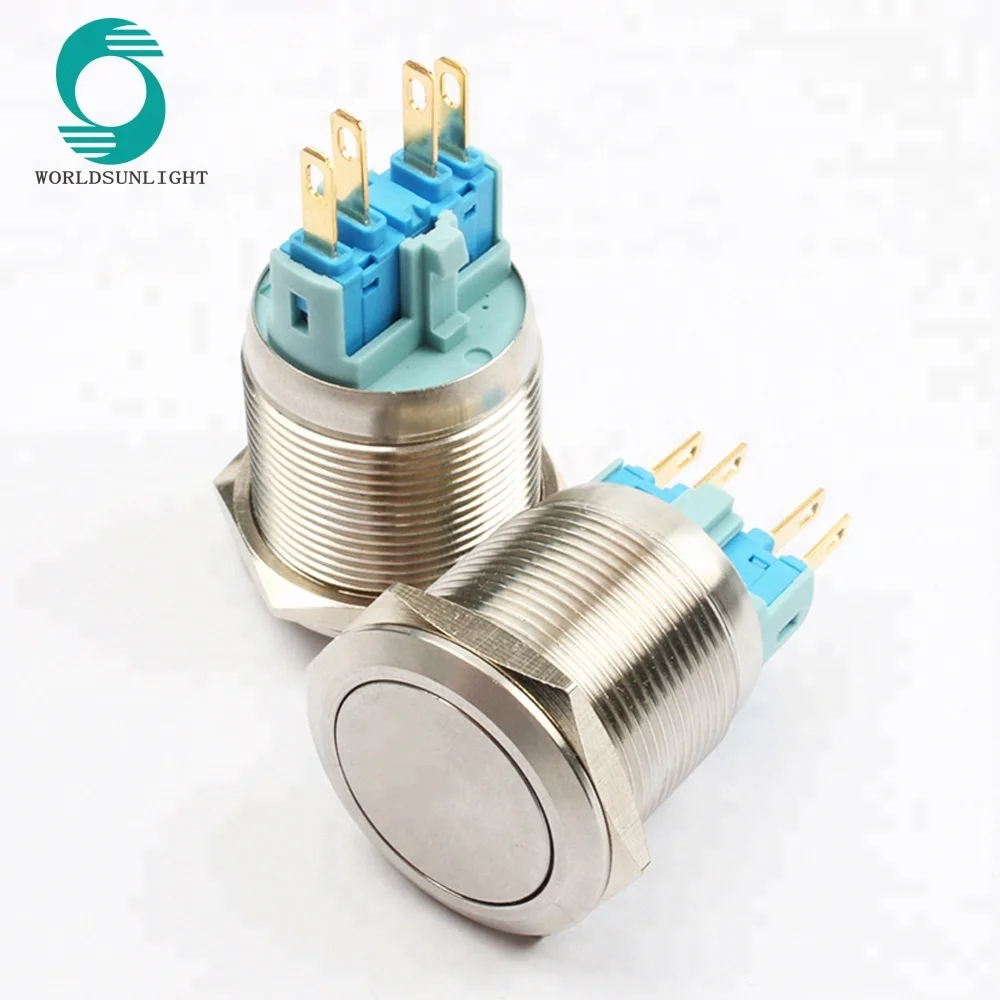

Pictures:
|
|
Production Flow IP67 22mm 4 pins non-illuminated momentary or latching waterproof metal stainless steel pushbutton push button switch
As follows:
|
IP67 22mm 4 pins non-illuminated momentary or latching waterproof metal stainless steel pushbutton push button switch
Packaging:
|
IP67 22mm 4 pins non-illuminated momentary or latching waterproof metal stainless steel pushbutton push button switch
Our services:
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested in the reasonable price will be provided to you upon receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit our company and technology communication.
IP67 22mm 4 pins non-illuminated momentary or latching waterproof metal stainless steel pushbutton push button switch
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing of push button switches and electronic environmental protection products.
We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS,SGS,ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well received by our customers from all over the world.
|
