Specifications

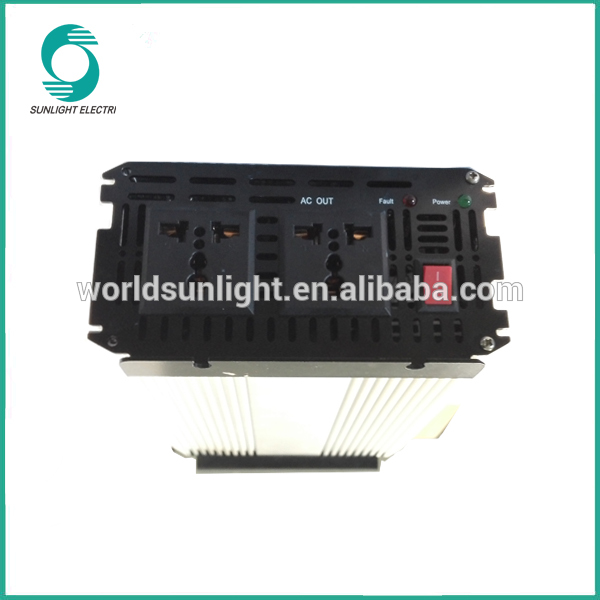

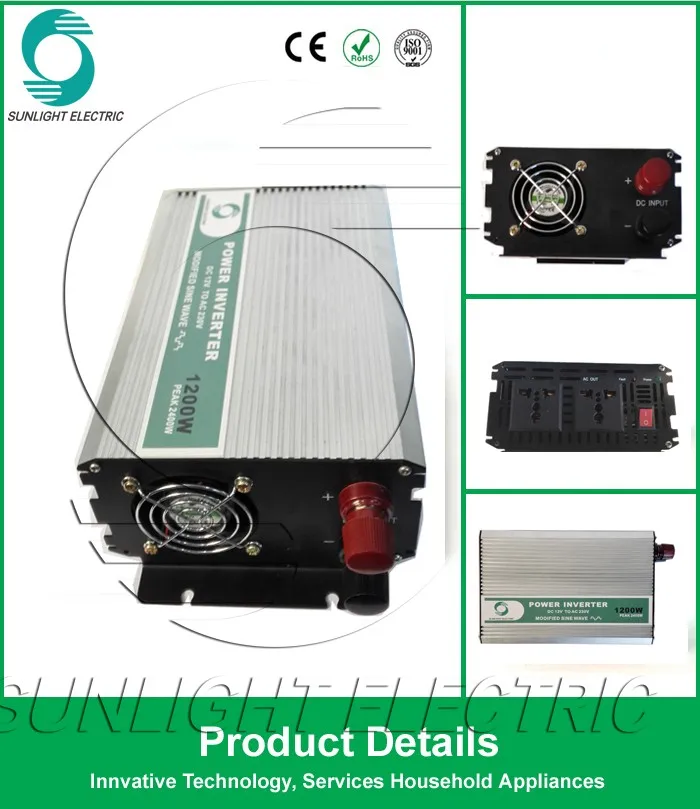

1200w off grid solar input dc 12v 24v 48v to output ac 120v 230v micro modified sine wave power inverter
(1)12V,24V,48VDC input, 230±10V/120±10V output
(2) USB Output (Optional) 5.0±0.25V DC/NC 0.5A/1.0A/2.0A/NC
(3) Efficiency: ≥88%
(4)CE,ROHS
1200w off grid solar input dc 12v 24v 48v to output ac 120v 230v micro modified sine wave power inverter
1. Application and Description 1200w off grid solar input dc 12v 24v 48v to output ac 120v 230v micro modified sine wave power inverter
---The Modified sine wave Series Inverters are suitable for most loads and provide an economical way to get instant AC power anywhere and anytime as long as a battery is handy. ---The inverter converts a DC power source (e.g. from a car, truck, boat or standard battery or solar panels) to 120V/230 VAC power. The inverter range is suitable for small solar installations. --- The power inverter can convert 12V/24V DC to 220V/110V AC to supply for the electronic products such as player MP3, player MP4, cell phone etc. ---Home, office, car, board and some place that lack electricity.Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity !Load :Mobile AC power used in car, computers, TV icebox, air-condition, stereo systems ect
|
 |
inverter 500w Benefits:
1. 100% brand new and high quality.
2. Able to work in the state of ultrasonic sound, which can both in a great extent minish the bulk and weight and make the circuit work without noise.
3. Provides 200 watts of AC power and 400 watts surge power
4. Audio alarm warns of low battery level prior to auto shut down.
5. Safely shuts down if over temperature or overload condition.
6. Operate a 13" TV for about 5 hours from a typical car battery.
2. Products Features 1200w off grid solar input dc 12v 24v 48v to output ac 120v 230v micro modified sine wave power inverter
·Smart size, light body, safe & environment-friendly.
·100% real Continuous Power output.
·Used in 12V Car, RV, Marine and any other vehicles.
·Input & output isolation
·Multiple protection circuit for Low voltage / Over voltage / Overload / Short-circuit / Overheat
·USB output port:2000mA
3. Specifications and parameters 1200w off grid solar input dc 12v 24v 48v to output ac 120v 230v micro modified sine wave power inverter
| XLM1200 Specification | ||||
| AC Output | ||||
| Continuous Power | 1200W | |||
| Peak Power | 2400W | |||
| Voltage Wave Form | Modified Sine Wave | |||
| Efficiency | ≥90% | |||
| AC Voltage Range | 230±10V/120±10V | |||
| Frequency | 50±2Hz/60±2Hz | |||
| USB Output (Optional) | Volt | 5.0±0.25V DC/NC | ||
| Current | 0.5A/1.0A/2.0A/NC | |||
| DC Input | ||||
| Rated Input Volt | 13.2V | 26.4V | 52.8V | |
| Input Volt Range | 11-15V | 22-30V | 44-60V | |
| Low Volt Alarm | 10.5±0.5V | 21.0±1V | 42.0±2V | |
| Low Volt Cut Off | 10.0±0.5V | 20.0±1V | 40.0±2V | |
| Low Volt Restart | 12.0±0.5V | 24.0±1V | 48.0±2V | |
| High Volt Cut Off | 16.0±0.5V | 32.0±1V | 64.0±2V | |
| High Volt Restart | 15.0±0.5V | 30.0±1V | 60.0±2V | |
| No Load Current | ≤0.5A | ≤0.25A | ≤0.12A | |
| Protection | ||||
| Low Volt Protection | Yes | Short Circuit Protection | Yes | |
| High Volt Protection | Yes | Temperature Protection | ≤65℃(Shell) | |
| Over-load Protection | Yes | Reverse Protection | By fuse | |
| Other Properties | ||||
| Circuit Configuration | Isolated | Start Type | Soft Start | |
| Operating Indicate | Green LED | Fault Indicate: | Red LED And Alarm | |
| Operating Temperature | -10~40℃ | Operating Humidity | 10%~90%(Non-condensate) | |
| Storage Temperature | -20~55℃ | Storage Humidity | 5%~95% | |
| N.W.(kg) | 2.1 | Case Size/L*W*H(mm) | 225*150*76 | |
|
4.Factory and production process 1200w off grid solar input dc 12v 24v 48v to output ac 120v 230v micro modified sine wave power inverter
|
|

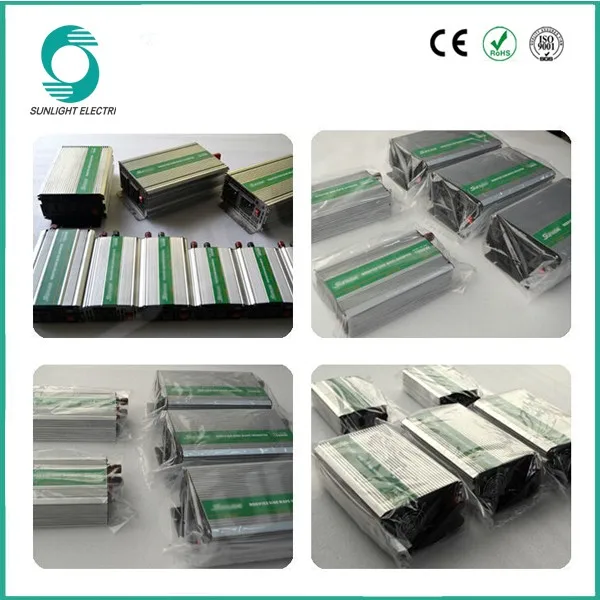

5. PACKING 1200w off grid solar input dc 12v 24v 48v to output ac 120v 230v micro modified sine wave power inverter
|
|
6. Shipping 1200w off grid solar input dc 12v 24v 48v to output ac 120v 230v micro modified sine wave power inverter
|
7. After sale services 1200w off grid solar input dc 12v 24v 48v to output ac 120v 230v micro modified sine wave power inverter
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested & the reasonable price will be provided to you upon
receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit to our company and technology communication.
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing
of solar products and electronic environmental protection products.
These lines cover solar panel, solar charge controller, on/off solar inverter, solar home system, solar light kit, solar cable etc. We focus on all types of solar products.
We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS, ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well
received by our customers from all over the world.
|
1. Do I Need A Power Inverter?
Actually, no. This is the only component of a solar energy system that is not absolutely required. However, if you don"t use one, you will not have 120 volts AC and will have use battery power alone. This might be acceptable in a small RV or cabin, but most people want to use normal AC appliances.
2. What"s The Difference Between 12, 24, And 48 Volt Inverters?
This refers to the input voltage from the battery bank. The main consideration is that at higher voltages the current is less so that you can use smaller wires between your solar panel array and your battery bank. Of course, when you decide on a system voltage, the Solar Panels, Inverter, and Battery Bank all need to use the same voltage.
3. What"s The Difference Between A Pure Sine Wave Inverter And A Modified Sine Wave Inverter?
The AC sine wave of a pure sine wave inverter is just as good as the utility company"s AC power. A modified sine wave inverter is not as close, but is still quite satisfactory in most cases. Certain motor control circuits don"t like the modified wave. Modified sine wave inverters are also much less expensive.
Thanks for your time and if you can let us know your details like the following will be much apreciated before order or inquiry:
1. You"d like modified sine wave or pure sine wave inverter?
2. How many the power, the input DC and output AC volts, the frequency 50hz or 60hz?
3. There are different output sockets, which type is more suitable for yours?
|
