SUNLIGHT/OEM

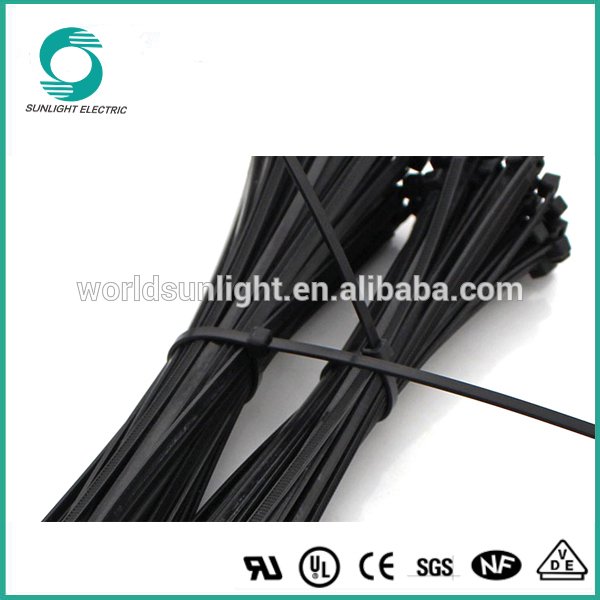

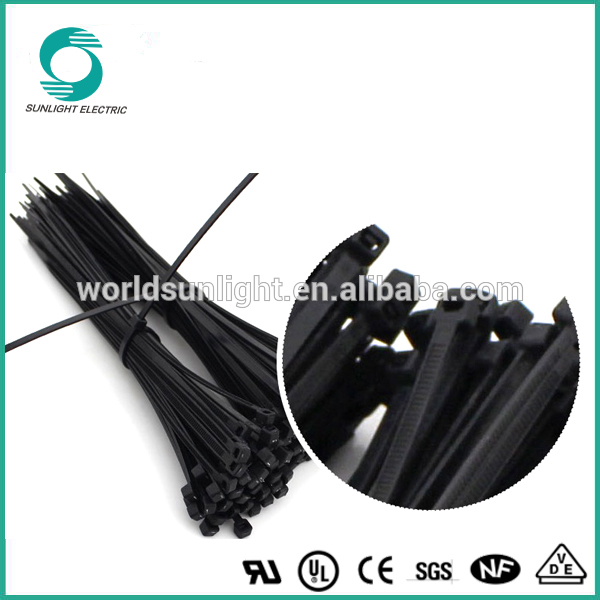

adjustable reinforced fasten strap self-locking nylon tie
Material: UL approved Nylon 66, fireproof grade 94V-2, acid corrosion, good insulation, not aging,bear strong.
Color: Standard color is gray (white), and another anti-ultraviolet radiation outside the black and other colors welcome to order.
Operating temperture: -30°c to 85 °c
Prodution: As you requirement
Application scope: Broadly
|
ITEM.NO. | L | W(mm) | Bundle Diameter E(mm) | Min.loop Tensile Strength | ||
INCH | MM | LBS | KGS | |||
XLC-3×60 | 2 3/8" | 60 | 2.5 | 2-11 | 18 | 8 |
XLC-3×80 | 3 3/16" | 80 | 2.5 | 2-16 | 18 | 8 |
XLC-3×90 | 3 5/8" | 90 | 2.5 | 2-18 | 18 | 8 |
XLC-3×100 | 4" | 100 | 2.5 | 2-22 | 18 | 8 |
XLC-3×120 | 4 3/4" | 120 | 2.5 | 2-30 | 18 | 8 |
XLC-3×140 | 5 1/2" | 140 | 2.5 | 2-33 | 18 | 8 |
XLC-3×150 | 6" | 150 | 2.5 | 2-35 | 18 | 8 |
XLC-3×160 | 6 1/4" | 160 | 2.5 | 2-40 | 18 | 8 |
XLC-3×200 | 8" | 200 | 2.5 | 3-50 | 18 | 8 |
XLC-4×100 | 4" | 100 | 3.5 | 3-22 | 40 | 18 |
XLC-4×120 | 4 3/4" | 120 | 3.5 | 3-30 | 40 | 18 |
XLC-4×140 | 5 1/2" | 140 | 3.5 | 3-33 | 40 | 18 |
XLC-4×150 | 6" | 150 | 3.5 | 3-35 | 40 | 18 |
XLC-4×180 | 7" | 180 | 3.5 | 3-42 | 40 | 18 |
XLC-4×200 | 8" | 200 | 3.5 | 3-50 | 40 | 18 |
XLC-4×220 | 8 5/8" | 220 | 3.5 | 3-58 | 40 | 18 |
XLC-4×250 | 10" | 250 | 3.5 | 3-65 | 40 | 18 |
XLC-4×280 | 11" | 280 | 3.5 | 3-70 | 40 | 18 |
XLC-4×300 | 11 5/8" | 300 | 3.5 | 3-80 | 40 | 18 |
XLC-4×370 | 14 1/2" | 370 | 3.5 | 3-102 | 40 | 18 |
XLC-5×120 | 4 3/4" | 120 | 4.5 | 3-24 | 50 | 22 |
XLC-5×180 | 7" | 180 | 4.5 | 3-42 | 50 | 22 |
XLC-5×190 | 7 1/2" | 190 | 4.5 | 3-46 | 50 | 22 |
XLC-5×200 | 8" | 200 | 4.5 | 3-50 | 50 | 22 |
XLC-5×250 | 10" | 250 | 4.5 | 3-65 | 50 | 22 |
XLC-5×280 | 11" | 280 | 4.5 | 3-70 | 50 | 22 |
XLC-5×300 | 11 8/5" | 300 | 4.5 | 3-82 | 50 | 22 |
XLC-5×350 | 13 3/4" | 350 | 4.8 | 3-90 | 50 | 22 |
XLC-5×380 | 15" | 380 | 4.8 | 3-102 | 50 | 22 |
XLC-5×400 | 15 3/4" | 400 | 4.8 | 3-105 | 50 | 22 |
XLC-5×430 | 17" | 430 | 4.8 | 3-110 | 50 | 22 |
XLC-5×450 | 17 3/4" | 450 | 4.8 | 3-130 | 50 | 22 |
XLC-5×500 | 19 11/16" | 500 | 4.8 | 3-150 | 50 | 22 |
XLC-8×150 | 6" | 150 | 6.8 | 3-33 | 85 | 38 |
XLC-8×180 | 7" | 180 | 6.8 | 3-42 | 85 | 38 |
XLC-8×200 | 8" | 200 | 6.8 | 3-50 | 85 | 38 |
XLC-8×250 | 10" | 250 | 7.5 | 4-63 | 120 | 55 |
XLC-8×300 | 11 5/8" | 300 | 7.5 | 4-82 | 120 | 55 |
XLC-8×350 | 13 3/4" | 350 | 7.5 | 4-90 | 120 | 55 |
XLC-8×370 | 14 1/4" | 370 | 7.5 | 4-98 | 120 | 55 |
XLC-8×400 | 15 3/4" | 400 | 7.5 | 4-105 | 120 | 55 |
XLC-8×450 | 17 3/4" | 450 | 7.5 | 4-118 | 120 | 55 |
XLC-8×500 | 19 11/16" | 500 | 7.5 | 4-150 | 120 | 55 |
XLC-8×550 | 21 1/16" | 550 | 7.5 | 4-160 | 120 | 55 |
XLC-8×600 | 23 5/8" | 600 | 7.5 | 4-170 | 120 | 55 |
XLC-8×750 | 29 9/16" | 750 | 7.5 | 4-220 | 120 | 55 |
XLC-9×450 | 17 3/4" | 450 | 9.0 | 4-118 | 175 | 80 |
XLC-9×530 | 20 3/4" | 530 | 9.0 | 8-155 | 175 | 80 |
XLC-9×550 | 21 1/16" | 550 | 9.0 | 8-160 | 175 | 80 |
XLC-9×600 | 23 5/8" | 600 | 9.0 | 8-170 | 175 | 80 |
XLC-9×650 | 25 9/16" | 650 | 9.0 | 8-190 | 175 | 80 |
XLC-9×700 | 27 1/2" | 700 | 9.0 | 10-205 | 175 | 80 |
XLC-9×760 | 30" | 760 | 9.0 | 10-225 | 175 | 80 |
XLC-9×920 | 36 1/4" | 920 | 9.0 | 10-265 | 175 | 80 |
XLC-9×1020 | 40 1/6" | 1020 | 9.0 | 10-295 | 175 | 80 |
XLC-9×1150 | 45 1/4" | 1150 | 9.0 | 10-310 | 175 | 80 |
XLC-9×1220 | 48" | 1210 | 9.0 | 10-340 | 175 | 80 |
XLC-9×1350 | 53" | 1350 | 9.0 | 10-380 | 175 | 80 |
XLC-10×450 | 17 3/4" | 450 | 10.0 | 10-125 | 200 | 91 |
XLC-10×500 | 19 11/16" | 500 | 10.0 | 12-150 | 200 | 91 |
XLC-12×300 | 11 5/8" | 300 | 12.7 | 12-82 | 250 | 114 |
XLC-12×400 | 15 3/4" | 400 | 12.7 | 12-105 | 250 | 114 |
XLC-12×540 | 21 1/4" | 540 | 12.7 | 14-155 | 250 | 114 |
XLC-12×650 | 25 9/16" | 650 | 12.0 | 14-190 | 250 | 114 |
XLC-12×750 | 29 9/16" | 750 | 12.0 | 10-220 | 250 | 114 |
XLC-12×780 | 30 3/4" | 780 | 12.7 | 14-230 | 250 | 114 |
XLC-13×540 | 21 1/4" | 540 | 13.0 | 14-155 | 250 | 114 |
XLC-1.8×100 | 4" | 100 | 1.8 | 2-22 | 14 | 6.5 |
XLC-1.9×120 | 4 3/4" | 120 | 1.9 | 2-30 | 14 | 6.5 |
XLC-1.9×150 | 6" | 150 | 1.9 | 2-35 | 14 | 6.5 |
XLC-2.2×60 | 2 3/8" | 60 | 2.2 | 2-11 | 18 | 8 |
XLC-2.2×80 | 3 3/16" | 80 | 2.2 | 2-18 | 18 | 8 |
XLC-2.2×100 | 4" | 100 | 2.2 | 2-22 | 18 | 8 |
XLC-2.2×120 | 4 3/4" | 120 | 2.2 | 2-30 | 18 | 8 |
XLC-2.2×150 | 6" | 150 | 2.2 | 2-35 | 18 | 8 |
XLC-2.2×200 | 8" | 200 | 2.2 | 3-50 | 18 | 8 |
XLC-2.9×150 | 6" | 150 | 2.9 | 3-35 | 33 | 15 |
XLC-2.9×200 | 8" | 200 | 2.9 | 3-50 | 33 | 15 |
XLC-2.9×250 | 10" | 250 | 2.9 | 3-65 | 33 | 15 |
XLC-2.9×300 | 11 5/8" | 300 | 2.9 | 3-80 | 33 | 15 |
XLC-3.2×150 | 6" | 150 | 3.2 | 3-35 | 40 | 18 |
XLC-3.2×180 | 7" | 180 | 3.2 | 3-42 | 40 | 18 |
XLC-3.2×200 | 8" | 200 | 3.2 | 3-50 | 40 | 18 |
XLC-3.2×250 | 10" | 250 | 3.2 | 3-65 | 40 | 18 |
XLC-3.2×300 | 11 5/8" | 300 | 3.2 | 3-80 | 40 | 18 |
XLC-3.7×350 | 13 3/4" | 350 | 3.7 | 3-90 | 40 | 18 |
XLC-3.7×400 | 15 3/4" | 400 | 3.7 | 3-105 | 40 | 18 |
XLC-4.2×180 | 7" | 180 | 4.2 | 3-42 | 50 | 22 |
XLC-4.2×200 | 8" | 200 | 4.2 | 3-50 | 50 | 22 |
XLC-4.2×250 | 10" | 250 | 4.2 | 3-65 | 50 | 22 |
XLC-4.2×300 | 11 5/8" | 300 | 4.2 | 3-80 | 50 | 22 |
XLC-4.2×350 | 13 3/4" | 350 | 4.2 | 3-90 | 50 | 22 |
XLC-4.2×380 | 15" | 380 | 4.2 | 3-102 | 50 | 22 |
XLC-4.2×400 | 15 3/4" | 400 | 4.2 | 3-105 | 50 | 22 |
XLC-5.2×180 | 7" | 180 | 5.2 | 3-42 | 65 | 30 |
XLC-5.2×200 | 8" | 200 | 5.2 | 3-50 | 65 | 30 |
XLC-5.2×250 | 10" | 250 | 5.2 | 3-65 | 65 | 30 |
XLC-5.2×300 | 11 5/8" | 300 | 5.2 | 3-80 | 65 | 30 |
XLC-5.5×350 | 13 3/4" | 350 | 5.5 | 3-90 | 65 | 30 |
XLC-5.5×400 | 15 3/4" | 400 | 5.5 | 3-105 | 65 | 30 |
XLC-5.5×500 | 19 11/16" | 500 | 5.5 | 3-150 | 65 | 30 |
XLC-6.0×270 | 10 5/8" | 270 | 6.0 | 4-65 | 65 | 30 |
XLC-6.5×250 | 10" | 250 | 6.5 | 4-65 | 85 | 38 |
XLC-6.5×300 | 11 5/8" | 300 | 6.5 | 4-80 | 85 | 38 |
XLC-6.5×350 | 13 3/4" | 350 | 6.5 | 4-90 | 85 | 38 |
XLC-6.5×400 | 15 3/4" | 400 | 6.5 | 4-105 | 85 | 38 |
XLC-6.5×450 | 17 3/4" | 450 | 6.5 | 4-130 | 85 | 38 |
XLC-6.5×500 | 19 11/16" | 500 | 6.5 | 4-150 | 85 | 38 |
|

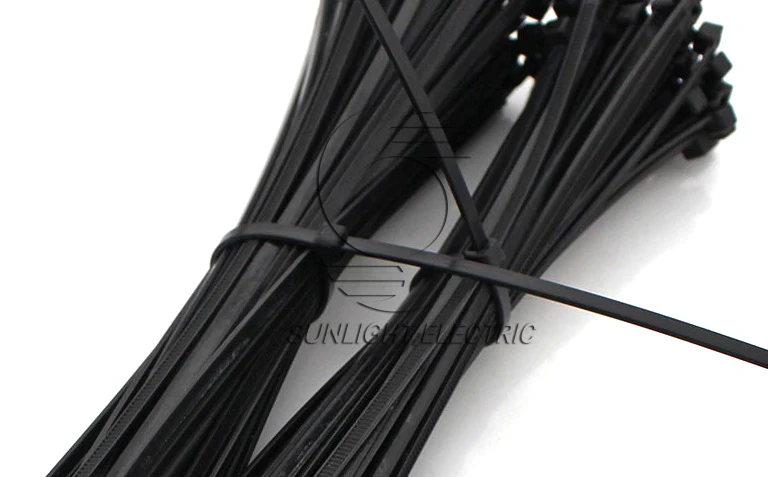

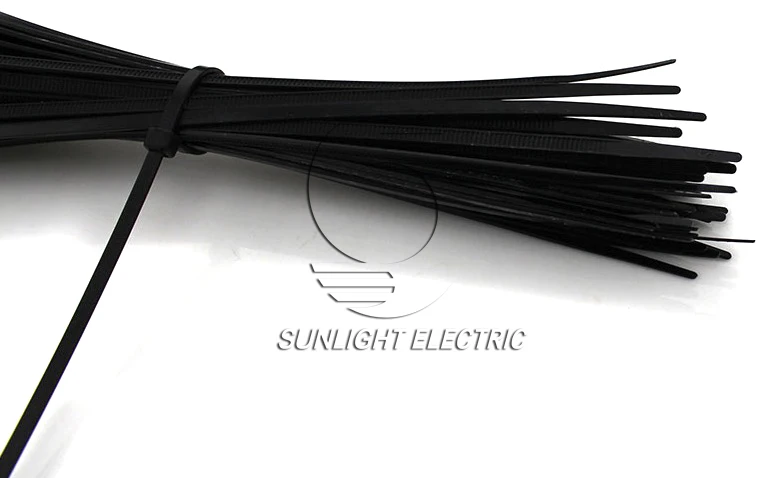

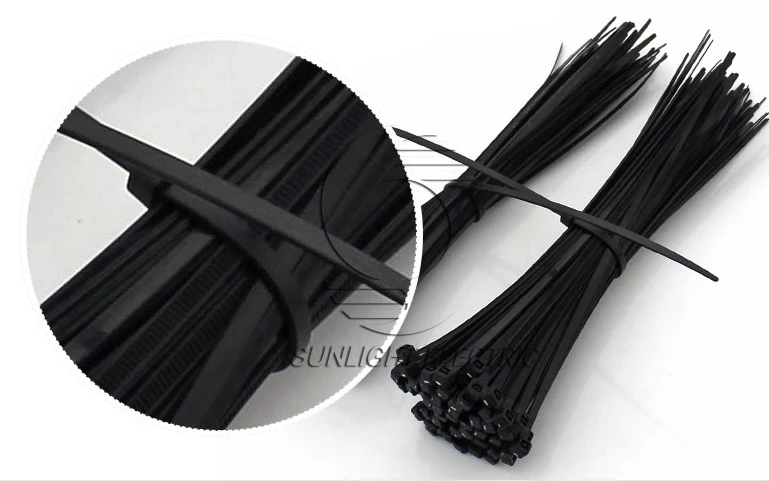

SUNLIGHT/OEM adjustable reinforced fasten strap self-locking nylon tie

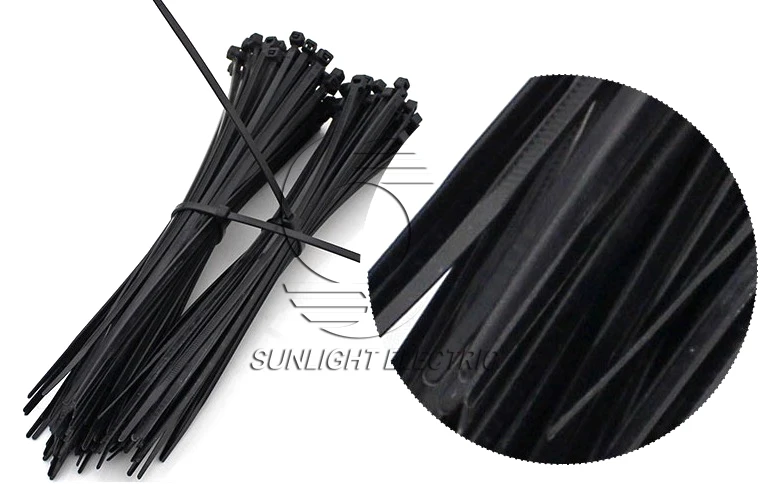

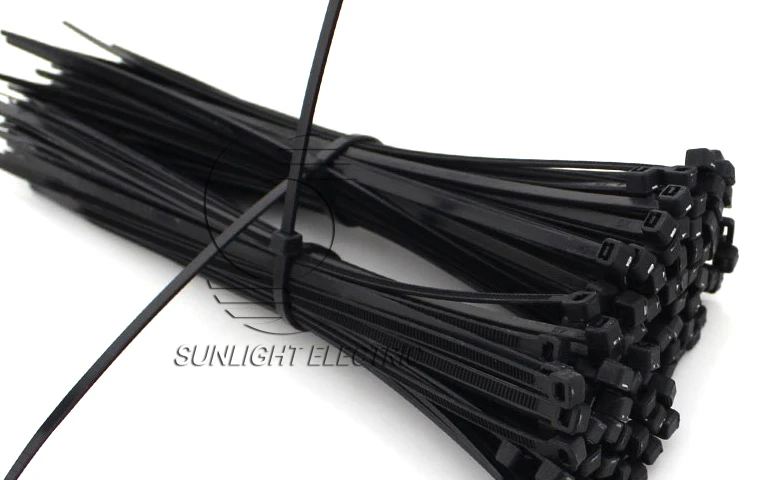

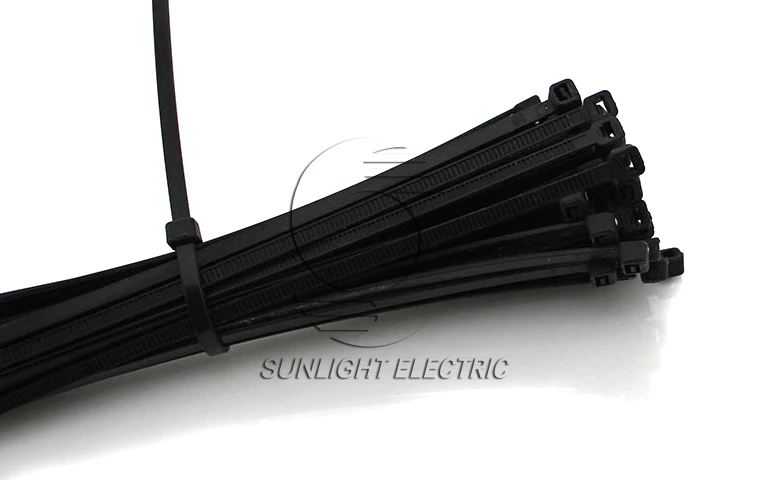

SUNLIGHT/OEM adjustable reinforced fasten strap self-locking nylon tie
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested & the reasonable price will be provided to you upon receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit to our company and technology communication.

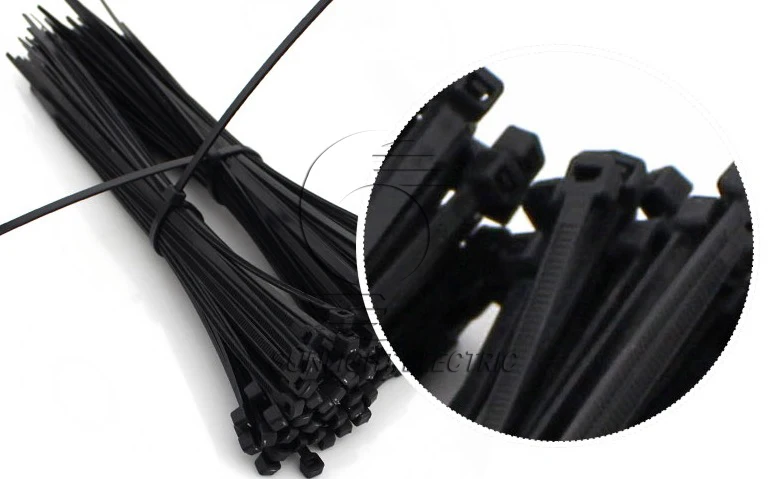

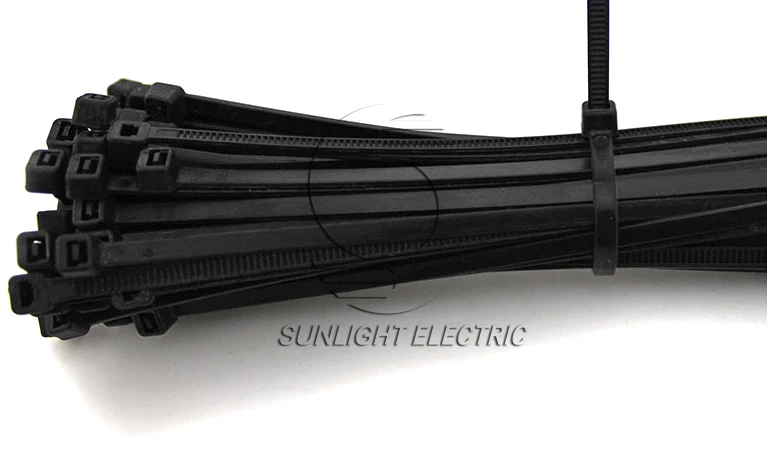

SUNLIGHT/OEM adjustable reinforced fasten strap self-locking nylon tie
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing of cable ties.
These lines cover self-locking nylon cable ties, releasable lashing cable ties, push mount ties, movable nylon ties,mountable head ties, etc. We focus on all types of cable ties.
We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS, ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very wellreceived by our customers from all over the world.
|
Q1: Are you a manufacturer of self-locking nylon cable tie?
A1:yes. We have 3 years export exprience.
Q2: Delivery time?
A2:Will send the goods out within 72 hours after the order confirmed.
Q3: After Sales Service?
A3: if u have any questions about the receuved product, we will try our best to solve it.
Q4: Return the goods?
A4: If the product really has quality problem, we will accept return the old one and send again.
