Features:

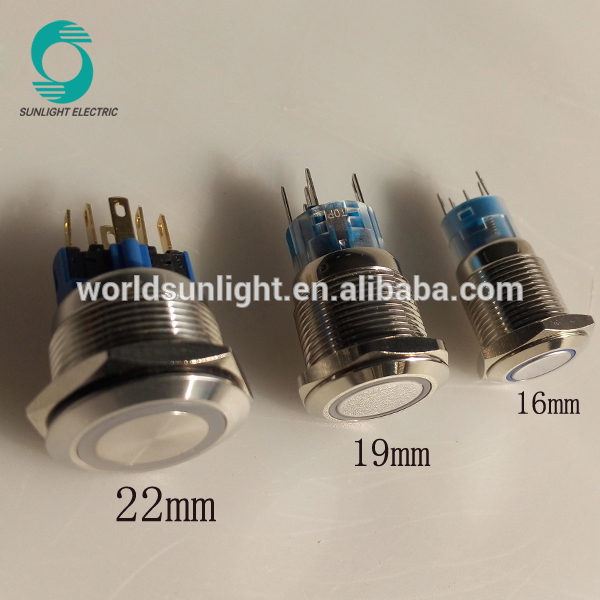

1)16mm 19mm 22mm 25mm 30mm led type illuminated 1NO 1NC or 2NO 2NC waterproof stainless steel pushbutton push button switch
2)16mm 19mm 22mm 25mm and 30mm,solder terminal
3)Latching or momentary
4)CE RoHS SGS
5)Stainless steel,anti-vandal
16mm 19mm 22mm 25mm 30mm led type illuminated 1NO 1NC or 2NO 2NC waterproof stainless steel pushbutton push button switch
Application:
 | It can be used in variety of places such as Outdoor controls, Communications,Security equipment,Defense,Medical equipment,Industrial automation,Food processing equipment,Security control button,Industrial machinary,Coffee maker control button,Transportation:Mass-transit,life trucks,Bathroom control button and so on. |
The introduction of model:
|
Technical parameters:
Type | XL16/XL19/XL22/XL25/XL30 |
|
| |||
Illuminated Options | Non-Illuminated | Ring | Dot | |||
Max. Switch Rating | 5A/ 250VAC | |||||
Contact Resistance | ≤30mΩ | |||||
Insulation Resistance | ≥1000mΩ | |||||
Dielectric Strengh | 2000VAC | |||||
Operation Temp. | -20°C ~ +55°C | |||||
Mechanical Life | 2,000,000 cycles | |||||
Electrical Life | >50,000 cycles | |||||
Contact Material | Silver Alloy | |||||
Torque | 5 ~ 14 Nm | |||||
Operation Pressure | 2.5 ~ 4 N | |||||
Operation Travel | About 2.8mm | |||||
Protection | IP40/IP67/IK09 | |||||
Material | Contact | Silver Alloy | ||||
Actuator/Body | Stainless Steel/ Anodized Aluminum | |||||
Base | PBT | |||||
LED spec. | Type | Ring/Dot | ||||
Color | R-Red | Y- Yellow | G-Green | B-Blue | W- White | |
Rated Voltage | 6V/12V/24V/110V/220V | |||||
Life | Approx. 40, 000hours | |||||

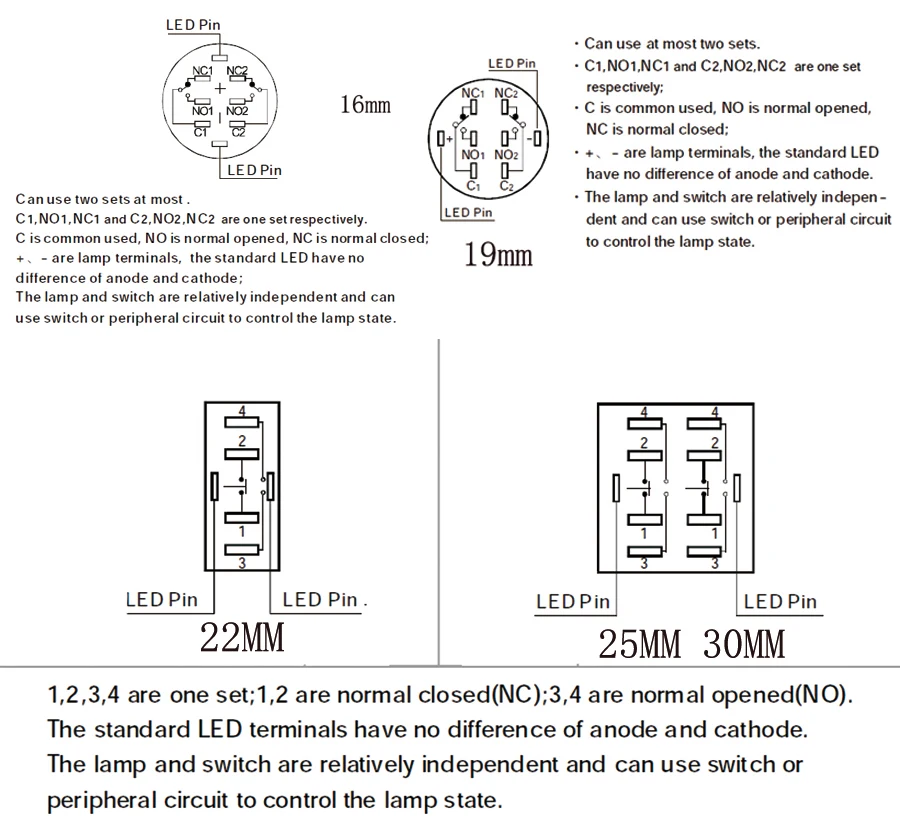

Terminal description:
|
Order Code:
Momentary: Means that when you push switch and then move your finger, the actuator will back to the original position.
Latching: Means that when you push switch once it will change state and stay in this pushed-down position and will not come back to original position unless you push it again.
Dimensions:
|

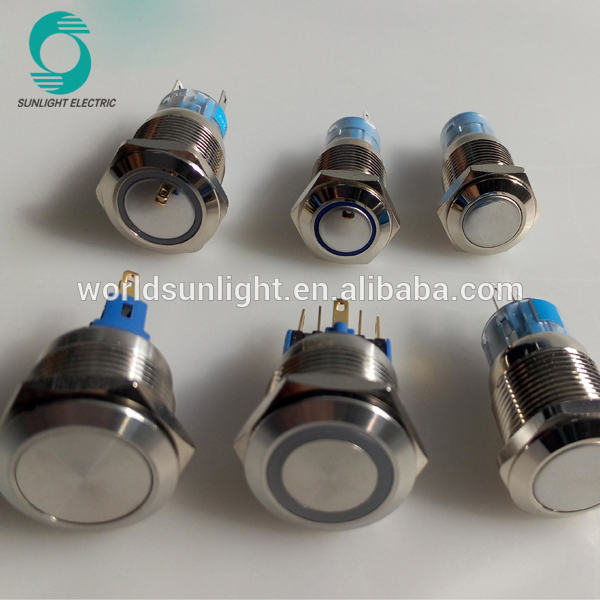

Pictures:
| RING ILLUMINATED | | DOT ILLUMINATED | | NON ILLUMINATED |
|
|
| We can also supply 2NO2NC push button switch. |
|
|
Anything needs me,plz send the inquiry to me!Thanks!We can supply 16mm 19mm 22mm 25mm 30mm push button switches.
You can also visit our offical website: www.worldsunlight.en.alibaba.com
The light show:
|
As follows:
|
Packaging:
|
Our services:
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested in the reasonable price will be provided to you upon receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit our company and technology communication.
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing of push button switches and electronic environmental protection products.
We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS,SGS,ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well received by our customers from all over the world.
|
Q1: Are you a manufacturer?
A1:yes. We have 3 years export exprience.
Q2: Delivery time?
A2:Will send the goods out within 72 hours after the order confirmed.
Q3: After Sales Service?
A3: if u have any questions about the receuved product, we will try our best to solve it.
Q4: Return the goods?
A4: If the product really has quality problem, we will accept return the old one and send again.
