- Place of Origin:
- Zhejiang, China
- Brand Name:
- Sunlight(XiangLang)/OEM
- Model Number:
- SSR-50DA
- Theory:
- Solid State Relay
- Usage:
- General Purpose
- Size:
- Miniature
- Protect Feature:
- Sealed
- Contact Load:
- Low Power
- Certifications:
- CE/ISO9001/ROHS
- Color:
- White
- Control Voltage:
- 3-32VDC
- Load Voltage:
- 24-380VAC
- Load Current:
- 50A
- Terminal type:
- Screw Mounting
- Contact material:
- Silver Alloy
- Product name:
- SSR Solid State Relay
- Solid State Relays:
- Single Phase Solid State Relay
- Application:
- Widely Used
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 4X4X3 cm
- Single gross weight:
- 0.115 kg
- Picture Example:
![package-img]()
- Lead Time:
- 6

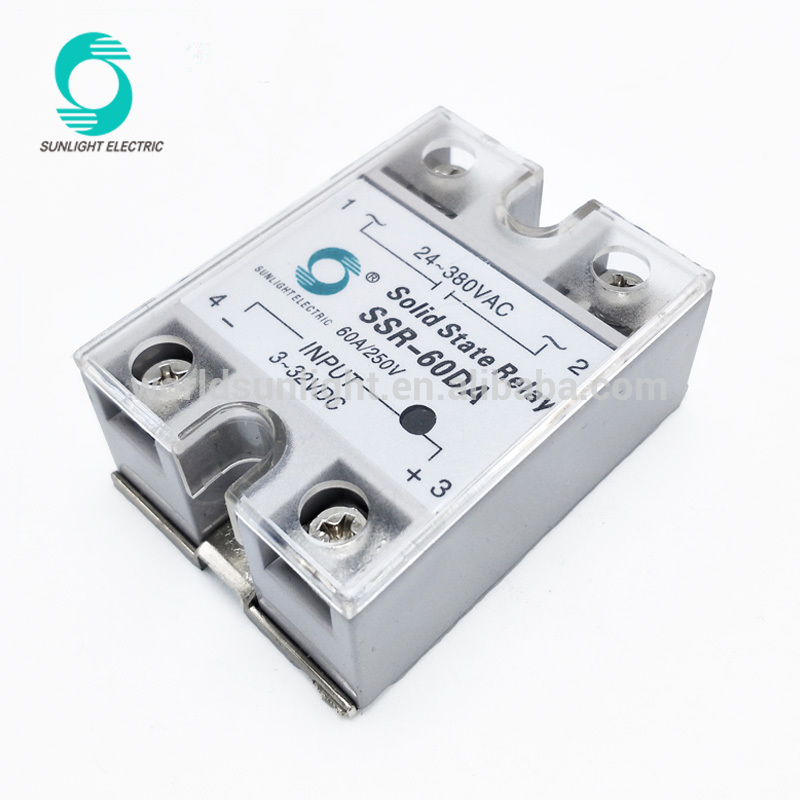

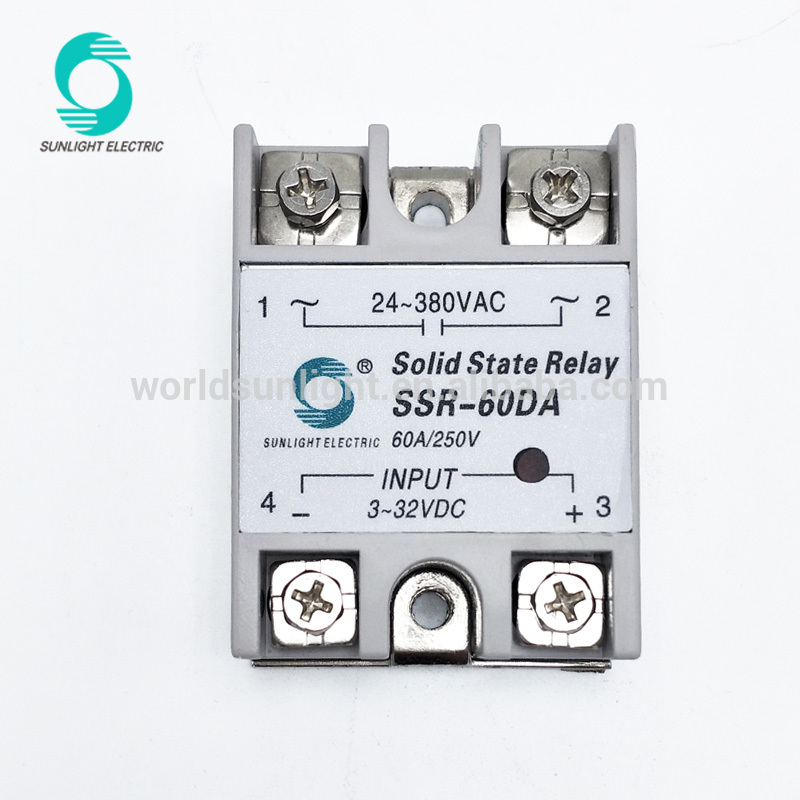

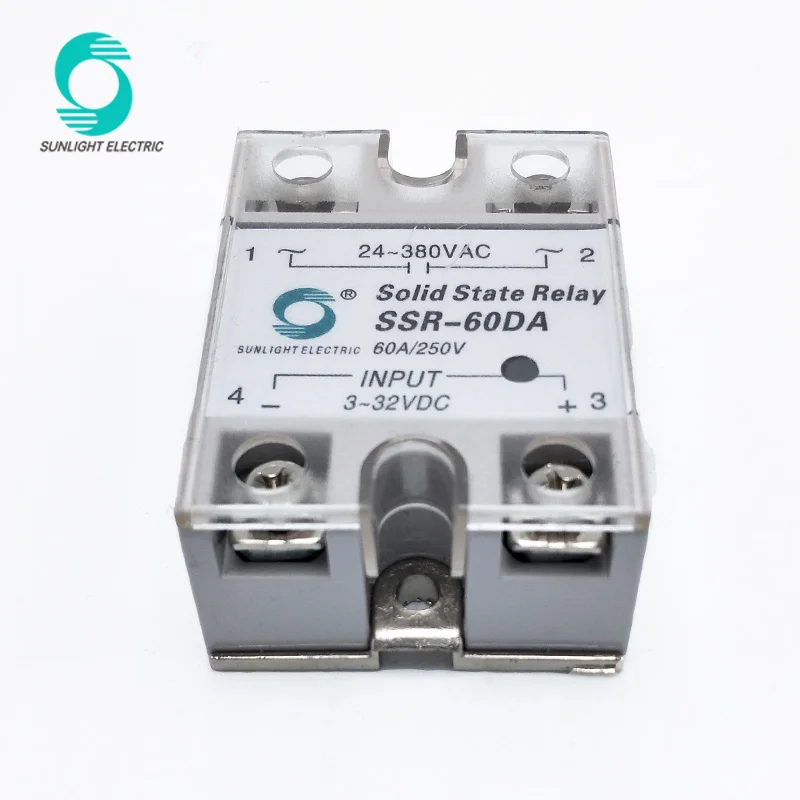

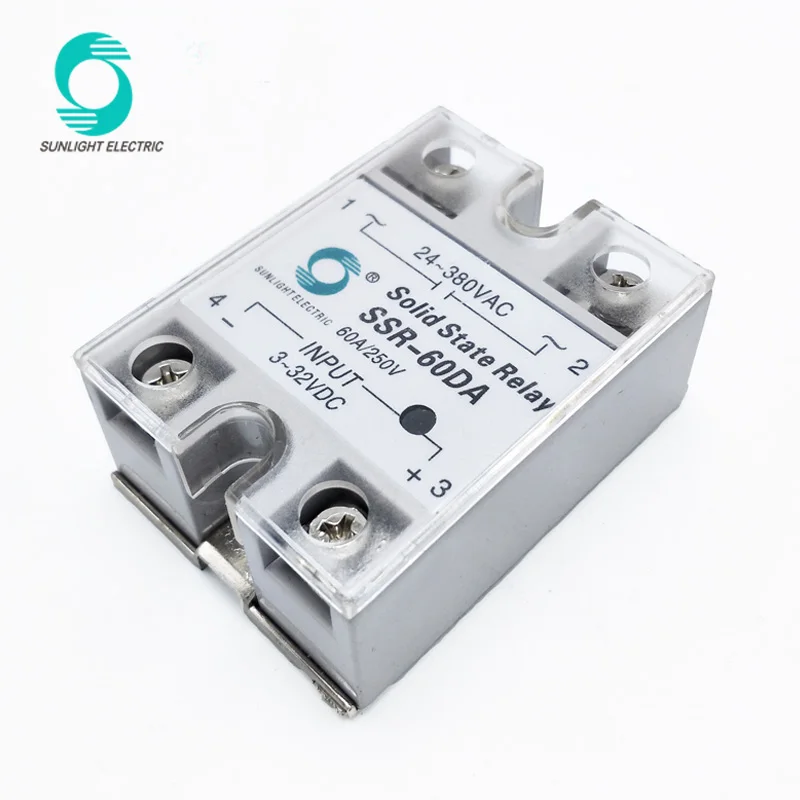

SSR-50DA 50A 3-32VDC input 24-380VAC output dc-ac type single phase dc to ac ssr solid state relay
Assortment of SSR |
SSR-50DA 50A 3-32VDC input 24-380VAC output dc-ac type single phase dc to ac ssr solid state relay
AC solid state raly can be divided into voltage zero-crossing conducting type(zero-crossing type for short) and random conducting type(random typer for short) by switching mode ; bidirectional controllable silicon output(normal type) and unidirectional controllable silicon antiparallel (strengthening type) by switch element ; Pin insert type (natural cooling, radiator unnecessary) on printed-wiring board and installing type(cooled by radiator) fixed on metal motherboard by installing mode; and wide scope input(DC3-32V) constant current type and tandem resistance limiting current type by input mode etc.
Application |
SSR-50DA 50A 3-32VDC input 24-380VAC output dc-ac type single phase dc to ac ssr solid state relay
Industrial automation installment, AC motor control, Intermediate relay,solenoid valve control, Numerical control machinery,external guidnance system,computer periphery connection, Illumination,stage lighting control, Electric stove,heating,warm control, street light,signal light,traffic light,Color photo enlargement, film processing equipment,injection machinery,automatic fire control and security system,etc.
Technical Parameters |
SSR-50DA 50A 3-32VDC input 24-380VAC output dc-ac type single phase dc to ac ssr solid state relay
SSR-50DA | |
| Load Current | 50A |
| Load Voltage | 24-380VAC |
| Control Voltage | 3-32VDC |
| Control Current | DC3-25mA |
| Ambient Temperature | -30~+75°C |
| Mountiong Methods | Bolt |
| Weight | 130g |
| Type | Control Voltage | Load Voltage | Load Current (A) |
| SSR-10DA | 3-32VDC | 24-380VAC | 10 |
| SSR-16DA | 3-32VDC | 24-380VAC | 16 |
| SSR-25DA | 3-32VDC | 24-380VAC | 25 |
| SSR-40DA | 3-32VDC | 24-380VAC | 40 |
| SSR-50DA | 3-32VDC | 24-240VAC | 50 |
| SSR-60DA | 3-32VDC | 24-380VAC | 60 |
| SSR-75DA | 3-32VDC | 24-380VAC | 75 |
| SSR-90DA | 3-32VDC | 24-380VAC | 90 |
| SSR-100DA | 3-32VDC | 24-380VAC | 100 |
| SSR-10DA-H | 3-32VDC | 90-480VAC | 10 |
| SSR-16DA-H | 3-32VDC | 90-480VAC | 16 |
| SSR-25DA-H | 3-32VDC | 90-480VAC | 25 |
| SSR-40DA-H | 3-32VDC | 90-480VAC | 40 |
| SSR-50DA-H | 3-32VDC | 90-480VAC | 50 |
| SSR-60DA-H | 3-32VDC | 90-480VAC | 60 |
| SSR-75DA-H | 3-32VDC | 90-480VAC | 75 |
| SSR-90DA-H | 3-32VDC | 90-480VAC | 90 |
| SSR-100DA-H | 3-32VDC | 90-480VAC | 100 |
Wiring and Dimension |
SSR-50DA 50A 3-32VDC input 24-380VAC output dc-ac type single phase dc to ac ssr solid state relay
 |
Pictures |
SSR-50DA 50A 3-32VDC input 24-380VAC output dc-ac type single phase dc to ac ssr solid state relay
|
|
Cautions while using the SSR |
SSR-50DA 50A 3-32VDC input 24-380VAC output dc-ac type single phase dc to ac ssr solid state relay
When the current is up to 40A,the SSR must be installed with radiator.
The dimension of radiator:
|
1. Over-current and loading short circuit result in SSR permanent damage. Quick fuse is one of the over-current protection methods. Small capacity may also adopt fuse. Over-voltage protection adopts parallel connection metal oxide varistor (MOV) as well as RC absorbing return inside SSR. The area size of MOV determines the absorbing power. The thickness of MOV determines protective voltage value. Generally, 220V series SSR may choose varistor of 500-630 VDC, 380V series SSR may choose varistor of 700-900VDC.
2. If ambient temperature is too high, the loading capacity of SSR will descend. If the ambient temperature is high or the heat radiation is bad, the chosen SSR should be kept a certain margin.
3. The resistance load should not surpass 60% of rated current. The inductance load should not surpass 40% of rated current.
| |
| |
TNT: about 5-7 working days could reach your side normally
EMS: need 10-15 working days to reach your side
UPS: special express for North America,need 3-5 working days
DHL: normally 3-5 working days could reach your side
FEDEX: normally 3-10 working days could reach US and European
