1.Solar Energy PV DC circuit breaker
2.rated current: 25 A
3.Rated Voltage: 250V/500V/800V/1000V/1200V
4.certificate: CE ISO9001 SAA CCC

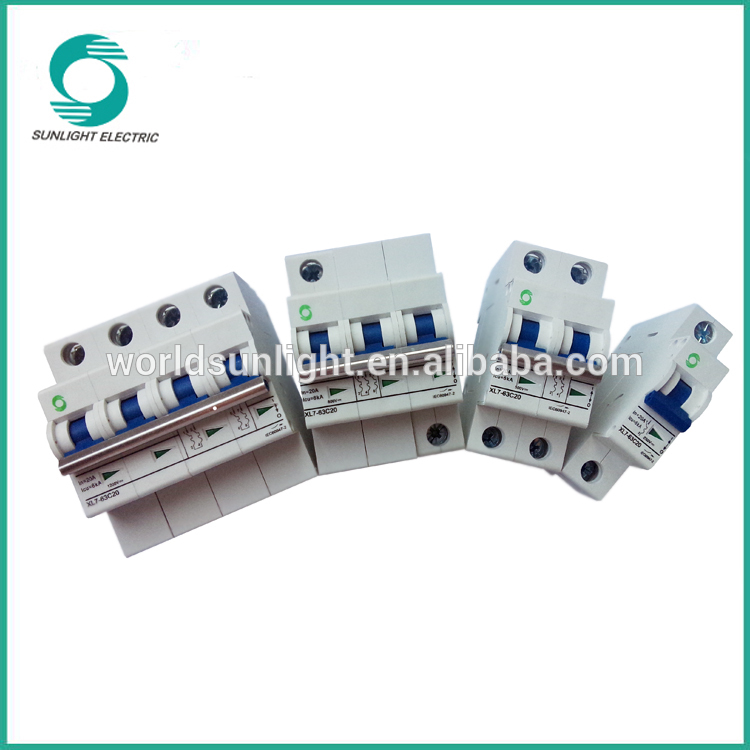

Product Name : Solar system 6kA 250V 500V 800V 1000V 1200V 1P 2P 3P 4P mini miniature 25 amp mcb dc circuit breaker
Type: DC Mini Circuit Breaker
Related PV product:
 | | ||
| |
Solar system 6kA 250V 500V 800V 1000V 1200V 1P 2P 3P 4P mini miniature 25 amp mcb dc circuit breaker"s Application
1 XL7-63 Series DC Miniature Circuit Breaker, apply to rating current 63A or less, Direct current rating voltage can be up to 1200V.
2 It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment.
3 It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields. In present China, our products in the case grade rating voltage is highest compared to the same products.
Standard for Solar system 6kA 250V 500V 800V 1000V 1200V 1P 2P 3P 4P mini miniature 25 amp mcb dc circuit breaker
Products passed IEC 60947-2/IEC 60898-2/GB10963.2/GB14048.2 standard, SAA,CCC, CE, ISO9001
Model description for Solar system 6kA 250V 500V 800V 1000V 1200V 1P 2P 3P 4P mini miniature 25 amp mcb dc circuit breaker
|
Solar system 6kA 250V 500V 800V 1000V 1200V 1P 2P 3P 4P mini miniature 25 amp mcb dc circuit breaker"s Technical data
| Item | DC MINI CIRCUIT BREAKER | |||
| Code | XL7-63 | |||
| Pole | 1P | 2P | 3P | 4P |
| Voltage | 250VDC | 500VDC | 800VDC | 1000VDC/1200VDC |
| Current | 25A | |||
| Standard | IEC 60947-2 IEC 60898-2 GB10963.2 GB14048.2 | |||
| Breaking Capacity | 6KA | |||
| Tripping curve | B curve: between 4 and 7 In C curve: between 7 and 15 In | |||
| Working Temperature | -25℃to +40℃ | |||
| Protection Degree | IP20 | |||
Quality certificate | CCC CE SAA | |||
| Mechanical life | With load: 10000 times;without load:20000 times | |||
| Dimension(W)X(H)X(D) | 18X80X71 | 36X80X71 | 54X80X71 | 72X80X71 |
| Installation | 35MM DIN RAIL | |||
| Accessory | YES | |||
| Installation Altitude | ≤2000M | |||
