1.Solar Energy PV DC circuit breaker
2.rated current:10 A
3.Rated Voltage: 500VDC
4.certificate: CE ISO9001 SAA CCC

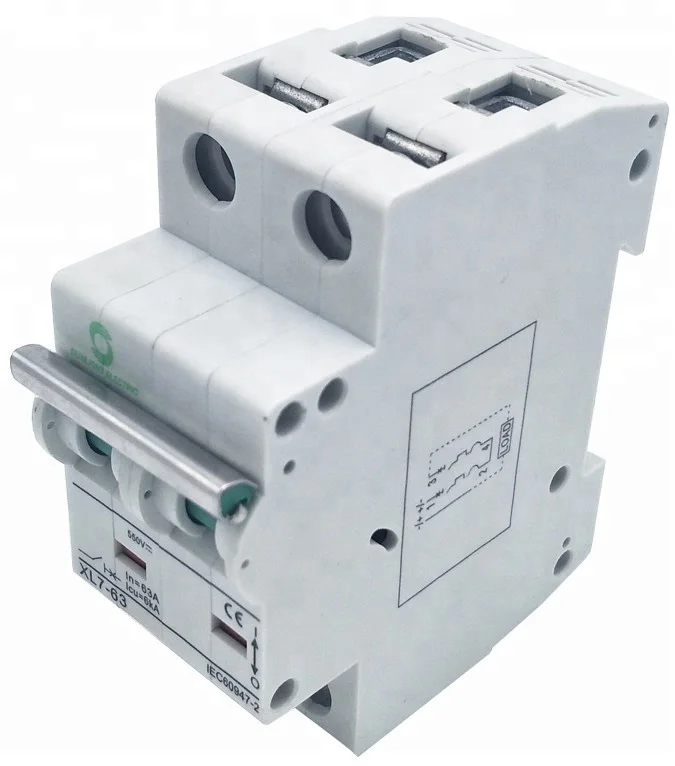

Product Name : Solar system Non-polarity DIN RAIL 6kA 2P 10A dc c10 circuit breaker / mcb
Type: DC Mini Circuit Breaker
Related PV product:
 | | ||
| |
Solar system Non-polarity DIN RAIL 6kA 2P 10A dc c10 circuit breaker / mcb"s Application
1 XL7-63 Series DC Miniature Circuit Breaker, apply to rating current 63A or less, Direct current rating voltage can be up to 1200V.
2 It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment.
3 It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields. In present China, our products in the case grade rating voltage is highest compared to the same products.
Standard for Solar system Non-polarity DIN RAIL 6kA 2P 10A dc c10 circuit breaker / mcb
Products passed IEC 60947-2/IEC 60898-2/GB10963.2/GB14048.2 standard, SAA,CCC, CE, ISO9001
Model description for Solar system Non-polarity DIN RAIL 6kA 2P 10A dc c10 circuit breaker / mcb
|
Solar system Non-polarity DIN RAIL 6kA 2P 10A dc c10 circuit breaker / mcb"s Technical data
| Item | DC MINI CIRCUIT BREAKER | |||
| Code | XL7-63 | |||
| Pole | 1P | 2P | 3P | 4P |
| Voltage | 250VDC | 500VDC | 800VDC | 1000VDC/1200VDC |
| Current | 10A | |||
| Standard | IEC 60947-2 IEC 60898-2 GB10963.2 GB14048.2 | |||
| Breaking Capacity | 6KA | |||
| Tripping curve | B curve: between 4 and 7 In C curve: between 7 and 15 In | |||
| Working Temperature | -25℃to +40℃ | |||
| Protection Degree | IP20 | |||
Quality certificate | CCC CE SAA | |||
| Mechanical life | With load: 10000 times;without load:20000 times | |||
| Dimension(W)X(H)X(D) | 18X80X71 | 36X80X71 | 54X80X71 | 72X80X71 |
| Installation | 35MM DIN RAIL | |||
| Accessory | YES | |||
| Installation Altitude | ≤2000M | |||
Characteristic Curve:
|
Solar system Non-polarity DIN RAIL 6kA 2P 10A dc c10 circuit breaker / mcb"s Dimension and Wiring diagram
Dimension
|
Wiring diagram
|
Solar system Non-polarity DIN RAIL 6kA 2P 10A dc c10 circuit breaker / mcb"s Pictures
|
Production flow for Solar system Non-polarity DIN RAIL 6kA 2P 10A dc c10 circuit breaker / mcb
|
Certification for Solar system Non-polarity DIN RAIL 6kA 2P 10A dc c10 circuit breaker / mcb
|
