SUNLIGHT/OEM 10x38 CE cylindrical cartridge thermal fuse
Product type: 10x38 CE cylindrical cartridge thermal fuse
Application: 10x38 CE cylindrical cartridge thermal fuse for the protection of solar phootovolatic enegry systems and PV
combiner boxes
Benefits: 1.Safety and protection
2.Simplicity of installation and usage
Product Parameters of 10x38 CE cylindrical cartridge thermal fuse
1. Technical parameters of 10x38 CE cylindrical cartridge thermal fuse
 |
Fuse model | Rated Voltage (V) | Rated Current (A) | Overall Size(mm) | Wasted Power(W) | |
gPV | Drawing 1 | D×L | |||
XLPV-series | DC 1000V | 1,2,3,4,5,6,8,10,12,15,20,25,30,32 | 1 | 10.3±0.1× 38±0.6 | ≤4.5 |
2. Cold Resistance and Power Dissipation of 10x38 CE cylindrical cartridge thermal fuse
Fuse Model | Rated Current (A) | Cold Resistance (mΩ) | 0.7times Power Dissipation | 1.0times Power Dissipation |
XLPV-series | 1 | 1603 | 0.60 | 1.30 |
2 | 243 | 0.67 | 1.36 | |
3 | 112 | 0.70 | 1.42 | |
4 | 65.55 | 0.78 | 1.58 | |
5 | 48.03 | 0.90 | 1.83 | |
6 | 36.59 | 0.90 | 1.84 | |
8 | 20.81 | 0.91 | 1.86 | |
10 | 14.87 | 1.02 | 2.08 | |
12 | 10.98 | 1.29 | 2.62 | |
15 | 9.36 | 1.44 | 2.95 | |
20 | 5.57 | 1.53 | 3.12 | |
25 | 4.22 | 1.62 | 3.46 | |
30 | 3.47 | 1.85 | 3.78 | |
32 | 3.00 | 1.97 | 3.94 |
3. Test Mode of 10x38 CE cylindrical cartridge thermal fuse
Fusing Time & Test Current of 10x38 CE cylindrical cartridge thermal fuse
“gPV” fuse-link’s rated current (A) | fusing time (h) | test current | |
Inf | If | ||
In≤63 | 1 | 1.13In | 1.45In |
63<In≤160 | 2 | ||
160<In≤400 | 3 | ||
In>400 | 4 | ||
4. Test-current Characteristics of 10x38 CE cylindrical cartridge thermal fuse
|

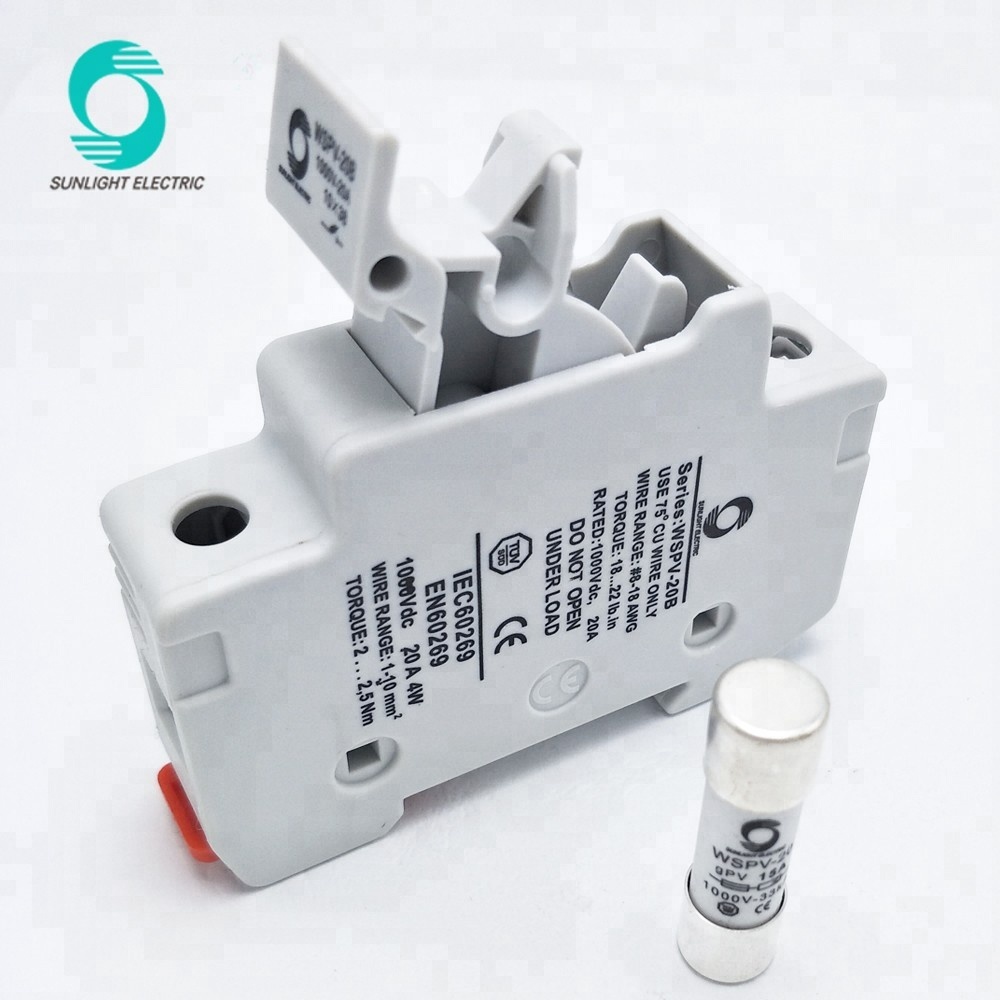

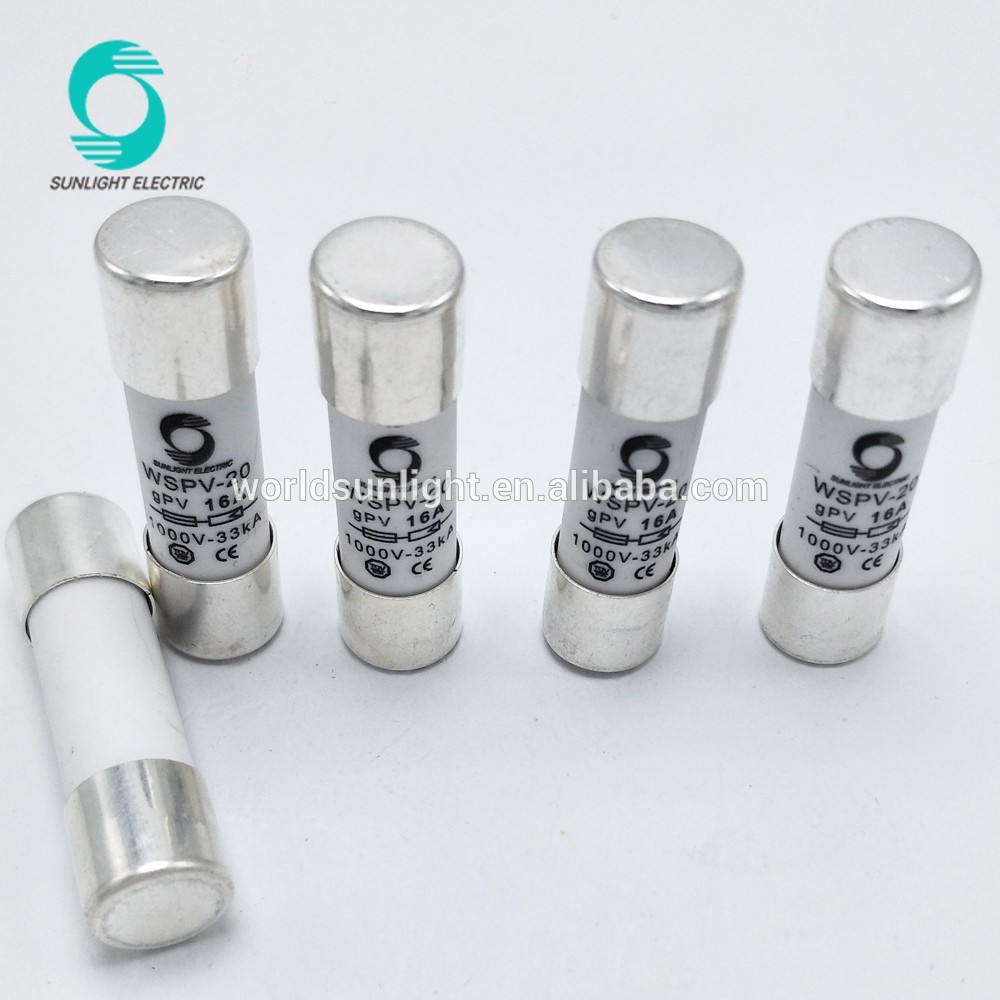

Product Display of 10x38 CE cylindrical cartridge thermal fuse
|
Product Details of 10x38 CE cylindrical cartridge thermal fuse
|
|
10x38 CE cylindrical cartridge thermal fuse
