American,Japan,Germany Standard 1.5-6mm2 BV series brass terminal copper terminal insulated terminall
1. American,Japan,Germany Standard 1.5-6mm2 BV series brass terminal copper terminal insulated terminall Application
Made in China BV series fully insulated crimp receptable battery terminal connectors is applied for kinds of industrial and mining enterprises such as steel smelting,prtrochemical industry,electric power,electron ,railway,construction,airport, mine,stope,water supply and drain processing factory ,port,store,hotel and so on . And it is also for mating and maintenance fittings of device power and connectors imported from abroad. So it is a new generation ideal power supply unit . The products are sold to over 20 provinces,municipalities and autonomous regions in our country ,and sortheast Asia,European ,Americal and so on areas as well,they are quite enjoyed by clients.

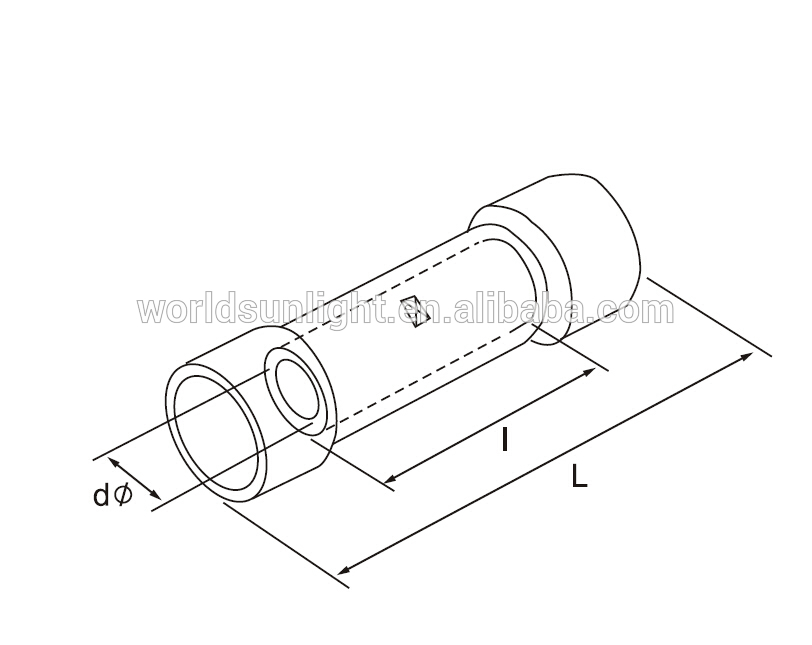

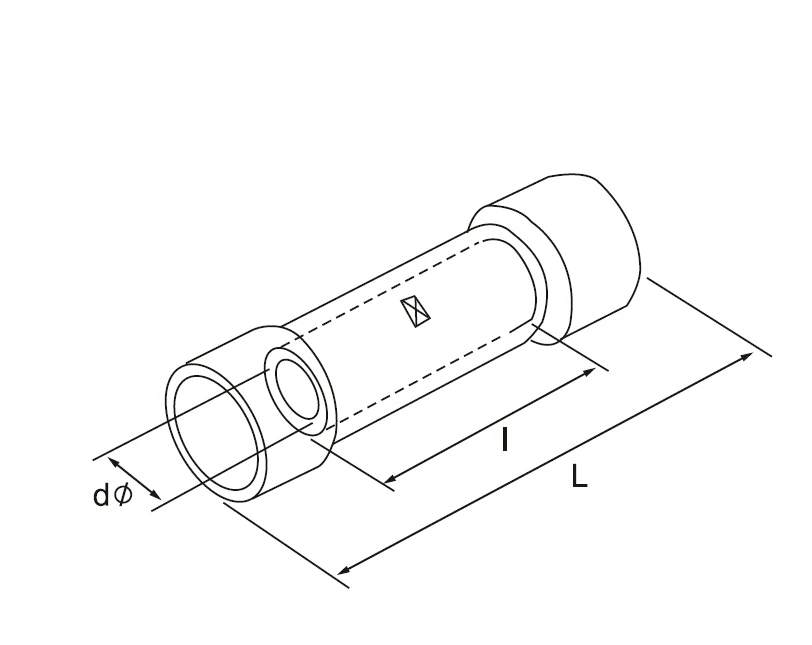

2. American,Japan,Germany Standard 1.5-6mm2 BV series brass terminal copper terminal insulated terminall Description and reference
 |
| material:pure copper insulating material:PVC | ||||||||
| Item No | Cable size | Dimension(mm) | Imax | Color | ||||
| A.W.G | mm2 | I | dφ | L | ||||
| BV 1.25 | 22-16 | 0.5-1.5 | 15 | 1.7 | 26 | 19A | red | |
| BV 2 | 16-14 | 1.5-2.5 | 15 | 2.3 | 26 | 27A | blue | |
| BV 5.5 | 12-10 | 4-6 | 15 | 3.4 | 26 | 48A | yellow | |
| BV 8 | #8 | 6-10 | 21 | 4.5 | 32 | 62A | red | |
| BV 14 | #6 | 10-16 | 26 | 5.8 | 42 | 88A | blue | |
| BV 22 | #4 | 16-25 | 29 | 7.7 | 50 | 115A | yellow | |
| BV 38 | #2 | 35-50 | 32 | 9.4 | 55 | 160A | red | |
| metal material:pure copper insulating material:PVC | |||||||
| Item NO | cable size | dimension(mm) | Imax | color | |||
| A.W.G | mm2 | I | dφ | L | |||
| PVT 1.25 | 22-16 | 0.5-1.5 | 8 | 1.7 | 16 | 19A | red |
| PVT 2 | 16-14 | 1.5-2.5 | 8 | 2.3 | 16 | 27A | blue |
| PVT 5.5 | 12-10 | 4-6 | 8 | 3.4 | 20.5 | 48A | yellow |
3. American,Japan,Germany Standard 1.5-6mm2 BV series brass terminal copper terminal insulated terminall Category Introduction
|
|

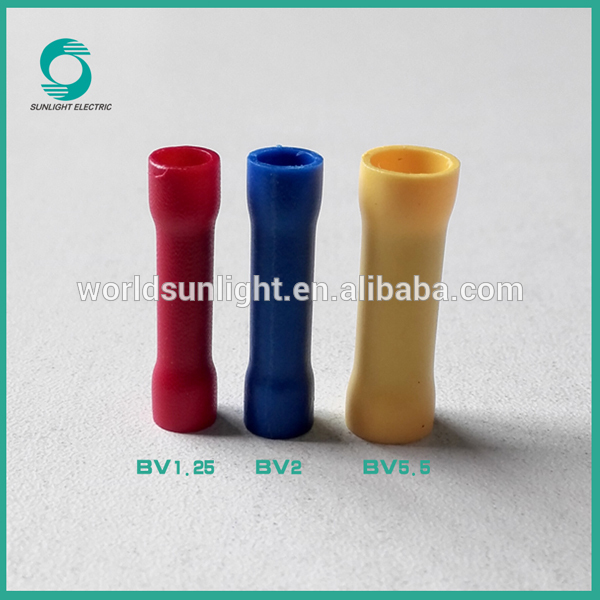

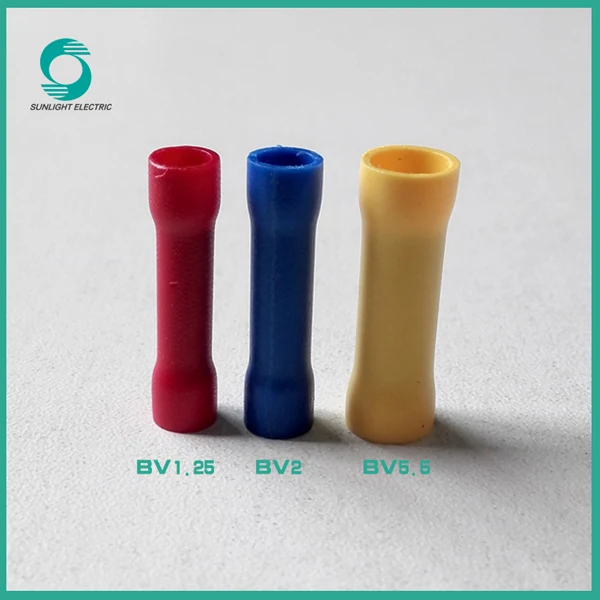

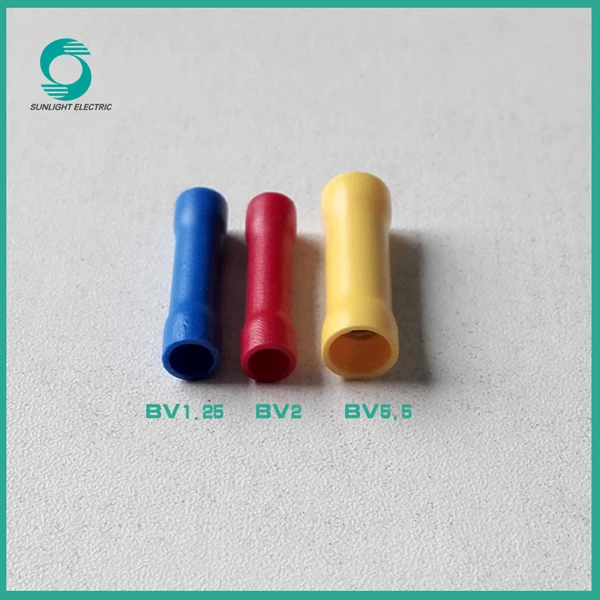

4. American,Japan,Germany Standard 1.5-6mm2 BV series brass terminal copper terminal insulated terminall Pictures
|
|
|
5. American,Japan,Germany Standard 1.5-6mm2 BV series brass terminal copper terminal insulated terminall other types Pictures
|
We also can supply: High quality terminal,connector and cable lugs
Types available:
RV series, RNB series, SV series, SNB series, V series, PTV series, PTN series, MPD series, FRD series, FDD series, MDD series, FDFD series, DBV series, PBDD series, BV series, BN series, E series, TE series, EN series, SC cable lugs series, GTY series
( 1 ) CAPG Copper-aluminium Aluminium Cambined Clamp
( 2 ) Insulation spade terminals
( 3 ) Non-insulation spade terminals
( 4 ) Terminals insulation
( 5 ) Insulated ring terminals
( 6 ) RNB non-insulated ring terminals
( 7 ) Insulated blade terminals
( 8 ) Insulated pin terminals
( 9 ) Insulated male buttet disconnectors
(10) Insulated famale disconnectors
(11) Insulated male disconnectors
(12) Fully vinyl Insulated disconnectors
(13) Insulated vinyl butt connectors
(14) Non-insulated cord end terminals
(15) Crewel tube pre-insulating terminals
(16) Insulated cord end terminals
(17) Wire connectors
(18) Male and female full-insulating joints
(19) Flag shape female insulated joints
(20) Long fully insulated middle joints
(21) Water proof: Heat shrink butt connectors
(22) Among the long shape entire insulation attaches
(23) Bullet-shaped male and female-insulating joins
(24) Fast connecting joints
(25) DTL Copper-aluminium connecting terminals
(26) DT(G) JG Copper connecting terminals
(27) GT Connecting tube (passing through)
(28) OT Copper open connecting nose
(29) SC Copper terminals
(30) GTY Copper connecting tube
(31) C45 Plug-in needle
(32) JT JTL JL Copper,copper-aluminium,aluminium jointing clamp
(33) PC Self-locking nylon cable ties
6. American,Japan,Germany Standard 1.5-6mm2 BV series brass terminal copper terminal insulated terminall Certificates
|
7. American,Japan,Germany Standard 1.5-6mm2 BV series brass terminal copper terminal insulated terminall Packing
|
8. American,Japan,Germany Standard 1.5-6mm2 BV series brass terminal copper terminal insulated terminall Shipping
9. American,Japan,Germany Standard 1.5-6mm2 BV series brass terminal copper terminal insulated terminall After sale services
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested & the reasonable price will be provided to you upon
receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit to our company and technology communication.
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing
of Terminal products.
We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS, ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well
received by our customers from all over the world.
|
|
