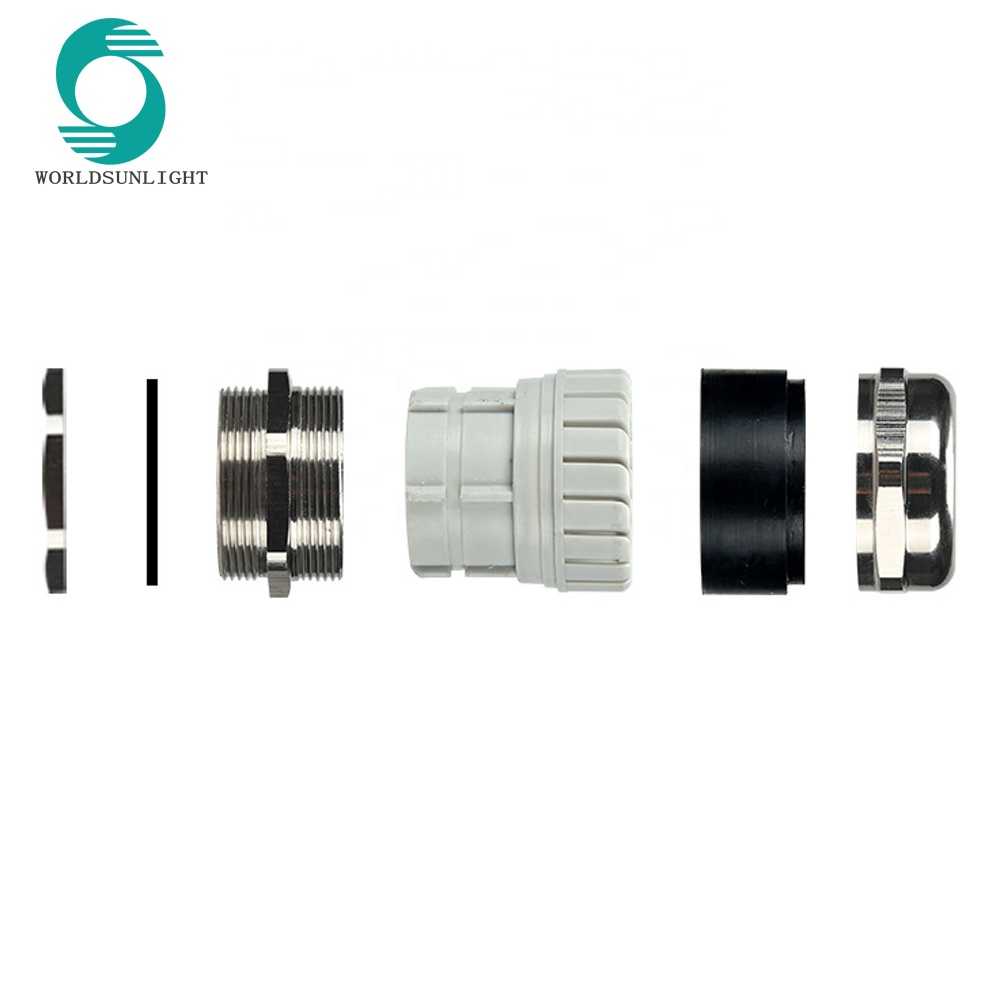

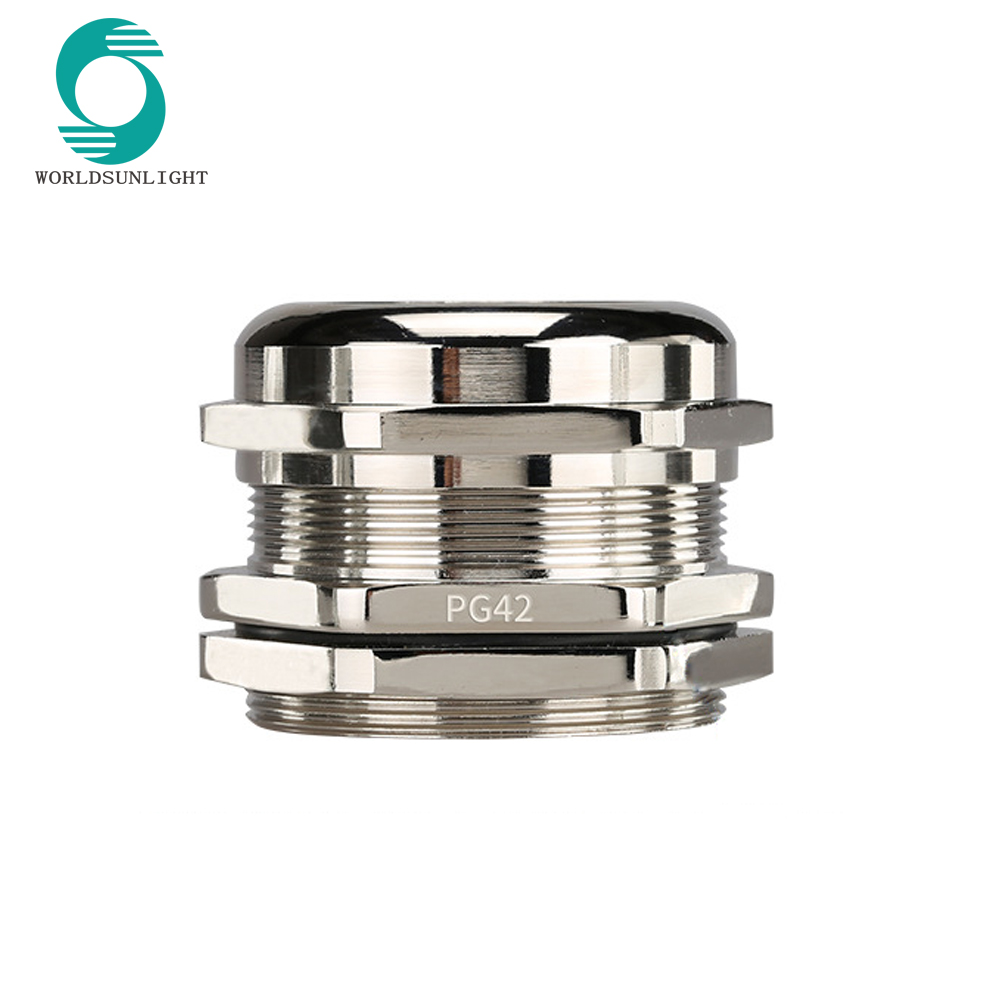

SUNLIGHT/OEM nickel plated brass gland plate
Product Descrption of nickel plated brass gland plate
Material: Body: brass nickel-plated;
Claw: PA;
Sealing and O-ring: NBR;
Approvals: CE, SGS
Characteristics: IP68 to 10 bar
Color: Metallic
Working temperature: -40 °C to 100 °C
Thread length: Standard thread type is used for the equipment which has inner thread or for the board.
Longer thread type is used for the thick board. Thread stretched can be customized.
Function: Extremely easy installation, simply insert cable through the assembled gland and tighten gland
locknut until cable is secured. These products are designed to withstand water, dust, salt,
acid-base, alcohol, oil and common solvent.
Instruction: Matching products of cables. Used to tighten the cables and joint to another equipments or insert
to electric equipments with inner thread interfaces.
Variations: OEM is available. Welcome to inquire.
Detailed Date of nickel plated brass gland plate
 |

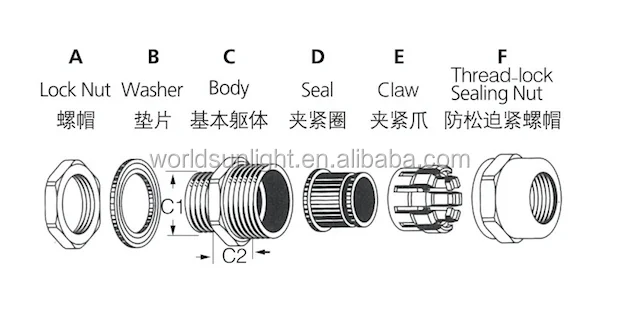

Size of nickel plated brass gland plate
|
Model | Cable Range(mm) | Thread O.D. AG(mm) | Thread Length GL(mm) | Spanner Size(mm) |
PG7 | 3-6.5 | 12.5 | 6 | 14 |
PG7 | 2-5 | 12.5 | 6 | 14 |
PG9 | 4-8 | 15.2 | 7 | 17 |
PG9 | 2-6 | 15.2 | 7 | 17 |
PG11 | 5-10 | 18.6 | 7 | 20 |
PG11 | 3-7 | 18.6 | 7 | 20 |
PG13.5 | 6-12 | 20.4 | 7.5 | 22 |
PG13.5 | 5-9 | 20.4 | 7.5 | 22 |
PG16 | 10-14 | 22.5 | 7.5 | 24 |
PG16 | 7-12 | 22.5 | 7.5 | 24 |
PG21 | 13-18 | 28.3 | 8 | 30 |
PG21 | 9-16 | 28.3 | 8 | 30 |
PG29 | 18-25 | 37 | 9 | 40 |
PG29 | 13-20 | 37 | 9 | 40 |
PG36 | 22-32 | 47 | 9 | 50 |
PG36 | 20-26 | 47 | 9 | 50 |
PG42 | 32-38 | 54 | 10 | 57 |
PG42 | 25-31 | 54 | 10 | 57 |
PG48 | 37-44 | 59.3 | 11 | 64 |
PG48 | 29-35 | 59.3 | 11 | 64 |
Model | Cable Range (mm) | Thread O.D. AG (mm) | Thread Length GL (mm) | Spanner Size (mm) |
M 12 x 1.5 | 3-6.5 | 12 | 6 | 14 |
M 12 x 1.5 | 2-5 | 12 | 6 | 14 |
M 16 x 1.5 | 4-8 | 16 | 7 | 17 |
M 16 x 1.5 | 2-6 | 16 | 7 | 17 |
M 18 x 1.5 | 5-10 | 18 | 7 | 20 |
M 18 x 1.5 | 3-7 | 18 | 7 | 20 |
M 20 x 1.5 | 6-12 | 20 | 7.5 | 22 |
M 20 x 1.5 | 5-9 | 20 | 7.5 | 22 |
M 22 x 1.5 | 10-14 | 22 | 7.5 | 24 |
M 22 x 1.5 | 7-12 | 22 | 7.5 | 24 |
M 25 x 1.5 | 13-18 | 25 | 8 | 30 |
M 25 x 1.5 | 9-16 | 25 | 8 | 30 |
M 32 x 1.5 | 16-21 | 32 | 9 | 40 |
M 32 x 1.5 | 13-18 | 32 | 9 | 40 |
M 40 x 1.5 | 22-32 | 40 | 9 | 50 |
M 40 x 1.5 | 20-26 | 40 | 9 | 50 |
M 50 x 1.5 | 32-38 | 50 | 10 | 57 |
M 50 x 1.5 | 25-31 | 50 | 10 | 57 |
M 63 x 1.5 | 37-44 | 63 | 11 | 64 |
M 63 x 1.5 | 29-35 | 63 | 11 | 64 |

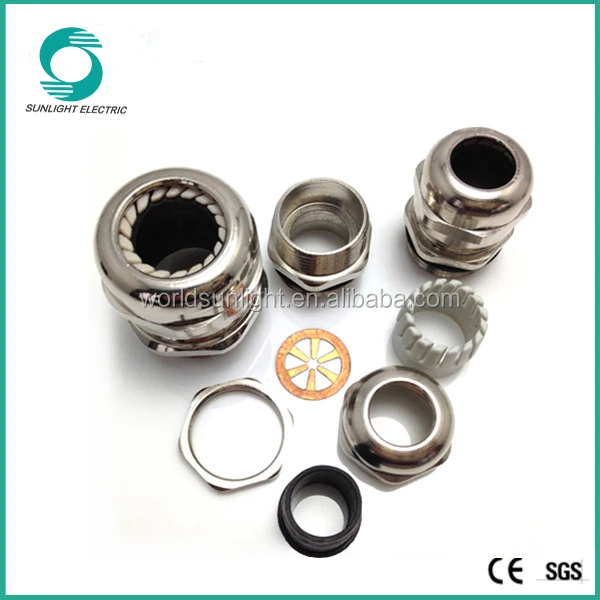

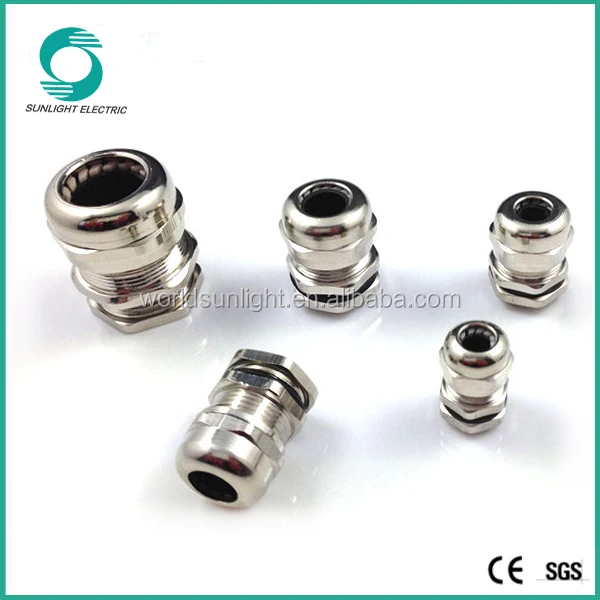

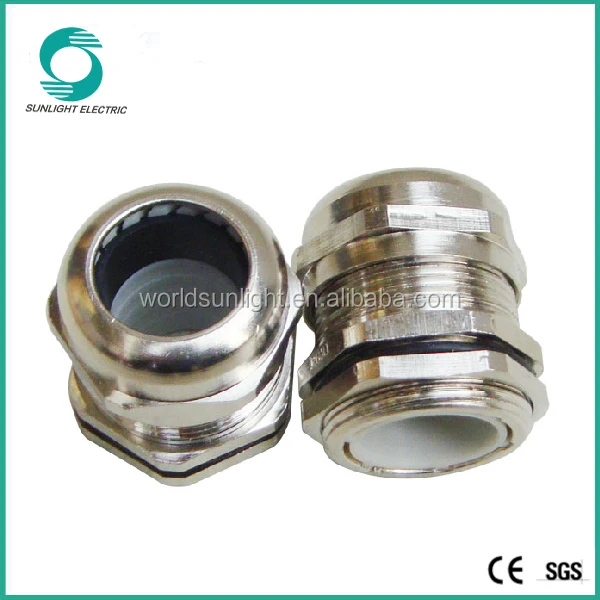

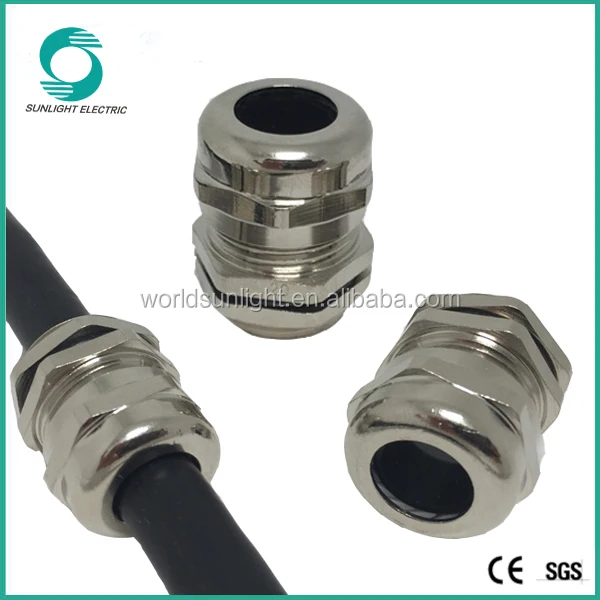

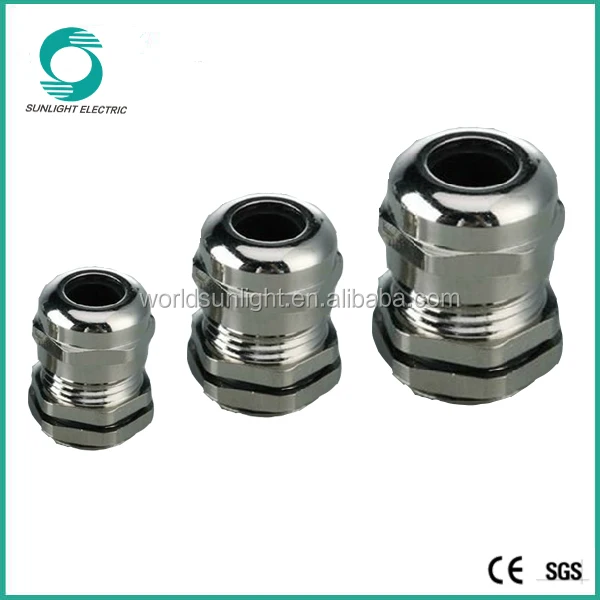

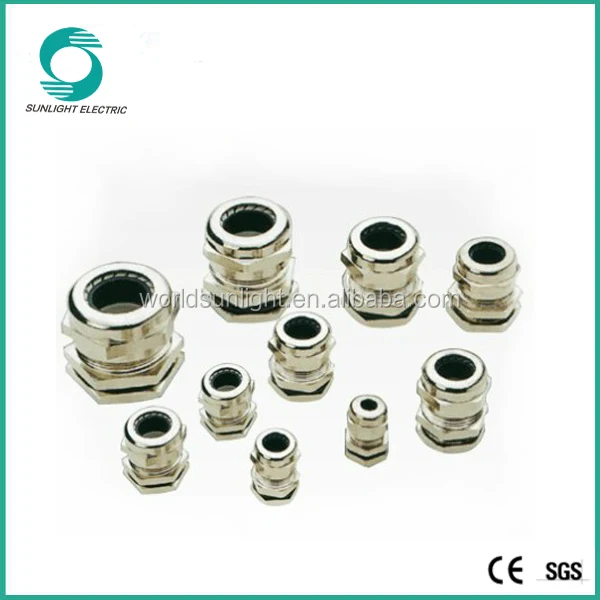

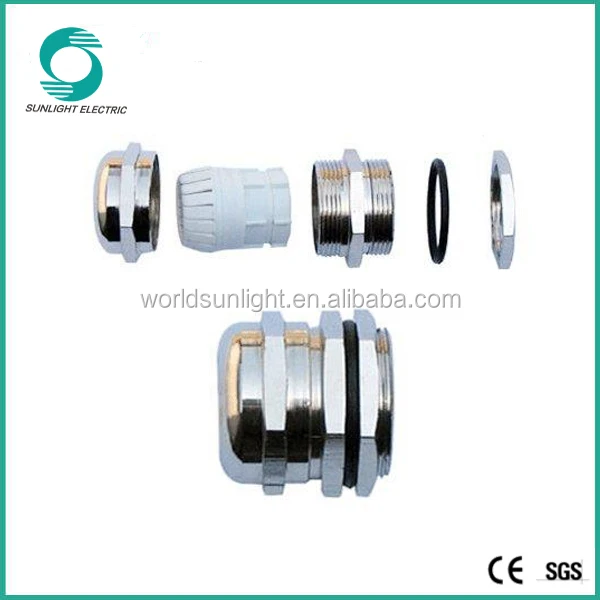

Picture of nickel plated brass gland plate
|
