RoHS approval LW30 series 3P or 4P 20A 25A 32A 40A 63A 80A 100A air conditioner rotary switch
Click on the image to view the original image
Product： views：6RoHS approval LW30 series 3P or 4P 20A 25A 32A 40A 63A 80A 100A air conditioner rotary switch
Branch： Sunlight/OEM
Type： rotary switch
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 06:05
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Sunlight/OEM
Model Number:
LW30
Max. Current:
100A
Max. Voltage:
440V
Mechanical Life:
100000 Times
Certification:
RoHS
Type:
rotary switch
Color:
Red,yellow
Application:
Instrument
Electric life:
30000 times
Rated Current:
20/25/32/40/63/80/100A
Handle type:
can be customized
Number of layers:
can be customized
Number of poles:
3P or 4P
Feature:
Variety
Supply Ability
Supply Ability:
2000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
RoHS approval LW30 series 3P or 4P 20A 25A 32A 40A 63A 80A 100A air conditioner rotary switch standard exporting cartons or can be customized.
Port
Ningbo/shanghai
Lead Time:
Quantity(Pieces)1 - 100 >100
Est. Time(days)7To be negotiated

RoHS approval LW30 series 3P or 4P 20A 25A 32A 40A 63A 80A 100A air conditioner rotary switch





Product Description



1. RoHS approval LW30 series 3P or 4P 20A 25A 32A 40A 63A 80A 100A air conditioner rotary switch application:

  LW30 series rotary switches applied to circuits of AC 50Hz with working voltave up to 440V and rated working current up to 100A.
  LW30 is suitable to control:air-conditioner,water pump and ventilating equipments,and AC motors with small power.
  LW30 series rotary switches have six current ratings:20A,25A,32A,40A,63A,80A and 100A.
  LW30 series has the finger protection terminals,which offers an extra advantage.
  LW30 series switches has Larger insulation distance,quick disconnectinvg response.And is a good choice For DC circuits.LW 30 has additional contact which enable us to install the contact separetely.
  LW30 series rotary switches switches comply with:GB/T 14048.3,and IEC 60947-3.





2. RoHS approval LW30 series 3P or 4P 20A 25A 32A 40A 63A 80A 100A air conditioner rotary switch features:

1) rated current:  20A,25A,32A,40A,63A,80A,100A
2) function: on and off
3) poles: 3P or 4P
4) comply with: GB/T 14048.3, and IEC 60947-3.

Diagram for the type of plate and handle:

Introdution for the type and meaning of products:





3. RoHS approval LW30 series 3P or 4P 20A 25A 32A 40A 63A 80A 100A air conditioner rotary switch technical parameter:

Description
LW30-25(20)
LW30-32
LW30-40
LW30-63
LW30-80
LW30-100
Rated thermal current
A
25(20)
32
40
63
80
100
Rated working voltage
V
240
440
240
440
240
440
240
440
240
440
240
440
Ie/Pe
AC-21A
A/KW
20/-
20/-
32/-
32/-
40/-
40/-
63/-
63/-
80/-
80/-
100/-
100/-
AC-22A
A/KW
20/-
20/-
32/-
32/-
40/-
40/-
63/-
63/-
80/-
80/-
100/-
100/-
AC-23A
A/KW
15/4
15/7.5
22/5.5
22/11
30/7.5
30/15
43/11
43/22
57/18.5
57/30
70/22
70/37
AC-3
A/KW
11.7/3
11.7/5.5
15/4
15/7.5
22/7.5
22/11
36/11
36/18.5
43/15
57/30
57/18.5
57/30

No.

Tech Parameters

requirement

1.

rated voltage

below 440V

2.

rated current

20A,25A,32A,40A,63A,80A,100A

3.

frequency

AC50HZ

4.

No.of poles

3P or 4P

5.

No.of layers

make as required with circuit diagram

6.

panel size

30*30mm,48*48mm,64*64mm,88*88mm

8.

Working temperature

-25°C~+40°C

REMARKS:the average temperature mustn’t be pass 35°C

9.

 Working height

 ≤2,000m

12.

 Mechanical life

 0.1*106times

13.

 Electrical life

 0.03*106times

14.

 Operative frequency

 120times/hour

15.

 transform angle

 30°/45°/60°/90°/120°/135°/150°

Selection of contact diagrams:





4. RoHS approval LW30 series 3P or 4P 20A 25A 32A 40A 63A 80A 100A air conditioner rotary switch dimension and installation:

Description

Dimensions(mm)

Installation(mm)

A

B

C

K

L

E

F

D1

D2

LW30-20

64

42

54

13.5

61

48

48

Φ10

Φ4.2

LW30-25

64

42

54

13.5

61

48

48

Φ10

Φ4.2

LW30-32

64

42

54

13.5

61

48

48

Φ10

Φ4.2

LW30-40

64

50

64

16

67

48

48

Φ10

Φ4.2

LW30-63

64

50

64

16

67

48

48

Φ10

Φ4.2

LW30-80

64

70

80

22.5

82

48

48

Φ10

Φ4.2

LW30-100

64

70

80

22.5

82

48

48

Φ10

Φ4.2

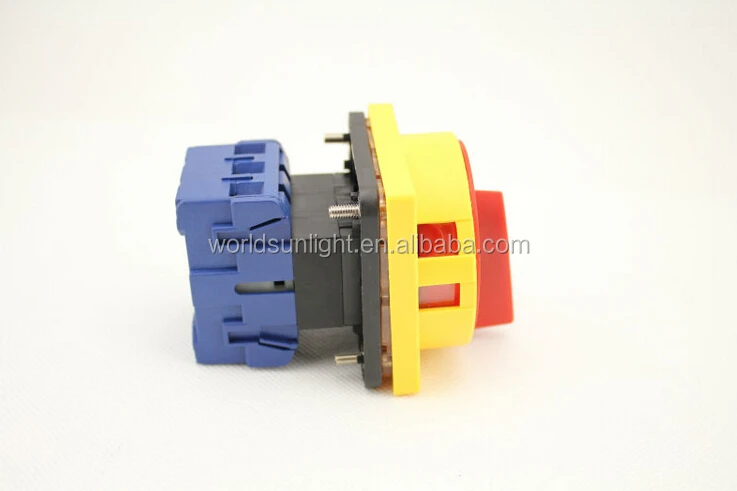

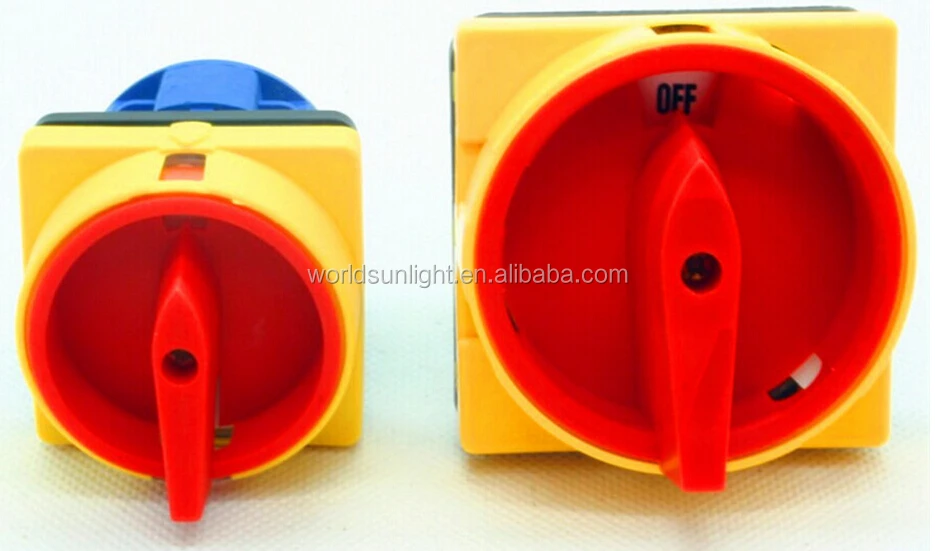

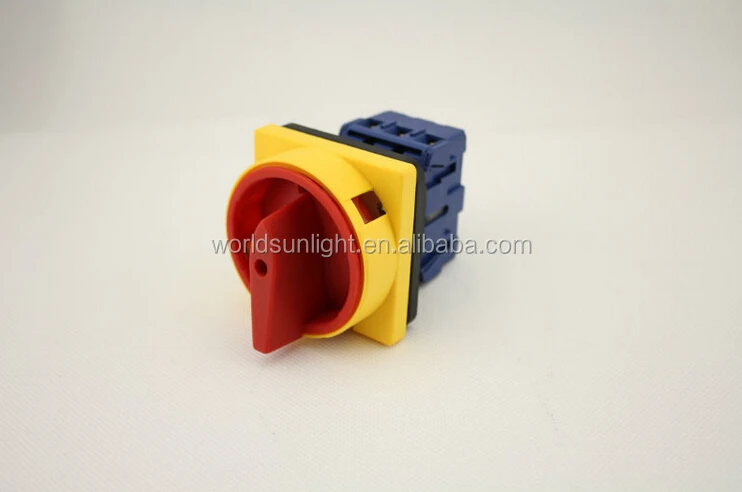

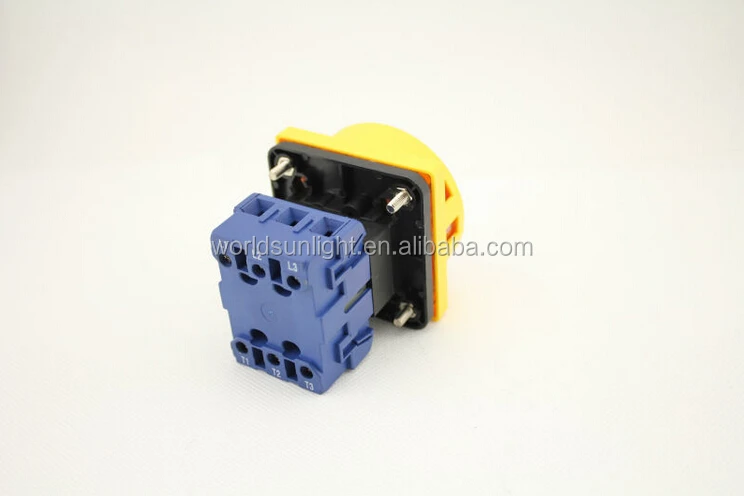

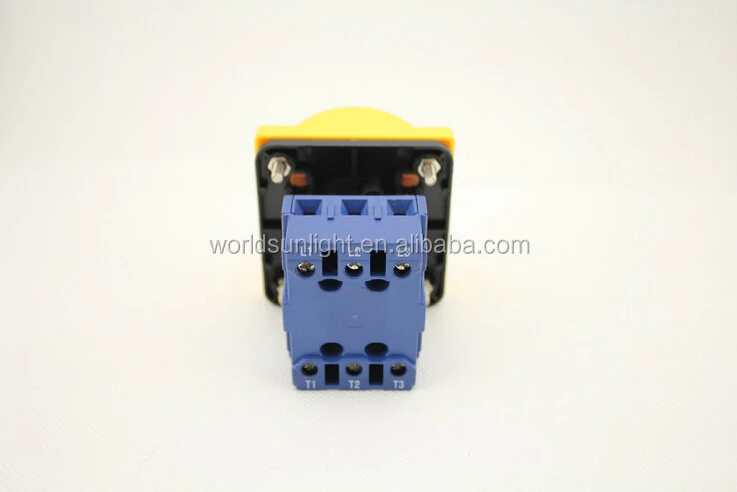

5. RoHS approval LW30 series 3P or 4P 20A 25A 32A 40A 63A 80A 100A air conditioner rotary switch pictures:





Packaging & Shipping



6. RoHS approval LW30 series 3P or 4P 20A 25A 32A 40A 63A 80A 100A air conditioner rotary switch packaging:

Packaging Details: Standard export packaging, also can do as customers" order
 Delivery Detail: 3-15 days(depend on your order quantity)
