SUNLIGHT/OEM PG7 explosion proof cable gland
Product Descrption of PG7 explosion proof cable gland
Material: Adopting nylon PA66 certificated by UL
Weather strip: Nitrile butadiene rybber(NBR), Weathering-resistance rubber(EPDM)
Working temperature: -40 °C to 100 °C in static state, instantaneous heat resistance up to 120 °C;
-20 °C to 80°C in dynamic state, instantaneous heat resistance up to 100 °C
Characteristics: IP68(Rotate the part, and use O ring)
Color: Black(RAL9005), light grey(RAL7035), as well as special colors that can be designed at request
Thread length: Standard thread type is used for the equipment which has inner thread or for the board.
Longer thread type is used for the thick board.
Function: Extremely easy installation, simply insert cable through the assembled gland and tighten gland
locknut until cable is secured. These products are designed to withstand water, dust, salt,
acid-base, alcohol, oil and common solvent.
Size of PG7 explosion proof cable gland
 |
Thread | Cable Range | AG(mm) | Panel Mounting Hole (mm)
| GL(mm) | H(mm) | Spanner(mm) | |
Min.(mm) | Max.(mm) | ||||||
PG7 | 3 | 6.5 | 12.5 | 12.7 | 8 | 22 | 16 |
PG7 | 2 | 5 | 12.5 | 12.7 | 8 | 22 | 16 |
PG9 | 4 | 8 | 15.2 | 15.4 | 8 | 26 | 19 |
PG9 | 2 | 6 | 15.2 | 15.4 | 8 | 26 | 19 |
PG11 | 5 | 10 | 18.6 | 18.8 | 8 | 27 | 22 |
PG11 | 3 | 7 | 18.6 | 18.8 | 8 | 27 | 22 |
PG13.5 | 6 | 12 | 20.4 | 20.6 | 9 | 28 | 24 |
PG13.5 | 5 | 9 | 20.4 | 20.6 | 9 | 28 | 24 |
PG16 | 10 | 14 | 22.5 | 22.7 | 10 | 30 | 27 |
PG16 | 7 | 12 | 22.5 | 22.7 | 10 | 30 | 27 |
PG19 | 12 | 15 | 24 | 24.2 | 10 | 30 | 27/28 |
PG19 | 10 | 12 | 24 | 24.2 | 10 | 30 | 27/28 |
PG21 | 13 | 18 | 28.3 | 28.5 | 10 | 35 | 33 |
PG21 | 9 | 16 | 28.3 | 28.5 | 10 | 35 | 33 |
PG25 | 16 | 21 | 30 | 30.2 | 11 | 34 | 35/36 |
PG25 | 13 | 18 | 30 | 30.2 | 11 | 34 | 35/36 |
PG29 | 18 | 25 | 37 | 37.2 | 12 | 40 | 41/42 |
PG29 | 13 | 20 | 37 | 37.2 | 12 | 40 | 41/42 |
PG36 | 22 | 32 | 47 | 47.2 | 14 | 48 | 52/53 |
PG36 | 20 | 26 | 47 | 47.2 | 14 | 48 | 52/53 |
PG42 | 32 | 38 | 54 | 54.2 | 14 | 49 | 60/61 |
PG42 | 25 | 31 | 54 | 54.2 | 14 | 49 | 60/61 |
PG48 | 37 | 44 | 59.3 | 59.5 | 15 | 50 | 64/65 |
PG48 | 29 | 35 | 59.3 | 59.5 | 15 | 50 | 64/65 |
PG63 | 42 | 50 | 70 | 70.2 | 28 | 60 | 77 |
PG63 | 32 | 40 | 70 | 70.2 | 28 | 60 | 77 |
Detailed Date of PG7 explosion proof cable gland
|

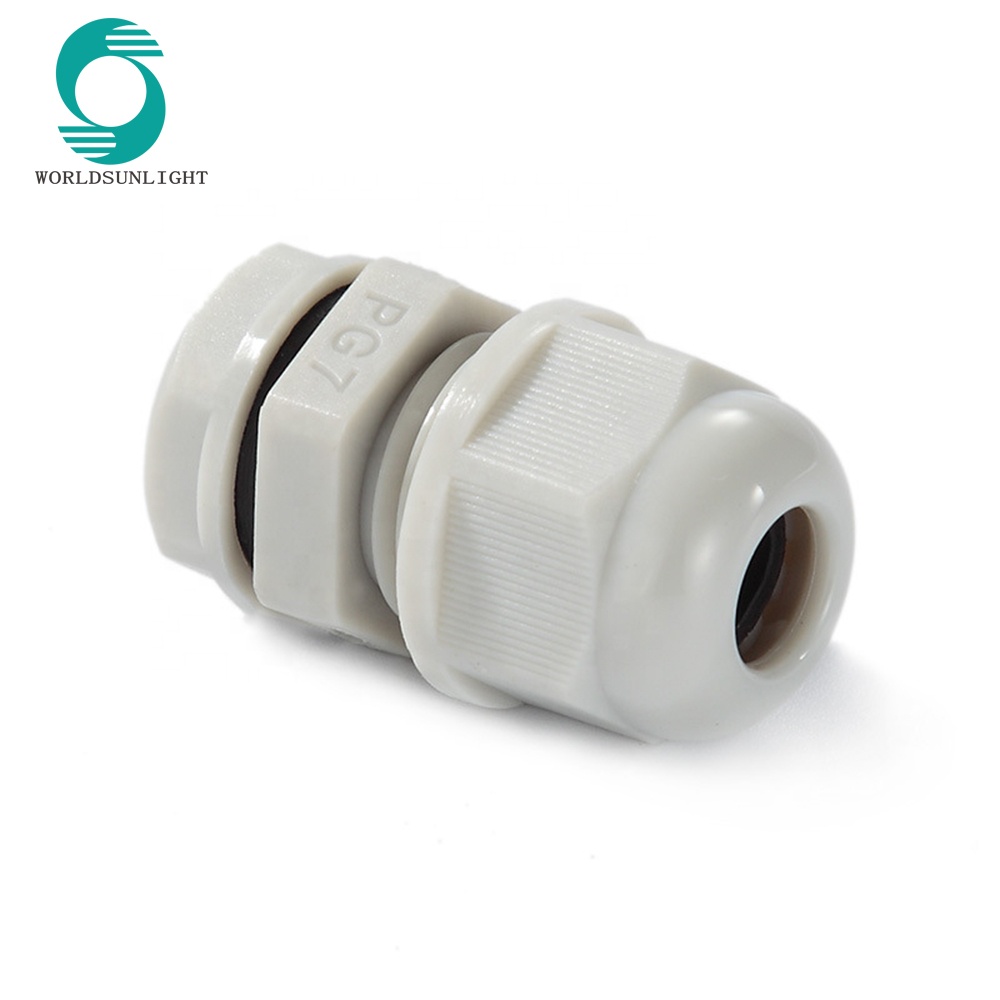

Picture of PG7 explosion proof cable gland
|
Please note that: More details about SUNLIGHT/OEM PG7 explosion proof cable gland, please e-mail me or visit our official website.
|
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing of cable gland.
These lines cover nylon nylon cable glands, metallic cable glands, metallic threaded plugs, sorew on wire connectors, safety-type wire joints, buckles type line protective cover, power line buckle, etc.
We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have SGS, CE, UL, ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well received by our customers from all over the world.
|
Q1: Are you a manufacturer of Nylon self-locking cable band ?
A1:yes. We have 3 years export exprience.
Q2: Delivery time?
A2:Will send the goods out within 72 hours after the order confirmed.
Q3: After Sales Service?
A3: if u have any questions about the receuved product, we will try our best to solve it.
Q4: Return the goods?
A4: If the product really has quality problem, we will accept return the old one and send again.
